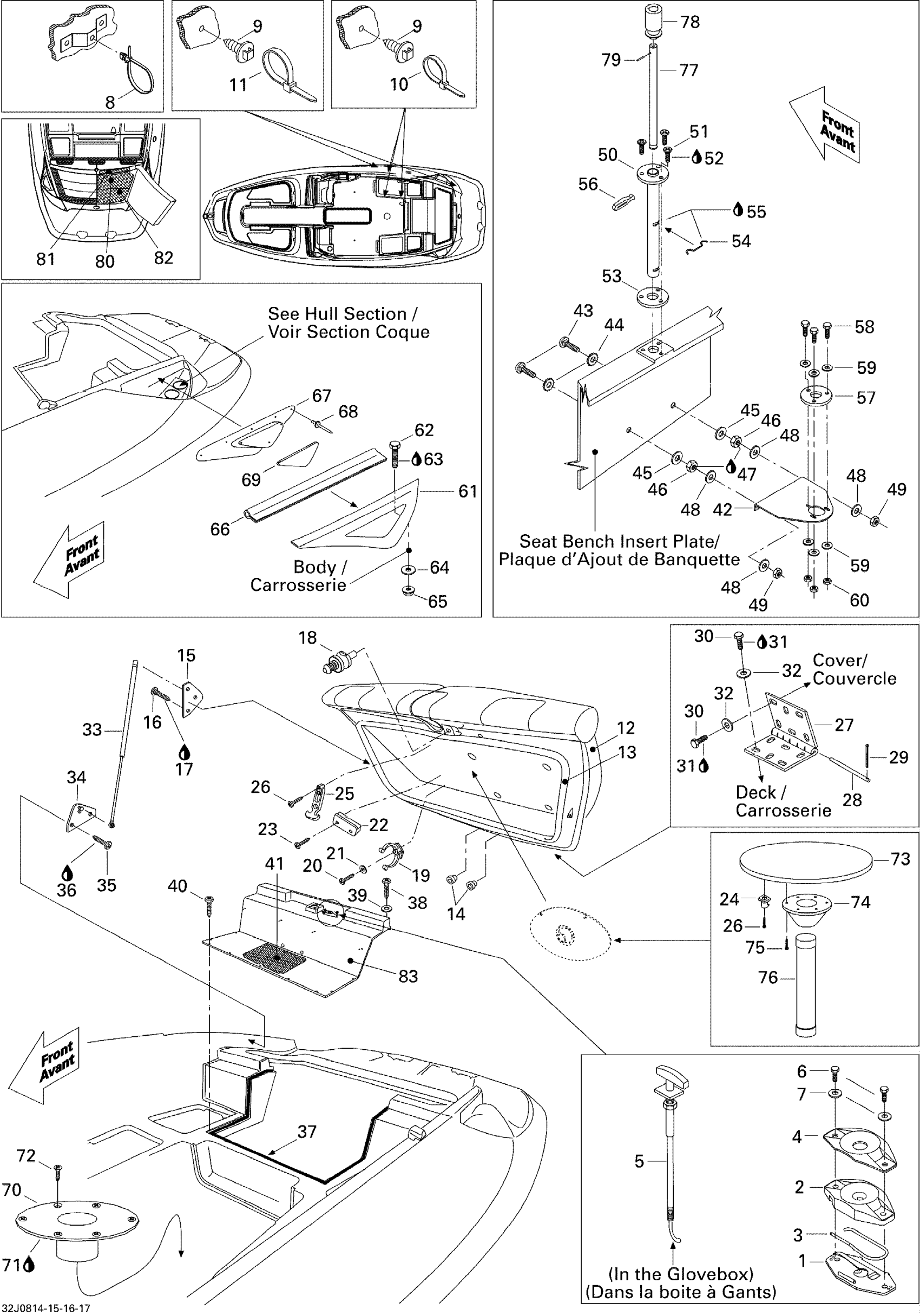

Sea-doo 230 Wake 430, 2008 Engine Compartment And Accessories Diagram

#

Description
Price

1

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

2

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

3

SPRING - Call your local BRP dealership

204070038

Unavailable

4

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

5

LATCH CABLE - Call your local BRP dealership

204072793

Unavailable

6

Hex. Screw M6 X 35

207163560

$1.49

7

Stainless Flat Washer M6

234061600

$0.33

8

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

9

Mount Dart

293730040

$1.04

10

Tie-Rap 180 mm

414115200

$0.11

11

Tie Wrap 368 mm

293750008

$1.04

12

Engine Cover

204073083

Unavailable

13

D-SEAL RUBBER - Call your local BRP dealership

204130083

Unavailable

14

GROMMET - Call your local BRP dealership

293720017

Unavailable

15

SHOCK BRACKET - Call your local BRP dealership

204073065

Unavailable

16

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49

18

Latch Stud

204130146

$154.99

19

POLE CLIP - Call your local BRP dealership | Challenger S

204070342

Unavailable

20

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

21

Flat Washer 4 mm

234040600

$0.55

22

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

23

TAPPING PAN SCREW M14 X 2 - Call your local BRP dealership

204100120

Unavailable

24

Not Available As Spare Parts

XXX

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

28

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

29

Cotter Pin M2.5 X 12

204070205

Unavailable

30

Hex. Screw M6 X 25

207162560

$1.47

31

Loctite 243, 10 ml

293800060

$21.49

32

Stainless Flat Washer M6

234061600

$0.33

33

GAS SHOCK - Call your local BRP dealership

204072798

Unavailable

34

SHOCK BRACKET - Call your local BRP dealership

204073065

Unavailable

35

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

Unavailable

36

Loctite 243, 10 ml

293800060

$21.49

37

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

38

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

39

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

40

Phillips Head Screw 1/4 - 20 X 1-1/2"

204100200

$4.00

41

Non Skid Carpet, White

204073174

Unavailable

42

FIXATION PLATE - Call your local BRP dealership

204072906

Unavailable

43

Elevator Bolt

204000130

Unavailable

44

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

45

Flat Washer M6, Stainless

234062600

$0.77

46

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

47

Loctite 271, 10 ml

293800005

$26.99

48

Flat Washer M6, Stainless

234062600

$0.77

49

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

50

FIX TUBE - Call your local BRP dealership

204072904

Unavailable

51

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

52

Loctite 243, 10 ml

293800060

$21.49

53

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

54

SPRING - Call your local BRP dealership

291001205

Unavailable

55

Synthetic Grease, 400 G

293550010

Unavailable

56

Windshield Latch

570023800

$4.49

57

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

58

Hex. Forming Screw M6 X 20

207162060

$1.29

59

Flat Washer M6, Stainless

234062600

$0.77

60

Hex. Elastic Stop Nut M6

232561600

$1.15

61

VENT COVER, PORT SIDE - Call your local BRP dealership | Wake

204072953

Unavailable

61

VENT COVER, STARBOARD - Call your local BRP dealership | Wake

204072955

Unavailable

62

Hex. Screw M6 X 35

207163560

$1.49

63

Loctite 243, 10 ml

293800060

$21.49

64

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

65

Hex. Elastic Stop Nut M6

232561600

$1.15

66

J-TRIM, RED - Call your local BRP dealership | Wake

204073003

Unavailable

67

VENT BASE, PORT SIDE - Call your local BRP dealership

204072801

Unavailable

67

VENT BASE, STARBOARD - Call your local BRP dealership

204072802

Unavailable

68

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

69

VENT INSERT, PORT SIDE - Call your local BRP dealership

204073029

Unavailable

69

VENT INSERT, STARBOARD - Call your local BRP dealership

204073035

Unavailable

70

Not Available As Spare Parts

XXX

Unavailable

71

Not Available As Spare Parts

XXX

Unavailable

72

Not Available As Spare Parts

XXX

Unavailable

73

Not Available As Spare Parts

XXX

Unavailable

74

Not Available As Spare Parts

XXX

Unavailable

75

Not Available As Spare Parts

XXX

Unavailable

76

Not Available As Spare Parts

XXX

Unavailable

77

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

78

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

79

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

80

Non Skid Carpet

204073183

Unavailable

81

Non Skid Carpet

204073184

Unavailable

82

Non Skid Carpet

204073186

Unavailable

83

Bench Insert Plate

204073187

Unavailable
