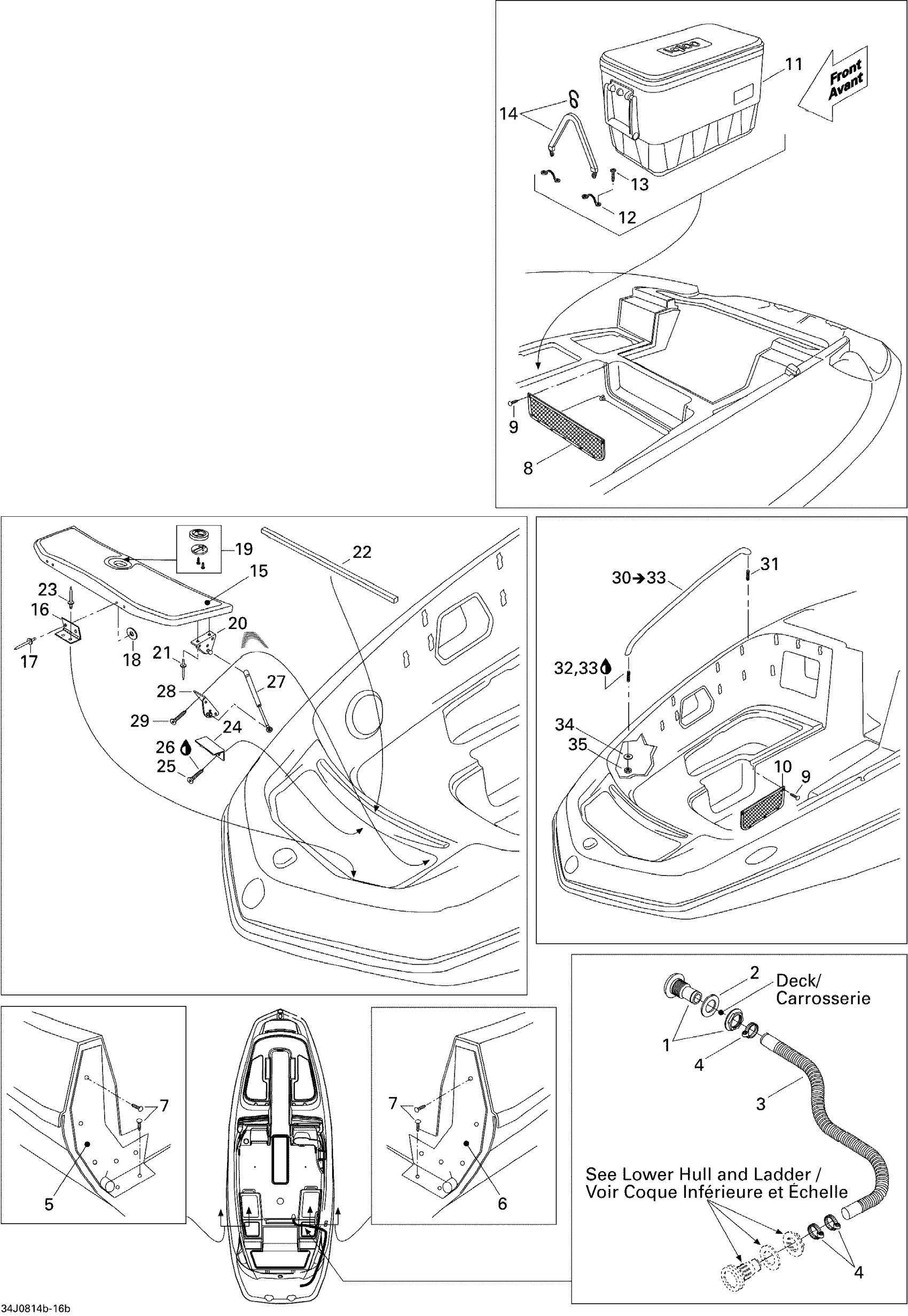

Sea-doo 230 Wake 430, 2008 Body And Accessories 2 Diagram

#

Description
Price

1

DRAIN FITTING - Call your local BRP dealership

204130163

Unavailable

2

GASKET - Call your local BRP dealership

292800106

Unavailable

3

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

4

Norma Clamp

293650074

$17.05

5

SOUNDWALL SEAL, PORT SIDE - Call your local BRP dealership

204072504

Unavailable

6

Soundwall Seal, Starboard

204072505

Unavailable

7

Black, Dart

293730006

$0.99

8

Storage Net, Rear

204072693

Unavailable

9

Black, Dart

293730006

$0.99

10

Storage Net, Port Side

204072692

Unavailable

10

Storage Net, Starboard

204072691

Unavailable

11

COOLER, 23 LITERS (25 QUARTS) - Call your local BRP dealership

204072662

Unavailable

12

STRAP EYE - Call your local BRP dealership

204071845

Unavailable

13

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

14

ICE CHEST STRAP - Call your local BRP dealership

204070905

Unavailable

15

ANCHOR LID - Call your local BRP dealership

204072988

Unavailable

16

HINGE - Call your local BRP dealership

204072601

Unavailable

17

Avdel Rivet 3/16"

293150037

$0.56

18

Flat Washer M5, Stainless

234051600

$0.77

19

Stainless Latch

204072838

$144.99

20

Shock Bracket

204073074

$27.99

21

Pop Rivet 3/16"

293150088

$0.99

22

Was 293200017 Neoprene Seal

219704365

$149.99

23

Avdel Rivet 3/16"

293150037

$0.56

24

KEEPER - Call your local BRP dealership

204070060

Unavailable

25

Phillips Screw M4 X 12

208641260

$1.03

26

Loctite 243, 10 ml

293800060

$21.49

27

GAS SHOCK - Call your local BRP dealership

204073017

Unavailable

28

Shock Bracket

204073074

$27.99

29

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

30

BOW RAIL ASS'Y - Call your local BRP dealership | Includes 27 to 28

204073416

Unavailable

30

Bow Rail Ass'y, Starboard | Includes 30 to 33

204073043

Unavailable

31

STUD 3/8?-16 X 2? - Call your local BRP dealership

204100050

Unavailable

32

Was 293800041 Loctite Primer 7649

219704458

$39.99

33

Loctite 271, 10 ml

293800005

$26.99

34

Flat Washer 10 mm, Stainless

234002600

$2.22

35

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable
