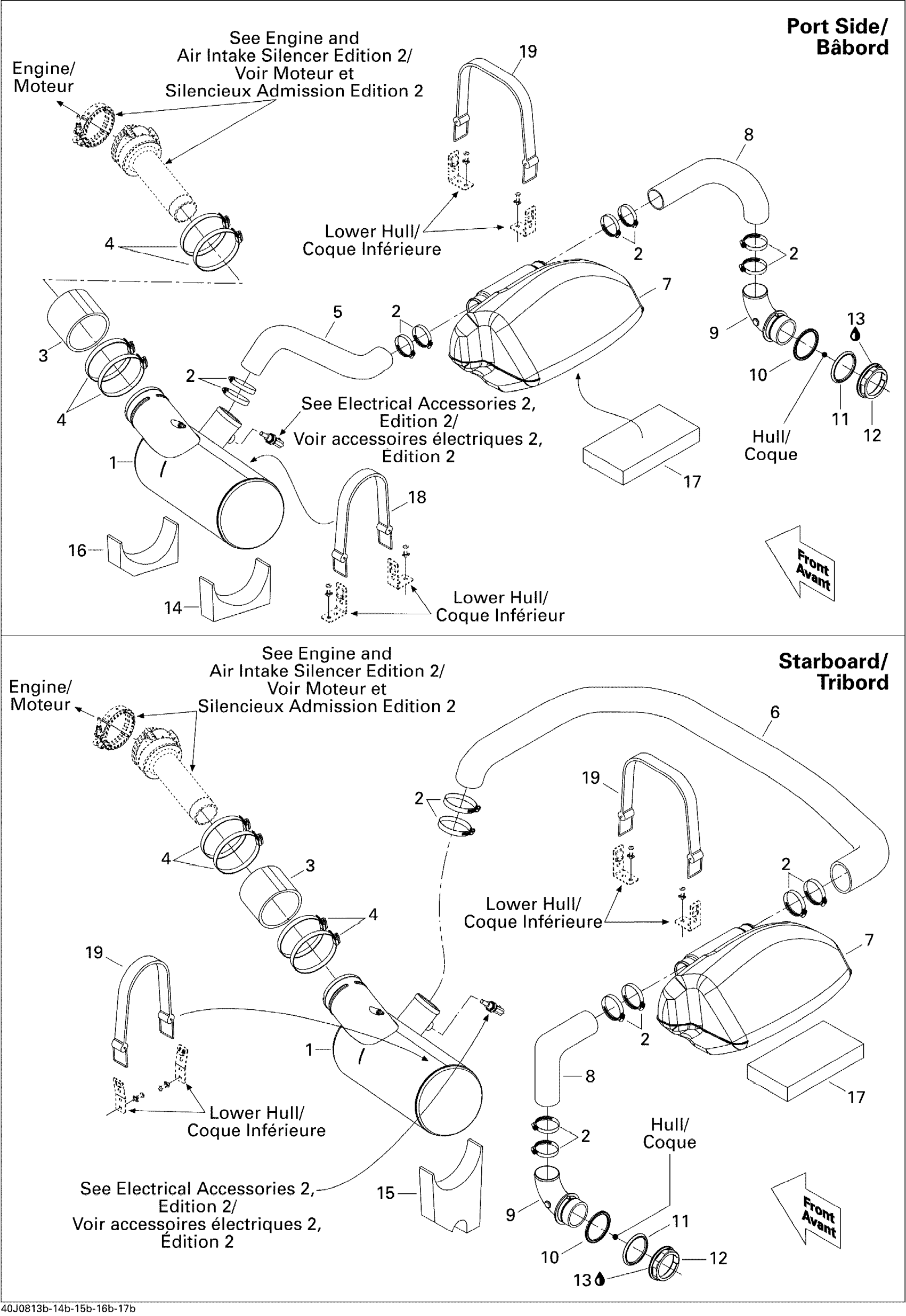

Sea-doo 230 Wake 430, 2008 Exhaust System Edition 2 Diagram

#

Description
Price

1

MUFFLER_EXHAUST - Call your local BRP dealership | Without Catalyst

274001350

Unavailable

2

Tridon Clamp

293650179

$8.81

3

Hose | Without Catalyst

274001348

$18.82

4

Tridon Clamp

293650054

$7.51

5

EXHAUST HOSE, PORT - Call your local BRP dealership

204340487

Unavailable

6

EXHAUST HOSE, STARBOARD - Call your local BRP dealership

204340486

Unavailable

7

RH Resonator

274001045

$176.12

8

EXHAUST HOSE - Call your local BRP dealership | Port Side

204340488

Unavailable

9

Exhaust Hose, Outlet

274001389

$23.37

10

GASKET - Call your local BRP dealership

293250041

Unavailable

11

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

12

Nut 72 mm

274000224

$12.17

13

Silicone Sealant 51388, 300 ml

296000309

$35.72

14

SUPPORT_EXHAUST - Call your local BRP dealership

204340502

Unavailable

15

MUFFLER SUPPORT - Call your local BRP dealership

204340503

Unavailable

16

MUFFLER SUPPORT - Call your local BRP dealership

204340506

Unavailable

17

MUFFLER SUPPORT - Call your local BRP dealership | With Catalyst

204340491

Unavailable

18

Retainer Strap

293850097

$9.26

19

STRAP - Call your local BRP dealership

293850022

Unavailable
