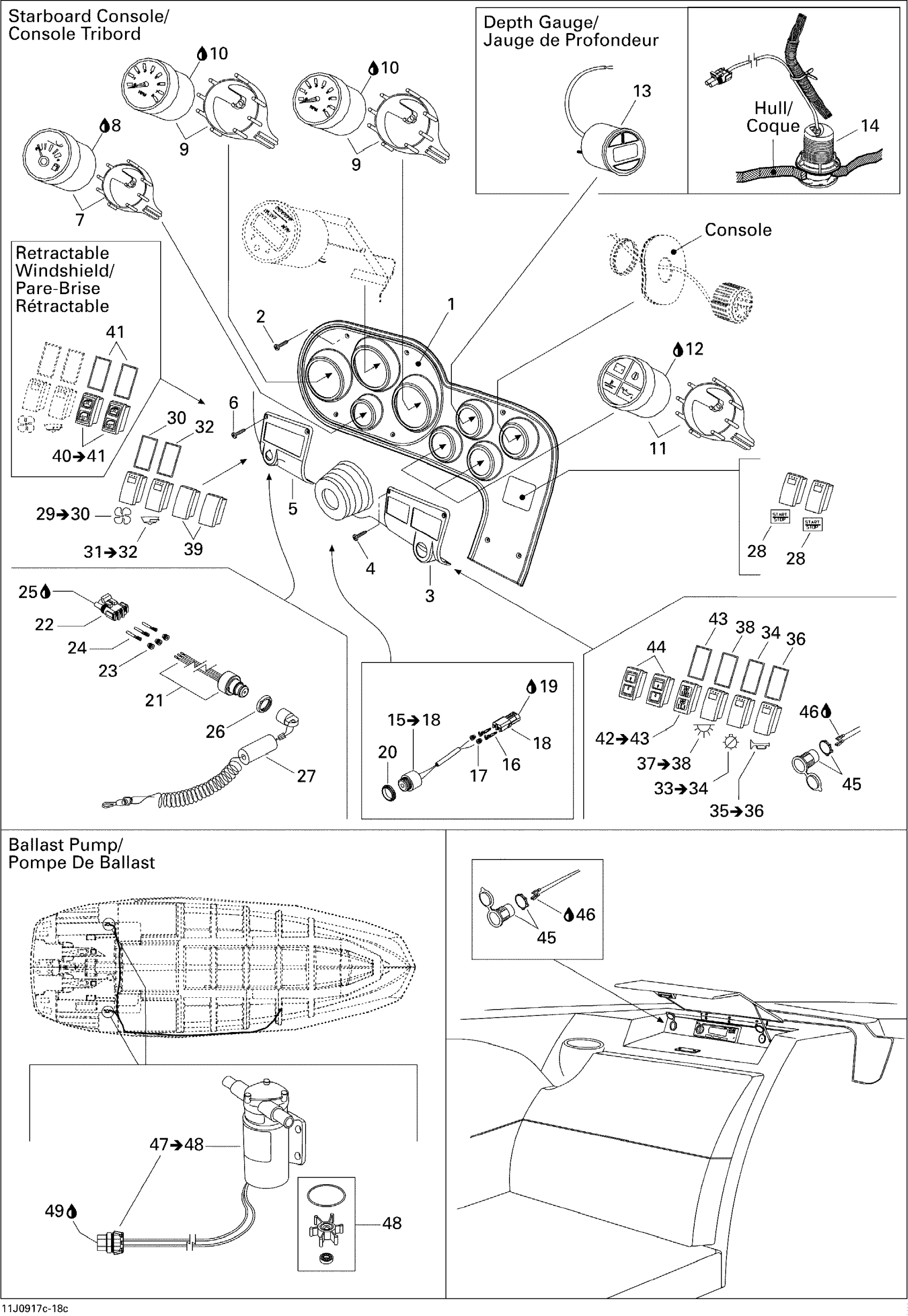

Sea-doo 230 Wake, 2 x 255 HO, 2009 10- Electrical Accessories 3 Diagram
#
1
Fascia
204471334
Unavailable
2
Socket Head Screw M4 X 25
205342560
Unavailable
3
RH Panel Switch
204471173
Unavailable
4
Phillips Tapping Screw 3.5 X 19
250000092
Unavailable
5
LH PANEL SWITCH - Call your local BRP dealership
204471174
Unavailable
6
Phillips Tapping Screw 3.5 X 19
250000092
Unavailable
7
FUEL GAUGE - Call your local BRP dealership
204471163
Unavailable
8
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
9
Tachometer Gauge
204471162
Unavailable
10
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
11
ENGINE WARNING GAUGE - Call your local BRP dealership
204471201
Unavailable
12
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
13
Depth Gauge
204471157
Unavailable
14
Depth Sensor
204471292
$194.99
15
Buzzer Ass'y
204470913
$92.99
16
Male Terminal | XT Models
278000222
$3.19
17
Wire Seal
278000218
$4.39
18
Female Housing, 2 Circuits
278000217
$9.59
19
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
20
Buzzer Nut
278000707
Unavailable
21
Safety Switch This part replaces 278002325.
278002773
$114.99
22
Male Housing, 3 Circuits
278000273
$9.59
23
Wire Seal
278000218
$4.39
24
Female Terminal
278000223
$3.19
25
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
26
Safety Nut (DESS Switch)
278002963
$3.28
27
Safety Lanyard
204471206
$56.99
28
START/STOP SWITCH - Call your local BRP dealership
204471178
Unavailable
29
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
30
Gasket
204470132
Unavailable
31
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
32
Gasket
204470132
Unavailable
33
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
34
Gasket
204470132
Unavailable
35
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
36
Gasket
204470132
Unavailable
37
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
38
Gasket
204470132
Unavailable
39
SWITCH PLUG - Call your local BRP dealership
204470596
Unavailable
40
WINDSHIELD SWITCH - Call your local BRP dealership | Retractable Windshield
204471167
Unavailable
41
Gasket
204470132
Unavailable
42
HEATING SYSTEM SWITCH - Call your local BRP dealership
204471166
Unavailable
43
Gasket
204470132
Unavailable
44
BALLAST SWITCH - Call your local BRP dealership
204471165
Unavailable
45
DC Outlet
710001248
$37.99
46
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
47
Ballast Pump Ass'y | Includes 47 to 48
204471370
Unavailable
48
PUMP REPAIR KIT - Call your local BRP dealership
296000291
Unavailable
49
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
