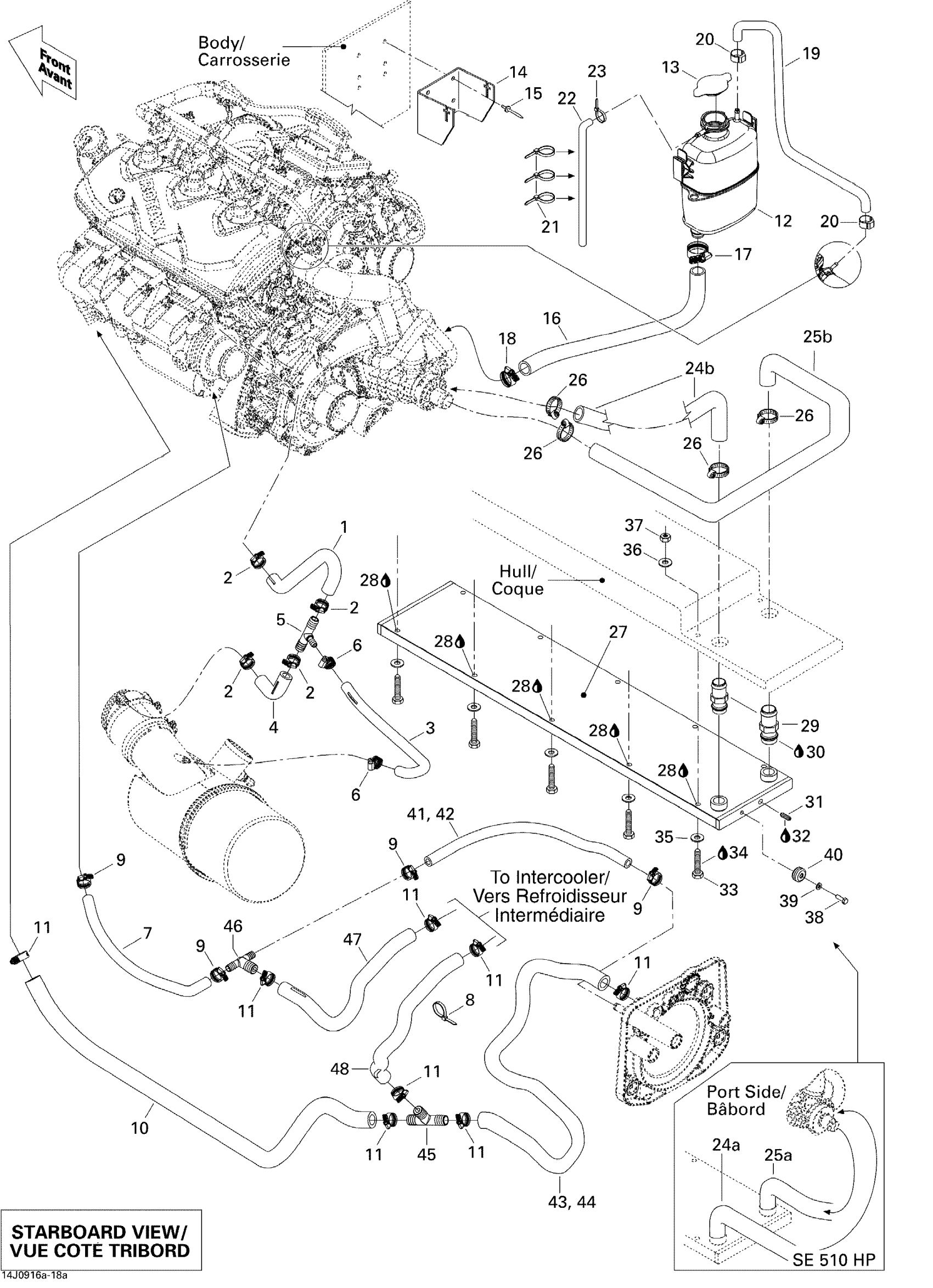

Sea-doo 230 Wake, 2 x 255 HO, 2009 Cooling System 1 Diagram

#

Description
Price

1

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

2

Tridon Gear Clamp

293650172

$3.09

3

Formed Hose | Without Catalyst

276000246

$19.49

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

5

T-Fitting

293710116

$17.62

6

Tridon Gear Clamp

293650171

$3.09

7

Was 276000001 Hose 12.5 mm

219704394

$51.99

7

Was 276000001 Hose 12.5 mm

219704394

$51.99

8

Tie Wrap 368 mm

293750008

$1.04

9

Tridon Gear Clamp

293650172

$3.09

10

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

10

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

11

Tridon Gear Clamp

293650051

$4.19

12

Coolant Tank

276000086

$109.99

13

Pressure Cap | Includes 720 to 720a

276000100

$25.99

14

COOLANT TANK BRACKET - Call your local BRP dealership

204300213

Unavailable

15

Pop Rivet 3/16"

204000081

$1.49

16

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

16

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

17

Tridon Gear Clamp

293650051

$4.19

18

Tridon Gear Clamp

293650019

$5.82

19

Was 275500549 Hose 1/4"

219704357

$194.99

19

Was 275500549 Hose 1/4"

219704357

$194.99

20

Oetiker Gear Clamp

293650025

$3.09

21

Tie Wrap 142 mm

293750002

$1.25

22

Polyurethane Hose 10000Mm Long

219704410

$56.99

22

Polyurethane Hose 10000Mm Long

219704410

$56.99

23

Tie Wrap 94 mm | 4X4

293750001

$1.03

24a

Not Available As Spare Parts

XXX

Unavailable

24b

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

25a

Not Available As Spare Parts

XXX

Unavailable

25b

Starboard Formed Hose - Call your local BRP dealership

204300174

Unavailable

26

Tridon Gear Clamp

293650045

$5.69

27

HEAT EXCHANGER - Call your local BRP dealership

204300235

Unavailable

28

Instant Gasket

219701421

$51.99

29

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

30

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

31

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

32

Was 293800013 Loctite 56765

219704454

$65.99

33

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

34

Loctite 243, 10 ml

293800060

$21.49

35

Flat Washer 10 mm, Stainless

234000600

$1.46

36

Flat Washer 10 mm, Stainless

234002600

$2.22

37

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

38

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

39

Stainless Flat Washer M6

234061600

$0.33

40

Anode Zinc

271001813

$18.99

41

Was 276000001 Hose 12.5 mm

219704394

$51.99

42

Was 276000001 Hose 12.5 mm

219704394

$51.99

43

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

44

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

45

T-Fitting

293710131

$15.87

46

T-Fitting

293710132

$12.65

47

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

47

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

48

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

48

Hose 19.0Mm. 2000Mm Long

219704361

$48.99
