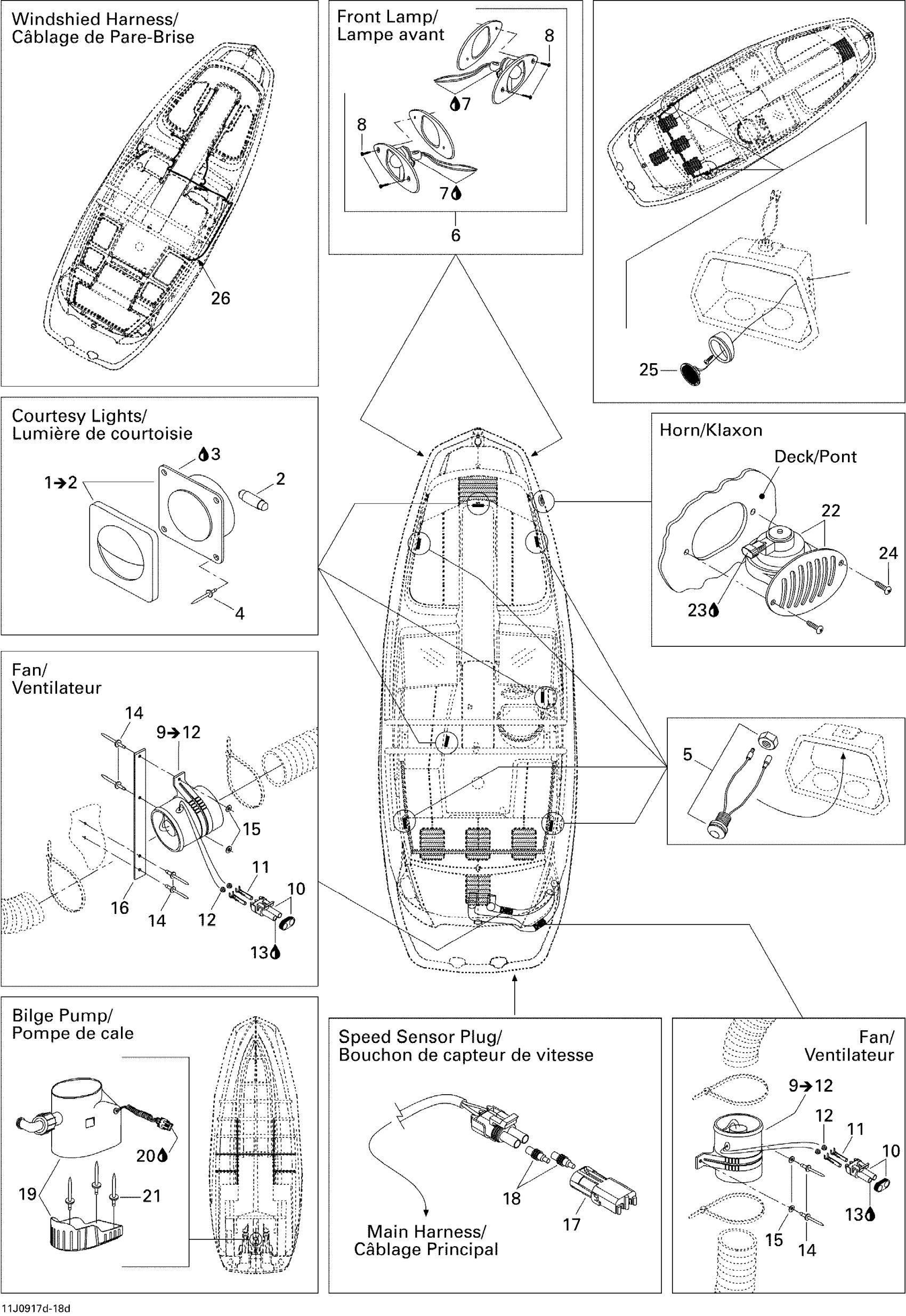

Sea-doo 230 Wake, 2 x 215 SCIC, 2009 Electrical Accessories 4 Diagram

#

Description
Price

1

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

2

BULB - Call your local BRP dealership

204470081

Unavailable

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

5

LED Light Ass'y

204471169

Unavailable

6

LATERAL LIGHT KIT - Call your local BRP dealership

204470908

Unavailable

7

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

8

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

9

Fan Ass'y | Includes 44 to 47

204470108

$144.99

10

Male Connector, 2 Circuits

278000220

$15.49

11

Female Terminal

278000223

$3.19

12

Wire Seal

278000218

$4.39

13

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

14

Pop Rivet 3/16"

293150008

$0.50

15

Flat Washer 5 mm, Stainless

234052600

$0.77

16

BRACKET - Call your local BRP dealership

204471389

Unavailable

17

Female Housing, 2 Circuits

278000217

$9.59

18

Wire Seal

278000216

$3.19

19

PUMP BILGE 750 GPH replaced by RM-800 - Call your local BRP dealership | WAKE This part replaces 204471202.

278002977

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

22

HORN - Call your local BRP dealership

204470801

Unavailable

23

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

24

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

25

Not Available As Spare Part - Friction Washer

Unavailable

26

WINDSHIELD HARNESS - Call your local BRP dealership

204471332

Unavailable
