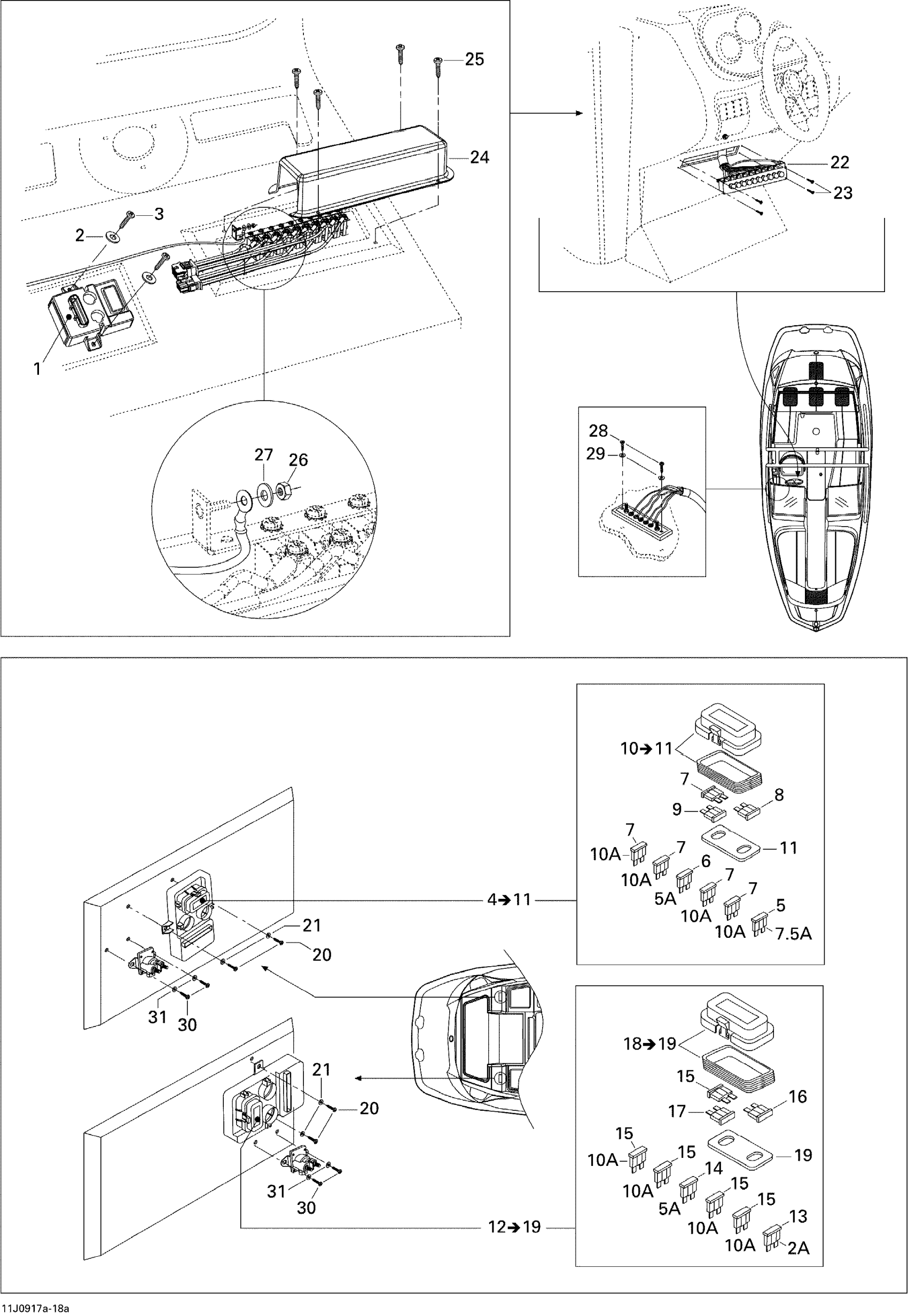

Sea-doo 230 Wake, 2 x 215 SCIC, 2009 10- Electrical Accessories 1 Diagram

#

Description
Price

1

TWIN ENGINE INTERFACE - Call your local BRP dealership

204471367

Unavailable

2

Flat Washer M6, Stainless

234062600

$0.77

3

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

4

Fuse Block | Includes 4 to 11

204471091

Unavailable

5

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

6

Fuse, 5 Amperes | CE

278000344

$3.28

7

Fuse, 10 Amperes | North America

278001197

$2.21

8

Fuse, 20 Amperes

409003900

$3.28

9

Fuse, 30 Amperes

410917200

$3.28

10

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

11

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

12

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

13

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

14

Fuse, 5 Amperes | CE

278000344

$3.28

15

Fuse, 10 Amperes | North America

278001197

$2.21

16

Fuse, 20 Amperes

409003900

$3.28

17

Fuse, 30 Amperes

410917200

$3.28

18

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

19

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

20

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

21

Flat Washer M6, Stainless

234062600

$0.77

22

BREAKER CIRCUIT PANEL - Call your local BRP dealership

204471329

Unavailable

23

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

24

Circuit Breaker Panel Cover

204471375

Unavailable

25

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

26

Hex. Nut

212100005

$1.35

27

Helical Lock Washer M5

234151601

$1.15

28

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

29

Flat Washer 4 mm, Stainless

234041600

$1.15

30

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

31

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable
