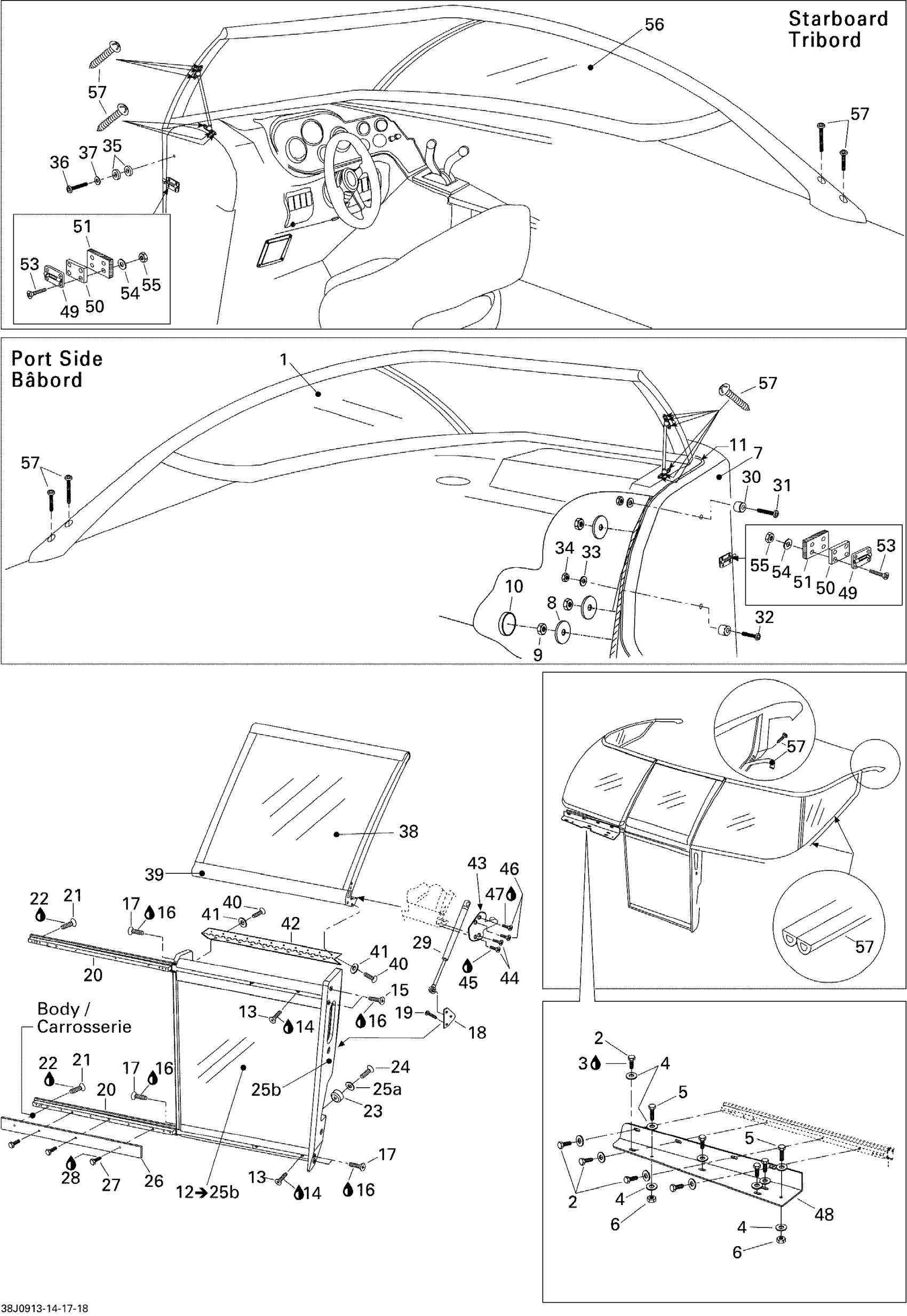

Sea-doo 230 Wake, 2 x 215 SCIC, 2009 09- Windshield, Fixed Diagram
#
1
WINDSHIELD WING ASS'Y - Call your local BRP dealership | Port
204440006
Unavailable
2
Hex. Screw M6 X 16
207161660
$1.59
3
Loctite 243, 10 ml
293800060
$21.49
4
Flat Washer M6, Stainless
234062600
$0.77
5
Hex. Screw M6 X 25
207162560
$1.47
6
Hex. Elastic Stop Nut M6
232561600
$1.15
7
Filler Board Ass'y
204073027
Unavailable
8
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
9
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
10
BLACK CAP 1 1/2 - Call your local BRP dealership
204130190
Unavailable
11
TRIM, WHITE - Call your local BRP dealership
204071878
Unavailable
12
Sliding Door Ass'y | Includes 7 to 20b
204440036
Unavailable
13
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
14
Loctite 243, 10 ml
293800060
$21.49
15
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
16
Loctite 243, 10 ml
293800060
$21.49
17
Phillips Screw M6 X 25
208562560
$2.32
18
SHOCK BRACKET - Call your local BRP dealership
204073065
Unavailable
19
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
20
DRAWER SLIDE - Call your local BRP dealership
204073342
Unavailable
21
Phillips Screw M4 X 12
208641260
$1.03
22
Loctite 243, 10 ml
293800060
$21.49
23
Rubber Stopper
293830043
Unavailable
24
PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership
204100147
Unavailable
25a
Flat Washer M3, Stainless
234032600
$0.55
25b
SLIDING DOOR END CAP - Call your local BRP dealership
204440037
Unavailable
26
Walk-Thru Door Support
204072896
Unavailable
27
Hex. Screw M6 X 30
207163060
$1.48
28
Loctite 243, 10 ml
293800060
$21.49
29
GAS SHOCK - Call your local BRP dealership
204072899
Unavailable
30
LOCATOR STUD - Call your local BRP dealership
204130166
Unavailable
31
Socket Screw M5 X 60
205056060
$2.11
32
SOCKET SCREW M5 X 35 - Call your local BRP dealership
205053560
Unavailable
33
Flat Washer M5, Stainless
234051600
$0.77
34
Hex. Elastic Nut M5 | X
232551600
$1.15
35
BUMPER PAD - Call your local BRP dealership
204073815
Unavailable
36
PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership
204100147
Unavailable
37
Flat Washer M3, Stainless
234032600
$0.55
38
CENTER DOOR ASS'Y - Call your local BRP dealership
204440008
Unavailable
39
EXTRUSION - Call your local BRP dealership
204440003
Unavailable
40
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
41
Flat Washer 4 mm, Stainless
234041600
$1.15
42
HINGE - Call your local BRP dealership
204073092
Unavailable
43
Shock Bracket | Portside
204440012
Unavailable
43
Shock Bracket | Starboard
204440013
Unavailable
44
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
208451260
Unavailable
45
Loctite 243, 10 ml
293800060
$21.49
46
Not Available As Spare Part - Friction Washer
Unavailable
47
Loctite 243, 10 ml
293800060
$21.49
48
SLINDING DOOR SUPPORT - Call your local BRP dealership
204440017
Unavailable
49
Latch Bolt
204100233
Unavailable
50
LATCH SPACER - Call your local BRP dealership
204440038
Unavailable
51
LATCH SPACER - Call your local BRP dealership
204440052
Unavailable
52
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
53
Phillips Screw M4 X 30
208443060
$1.48
54
Flat Washer 4 mm, Stainless
234041600
$1.15
55
Elastic Stop Nut M4
232541600
$1.15
56
WINDSHIELD WING ASS'Y - Call your local BRP dealership | Starboard
204440007
Unavailable
57
HARDWARE KIT - Call your local BRP dealership
204440009
Unavailable
