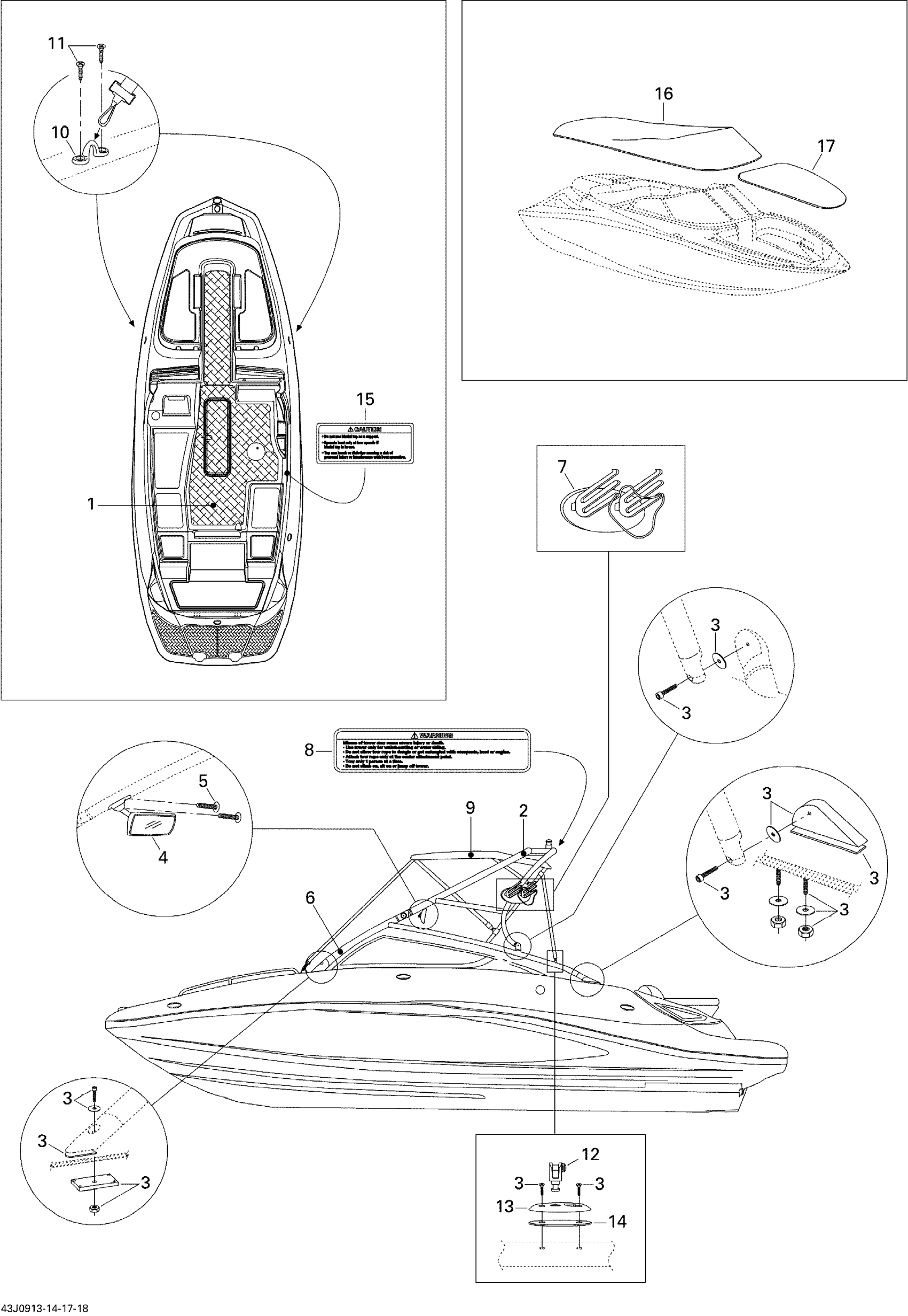

Sea-doo 230 Wake, 2 x 215 SCIC, 2009 09- Tower And Bimini Top Diagram

#

Description
Price

1

ANTI SLIP MAT - Call your local BRP dealership

204950203

Unavailable

2

Tower Ass'y

204072916

Unavailable

3

Tower Installation Hardware Kit

204072919

Unavailable

4

SKI MIRROR - Call your local BRP dealership This part replaces 204071420.

295100386

Unavailable

5

PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership

204100129

Unavailable

6

Tower Rail, Port Side

204950028

Unavailable

6

Tower Rail, Starboard

204950029

Unavailable

7

WAKEBOARD RACK - Call your local BRP dealership

204072339

Unavailable

8

WARNING DECAL, TOWER - Call your local BRP dealership

204901340

Unavailable

9

BIMINI TOP ASS'Y - Call your local BRP dealership

204950035

Unavailable

9a

Bimini Boot | Not Shown

204130433

Unavailable

10

STRAP EYE - Call your local BRP dealership

204071845

Unavailable

11

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

12

BIMINI POST - Call your local BRP dealership

204950033

Unavailable

13

BIMINI BASE - Call your local BRP dealership

204950034

Unavailable

14

BIMINI SPACER - Call your local BRP dealership

204950031

Unavailable

15

CAUTION LABEL, BIMINI TOP - Call your local BRP dealership

204901331

Unavailable

16

COCKPIT COVER - Call your local BRP dealership | Retractable Windshield

204950163

Unavailable

16

Cockpit Cover | Fixed Windshield

204950162

Unavailable

17

BOW COVER - Call your local BRP dealership

204950103

Unavailable
