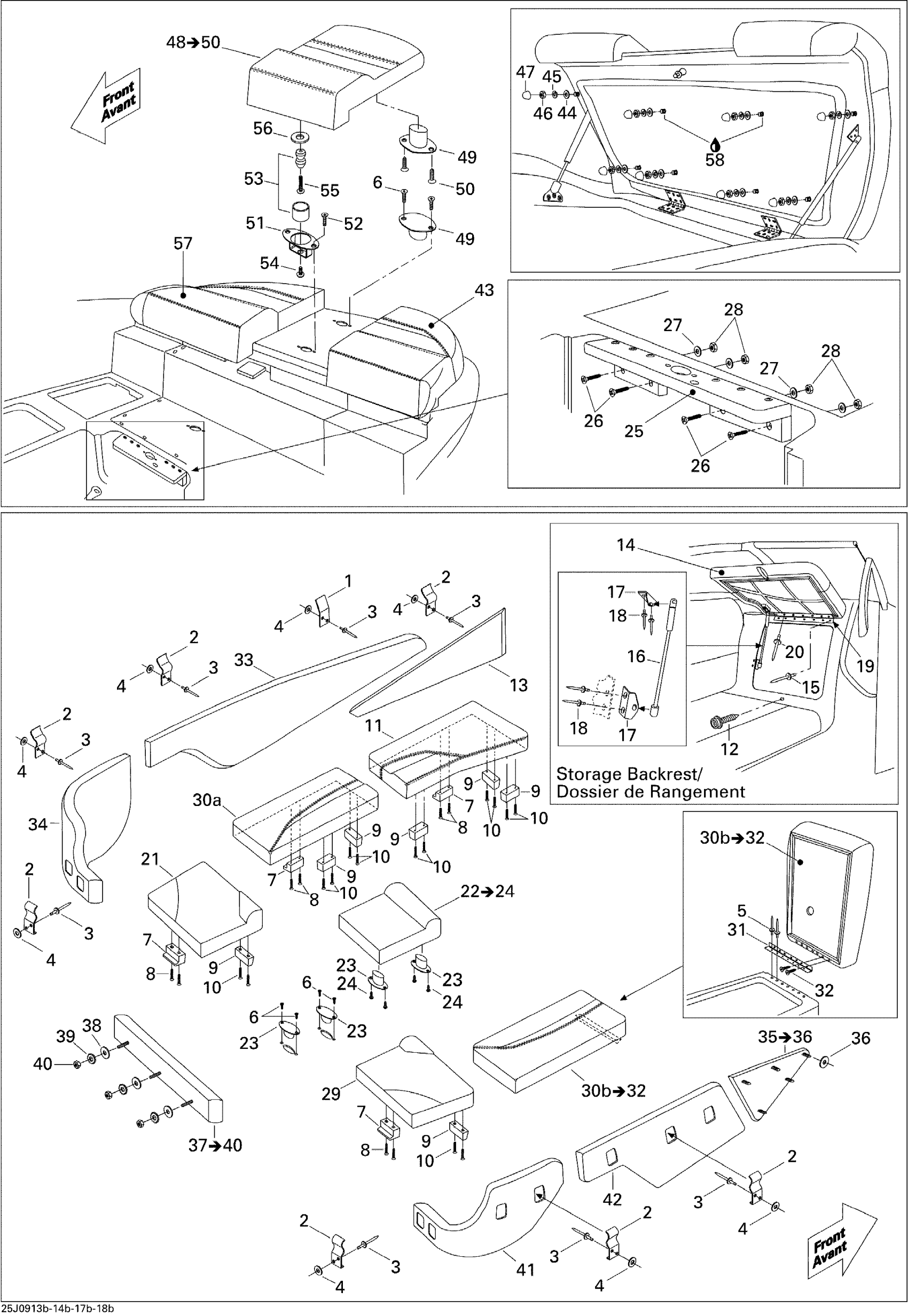

Sea-doo 230 Wake, 2 x 215 SCIC, 2009 09- Seat, Rear View Diagram
#
1
RETAINING CLIP - Call your local BRP dealership
204611531
Unavailable
2
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
3
Pop Rivet 3/16"
293150043
$2.09
4
Stainless Flat Washer M6
234061600
$0.33
5
Pop Rivet 3/16"
293150008
$0.50
6
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
7
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
8
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
9
LATCH - Call your local BRP dealership
204611805
Unavailable
10
SCREW-PAN HD.#10-32 X 1-1/4 SS - Call your local BRP dealership | SE
204100219
Unavailable
11
Spotter's Seat Cushion Ass'y
204614576
Unavailable
12
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
13
Spotter's Seat Side Backrest
204614578
Unavailable
14
Spotter's Seat Storage Backrest
204614580
Unavailable
15
Pop Rivet 3/16"
293150043
$2.09
16
GAS SHOCK - Call your local BRP dealership
204072218
Unavailable
17
Shock Bracket
204073074
$27.99
18
Pop Rivet 3/16"
293150008
$0.50
19
Hinge
204613980
Unavailable
20
Pop Rivet 3/16"
293150008
$0.50
21
Rear Cushion, Port Side
204614547
Unavailable
22
Rear Center Cushion | Includes 22 to 24
204614550
Unavailable
23
MAGNETIC CATCH ASS'Y - Call your local BRP dealership
204614513
Unavailable
24
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
25
SEAT SUPPORT ASS'Y - Call your local BRP dealership
204614709
Unavailable
26
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
27
Flat Washer M6, Stainless
234062600
$0.77
28
Hex. Elastic Stop Nut M6
232561600
$1.15
29
Rear Cushion, Starboard
204614551
Unavailable
30a
Rear Side Cushion, Port Side
204614552
Unavailable
30b
Rear Side Cushion, Starboard | Includes 30b to 32
204614553
Unavailable
31
Hinge
204613980
Unavailable
32
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
33
Rear Side Backrest, Port Side
204614554
Unavailable
34
Rear Corner Backrest, Port Side
204614555
Unavailable
35
Rear Side Flat Backrest, Starboard | Includes 35 to 36
204614557
Unavailable
36
Flat Washer M6, Stainless
234062600
$0.77
37
Rear Center Backrest | Includes 37 to 40
204614558
Unavailable
38
External Serrated Lock Washer 6 mm
234461608
$1.15
39
Hex. Jam Nut
204100060
Unavailable
40
Flat Washer M6, Stainless
234062600
$0.77
41
Rear Corner Backrest, Starboard
204614559
Unavailable
42
Rear Side Backrest, Port Side
204614560
Unavailable
43
Sundeck Cushion, Port Side
204614812
Unavailable
44
Flat Washer 8 mm, Stainless
234082600
$2.43
45
Lock Washer 1/4”
211200025
$1.29
46
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
47
Plastic Cap, White
204130008
Unavailable
48
Sundeck Center Cushion | Includes 48 to 50
204614814
Unavailable
49
MAGNETIC CATCH ASS'Y - Call your local BRP dealership
204614513
Unavailable
50
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
51
HOLDER - Call your local BRP dealership
204614762
Unavailable
52
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
53
HOLDER DOOR ASS'Y - Call your local BRP dealership
269002153
Unavailable
54
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership
204100122
Unavailable
55
SCREW-HEX.HD.MACHINE #10 X 1 - Call your local BRP dealership
204100236
Unavailable
56
FLAT WASHER - Call your local BRP dealership
211200033
Unavailable
57
Sundeck Cushion, Starboard
204614816
Unavailable
58
Loctite 243, 10 ml
293800060
$21.49
