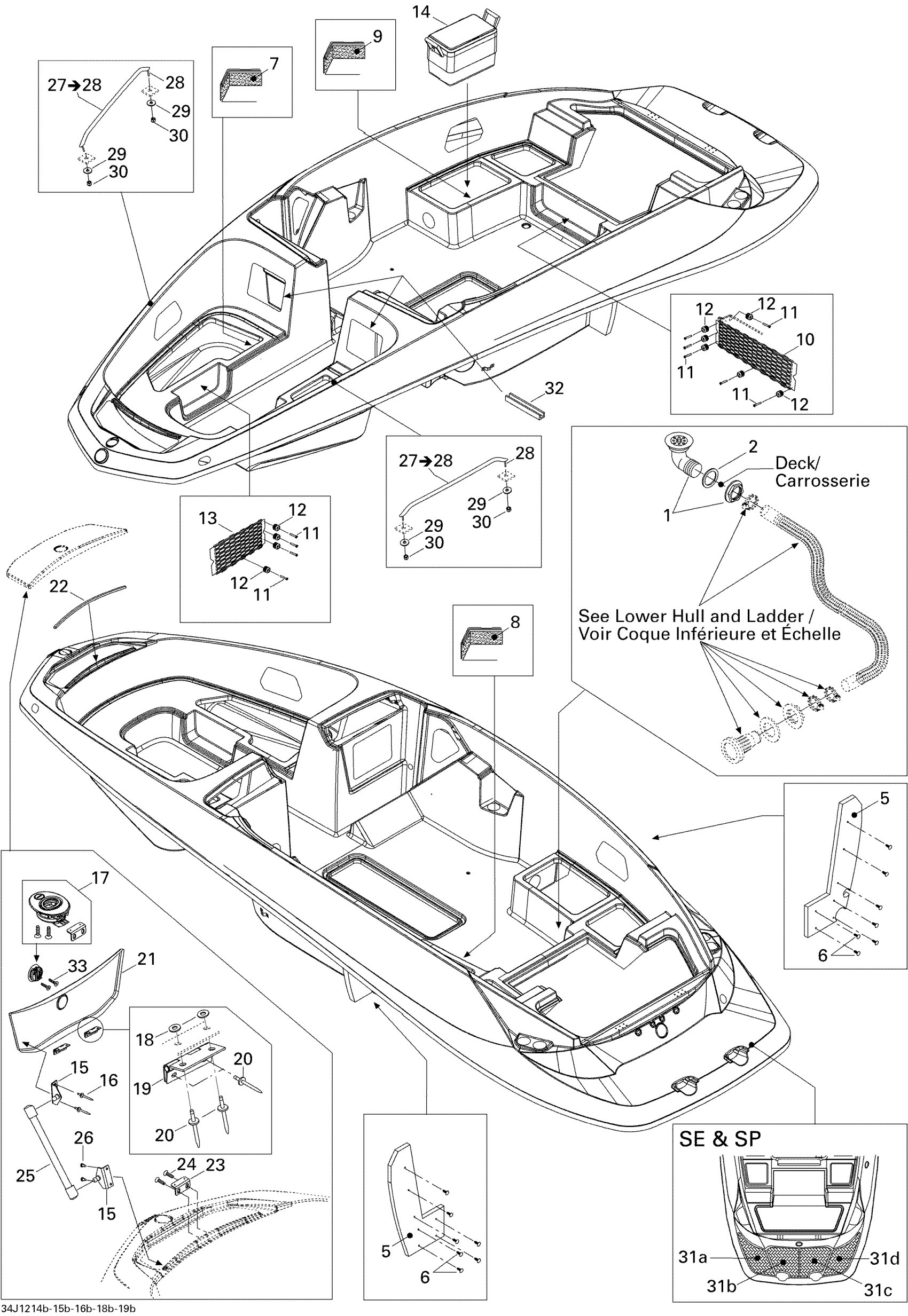

Sea-doo 230 SP 520, 2012 09- Body And Accessories 2 Diagram
#
Description
Price
1
DRAIN FITTING - Call your local BRP dealership
204073301
Unavailable
2
GASKET - Call your local BRP dealership
292800106
Unavailable
3
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
4
Norma Clamp
293650074
$17.05
5
SOUNDWALL SEAL, PORT SIDE - Call your local BRP dealership
204072504
Unavailable
6
Black Dart
293730014
$0.99
7
FRONT CARPET - Call your local BRP dealership
291003315
Unavailable
8
CARPET-AFT/PORT - Call your local BRP dealership
291003316
Unavailable
9
CARPET-AFT/STBD - Call your local BRP dealership
291003317
Unavailable
10
STORAGE NET, REAR - Call your local BRP dealership
291003523
Unavailable
11
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
12
Attachment Knob
204073221
$8.19
13
STORAGE NET - Call your local BRP dealership
291003524
Unavailable
14
COOLER, 23 LITERS (25 QUARTS) - Call your local BRP dealership
204073816
Unavailable
15
Shock Bracket
204073074
$27.99
16
POP RIVET 3/16 - Call your local BRP dealership
204130050
Unavailable
17
Latch, Stainless Steel
291003415
Unavailable
18
Flat Washer M5, Stainless
234051600
$0.77
19
HINGE - Call your local BRP dealership
204072601
Unavailable
20
Avdel Rivet 3/16"
293150037
$0.56
21
ANCHOR LID - Call your local BRP dealership
291003713
Unavailable
22
Was 293200017 Neoprene Seal
219704365
$149.99
23
KEEPER - Call your local BRP dealership
204070060
Unavailable
24
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
25
GAS SHOCK - Call your local BRP dealership
204073017
Unavailable
26
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
27
BOW RAIL ASS'Y - Call your local BRP dealership | Includes 27 to 28
204073416
Unavailable
28
STUD 3/8?-16 X 2? - Call your local BRP dealership
204100050
Unavailable
29
Flat Washer 10 mm, Stainless
234002600
$2.22
30
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
31a
SWIM PLATFORM MAT, OUTSIDE PORT - Call your local BRP dealership | SP
291003731
Unavailable
31b
SWIM PLATFORM MAT, INSIDE PORT - Call your local BRP dealership | SP
291003732
Unavailable
31c
SWIM PLATFORM MAT, INSIDE STARBOARD - Call your local BRP dealership | SP
291003733
Unavailable
31d
SWIM PLATFORM MAT, OUTSIDE STARBOARD - Call your local BRP dealership | SP
291003734
Unavailable
32
TRIM, WHITE - Call your local BRP dealership
262000086
Unavailable
33
Phillips Screw M5 X 25
208652560
$3.39
