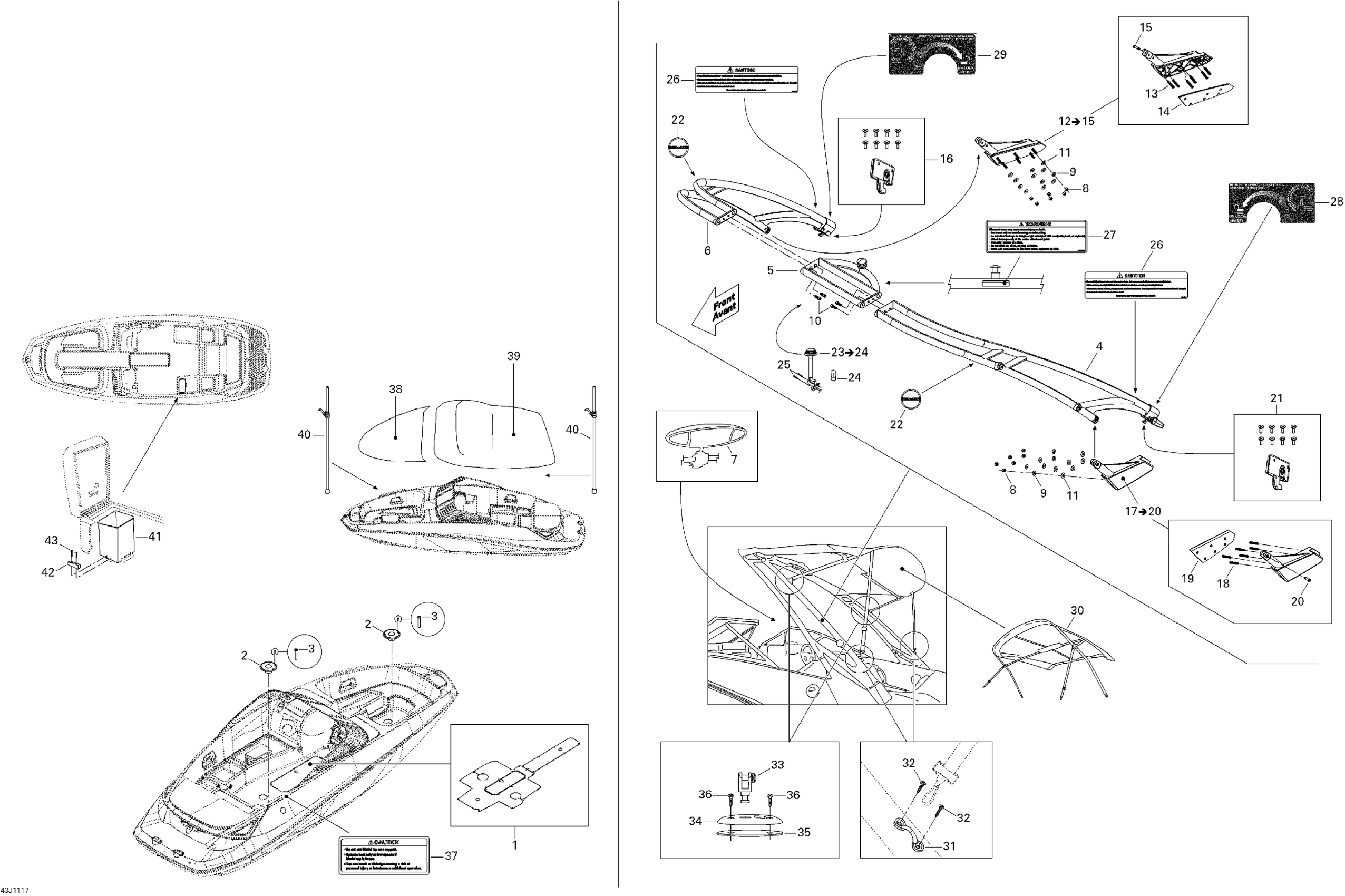

Sea-doo 230 SP 430, 2011 09- Tower And Bimini Top Diagram
#
1
ANTI SLIP MAT - Call your local BRP dealership
269800268
Unavailable
2
TABLE BASE - Call your local BRP dealership
204071209
Unavailable
3
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
4
TOWER SIDE PORT/BLK 210/230 W/NUBS - Call your local BRP dealership This part replaces 269800450.
269800545
Unavailable
5
TOWER HEADER BLACK 210/230 - Call your local BRP dealership This part replaces 269800244.
269800544
Unavailable
6
STARBOARD SIDE TOWER - Call your local BRP dealership
269800451
Unavailable
7
MIRROR - Call your local BRP dealership
269800236
Unavailable
8
HEX. NUT 1/2 X 13 - Call your local BRP dealership
269800421
Unavailable
9
WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership
204100048
Unavailable
10
SCREW 1/2 X 13 X 1.25 - Call your local BRP dealership
269800197
Unavailable
11
TOWER MOUNT FENDER WASHER 1/2 - Call your local BRP dealership
269800344
Unavailable
12
RH TOWER SUPPORT - Call your local BRP dealership | With Tower
269800255
Unavailable
13
STUD 1/2 - Call your local BRP dealership | Starboard
269800349
Unavailable
14
TOWER MOUNT GASKET - 230 - PORT - Call your local BRP dealership
269800440
Unavailable
15
TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.5 - Call your local BRP dealership
269800350
Unavailable
16
CAM LATCH KIT - Call your local BRP dealership | Starboard
204950247
Unavailable
17
LH TOWER SUPPORT - Call your local BRP dealership | With Tower
269800256
Unavailable
18
STUD 1/2 - Call your local BRP dealership | Starboard
269800349
Unavailable
19
TOWER MOUNT GASKET - 230 - PORT - Call your local BRP dealership
269800440
Unavailable
20
TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.5 - Call your local BRP dealership
269800350
Unavailable
21
CAM LATCH KIT - Call your local BRP dealership | Starboard
204950247
Unavailable
22
COVER - SPEAKER MOUNT - Call your local BRP dealership
269800234
Unavailable
23
Stern Light
204471183
Unavailable
24
Bulb
204470053
Unavailable
25
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
26
CAUTION LABEL, TOWER - Call your local BRP dealership | With Tower
269800405
Unavailable
27
WARNING LABEL, TOWER - Call your local BRP dealership | With Tower
204902068
Unavailable
28
LABEL-TOWER/LEVER-PORT - Call your local BRP dealership | With Tower
219903499
Unavailable
29
LABEL-TOWER/LEVER-STBD. - Call your local BRP dealership | With Tower
219903500
Unavailable
30
Bimini Top, W/Tower | Challenger SE
269800208
$1.00
31
STRAP EYE, STAINLESS - Call your local BRP dealership
269800358
Unavailable
32
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
33
BIMINI POST - Call your local BRP dealership
204950033
Unavailable
34
BIMINI BASE - Call your local BRP dealership
204950034
Unavailable
35
BIMINI SPACER - Call your local BRP dealership
204950031
Unavailable
36
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
37
CAUTION LABEL, BIMINI TOP - Call your local BRP dealership
204901331
Unavailable
38
Bow Cover | Challenger SE
269800379
Unavailable
39
Cockpit Cover | With Tower
269800381
Unavailable
40
SUPPORT POLE COVER - Call your local BRP dealership
269800404
Unavailable
41
TRASH CAN - Call your local BRP dealership | Challenger SE
204950095
Unavailable
42
LATCH - Call your local BRP dealership
204611805
Unavailable
43
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
