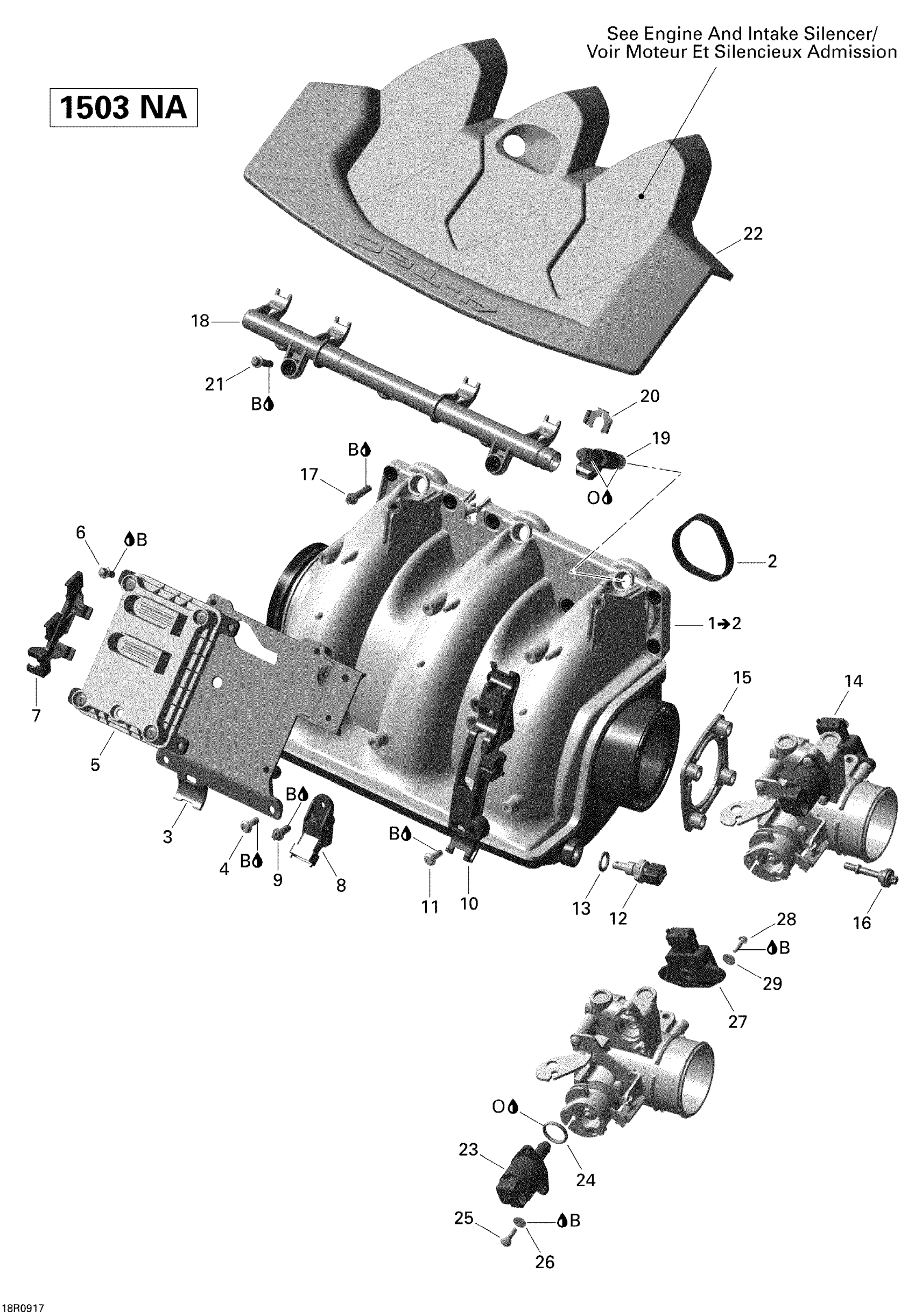

Sea-doo 230 Challenger SP, 2 x 155 NA, 2009 Air Intake Manifold And Throttle Body _V2_V3 Diagram

#

Description
Price

1

Air Intake Manifold | Includes 1 to 2

420867921

$469.99

2

Gasket | Included in gasket kit

420950740

$4.44

3

BASE PLATE - Call your local BRP dealership

420851521

Unavailable

4

Torx Flange Screw M6 X 16

420641048

$2.96

5

ELECTRONIC BOX - Call your local BRP dealership

420664137

Unavailable

5

ELECTRONIC BOX - Call your local BRP dealership | Twin Engine Model

420664139

Unavailable

6

Torx Flange Screw M6 X 16

420641588

$2.11

7

CONNECTOR BRACKET - Call your local BRP dealership

420660402

Unavailable

8

Pressure Sensor

270600040

$199.99

9

Torx Flange Screw M6 X 16

420641048

$2.96

10

WIRING SUPPORT - Call your local BRP dealership

420660410

Unavailable

11

Torx Flange Screw M6 X 16

420641588

$2.11

12

Temperature Sensor This part replaces 420222423.

420222421

$39.99

13

Aluminum Sealing Ring

420250016

$5.39

14

Throttle Body

420892452

$889.99

15

Rubber Gasket

420950792

$11.60

16

Allen Screw M6 x 30,5

420440561

$4.44

17

Torx Flange Screw M6 X 25

420641238

$3.27

18

FUEL RAIL ASS'Y - Call your local BRP dealership

420874394

Unavailable

19

INJECTOR - Call your local BRP dealership | Includes 19 to 20

420874430

Unavailable

20

Injector Clip

420853030

$3.09

21

Torx Flange Screw M6 X 25

420641238

$3.27

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Idle Air Control Valve

420665941

$179.99

24

O-Ring

420631780

$4.44

25

Binding Head Screw M5 X 16

420440911

$14.28

26

Snap Ring

420845710

$4.12

27

Position Sensor

420866120

$98.99

28

Phillips Screw M4 X 16

208641660

$0.90

29

Flat Washer 4 mm, Stainless

234042600

$1.15

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable
