- 230 Challenger SE 510, 2x255 1503HO, 2010
09- Body And Accessories 2

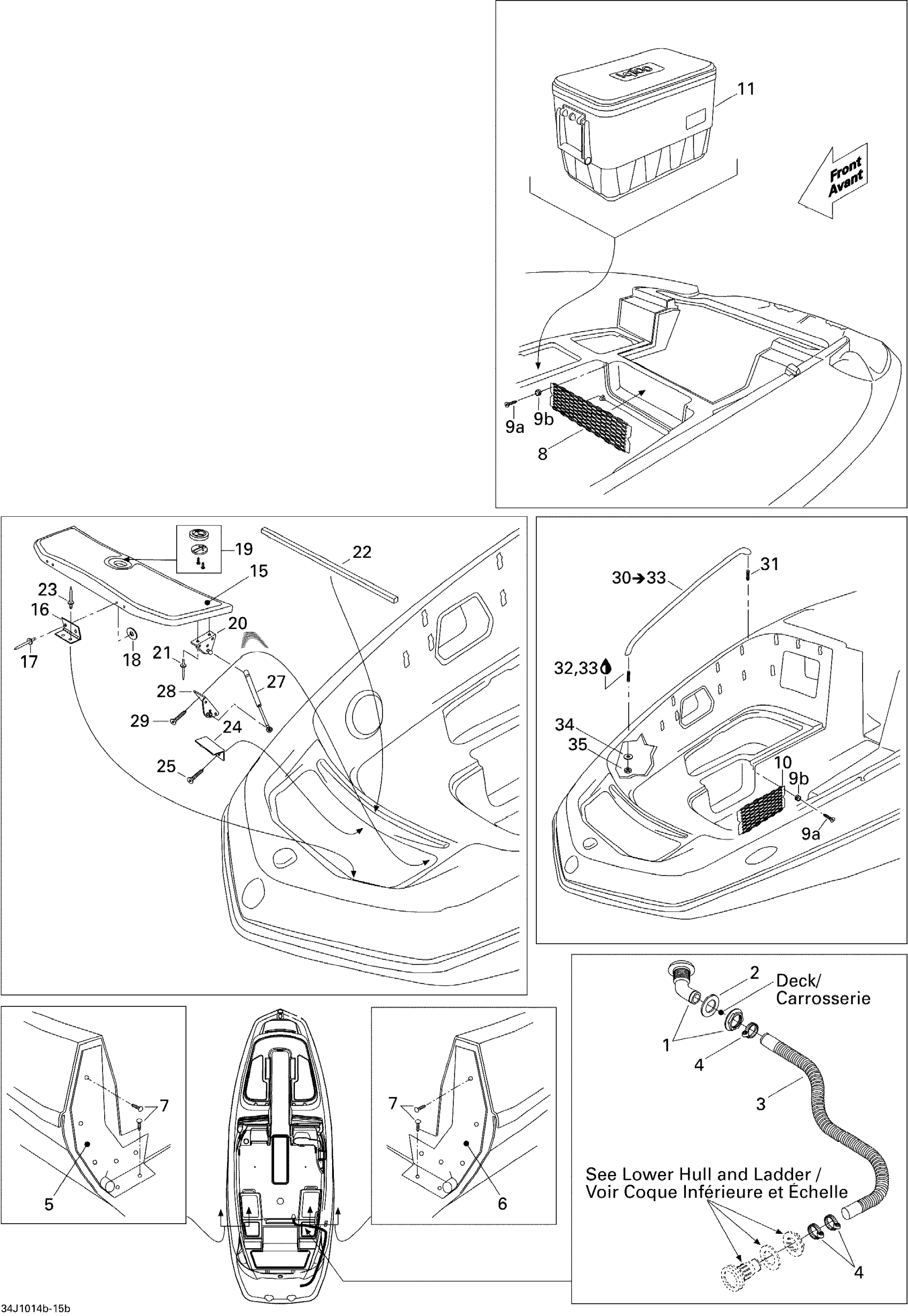

Sea-doo 230 Challenger SE 510, 2x255 1503HO, 2010 09- Body And Accessories 2 Diagram
#
Description
Price
1
DRAIN FITTING - Call your local BRP dealership
204073301
Unavailable
2
GASKET - Call your local BRP dealership
292800106
Unavailable
3
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
4
Norma Clamp
293650074
$17.05
5
SOUNDWALL SEAL, PORT SIDE - Call your local BRP dealership
204072504
Unavailable
6
Soundwall Seal, Starboard
204072505
Unavailable
7
Black, Dart
293730006
$0.99
8
STORAGE NET, REAR - Call your local BRP dealership
204073217
Unavailable
9a
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
9b
Attachment Knob
204073221
$8.19
10
STORAGE NET - Call your local BRP dealership
291003524
Unavailable
11
COOLER, 23 LITERS (25 QUARTS) - Call your local BRP dealership
204072662
Unavailable
15
Anchor Lid
204073506
Unavailable
16
HINGE - Call your local BRP dealership
204072601
Unavailable
17
Avdel Rivet 3/16"
293150037
$0.56
18
Flat Washer M5, Stainless
234051600
$0.77
19
Stainless Latch
204072838
$144.99
20
Shock Bracket
204073074
$27.99
21
Pop Rivet 3/16"
293150088
$0.99
22
Was 293200017 Neoprene Seal
219704365
$149.99
23
Avdel Rivet 3/16"
293150037
$0.56
24
KEEPER - Call your local BRP dealership
204070060
Unavailable
25
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
26
Loctite 243, 10 ml
293800060
$21.49
27
GAS SHOCK - Call your local BRP dealership
204073017
Unavailable
28
Shock Bracket
204073074
$27.99
29
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
30
BOW RAIL ASS'Y - Call your local BRP dealership | Includes 27 to 28
204073416
Unavailable
31
STUD 3/8?-16 X 2? - Call your local BRP dealership
204100050
Unavailable
32
Was 293800041 Loctite Primer 7649
219704458
$39.99
33
Loctite 271, 10 ml
293800005
$26.99
34
Flat Washer 10 mm, Stainless
234002600
$2.22
35
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
