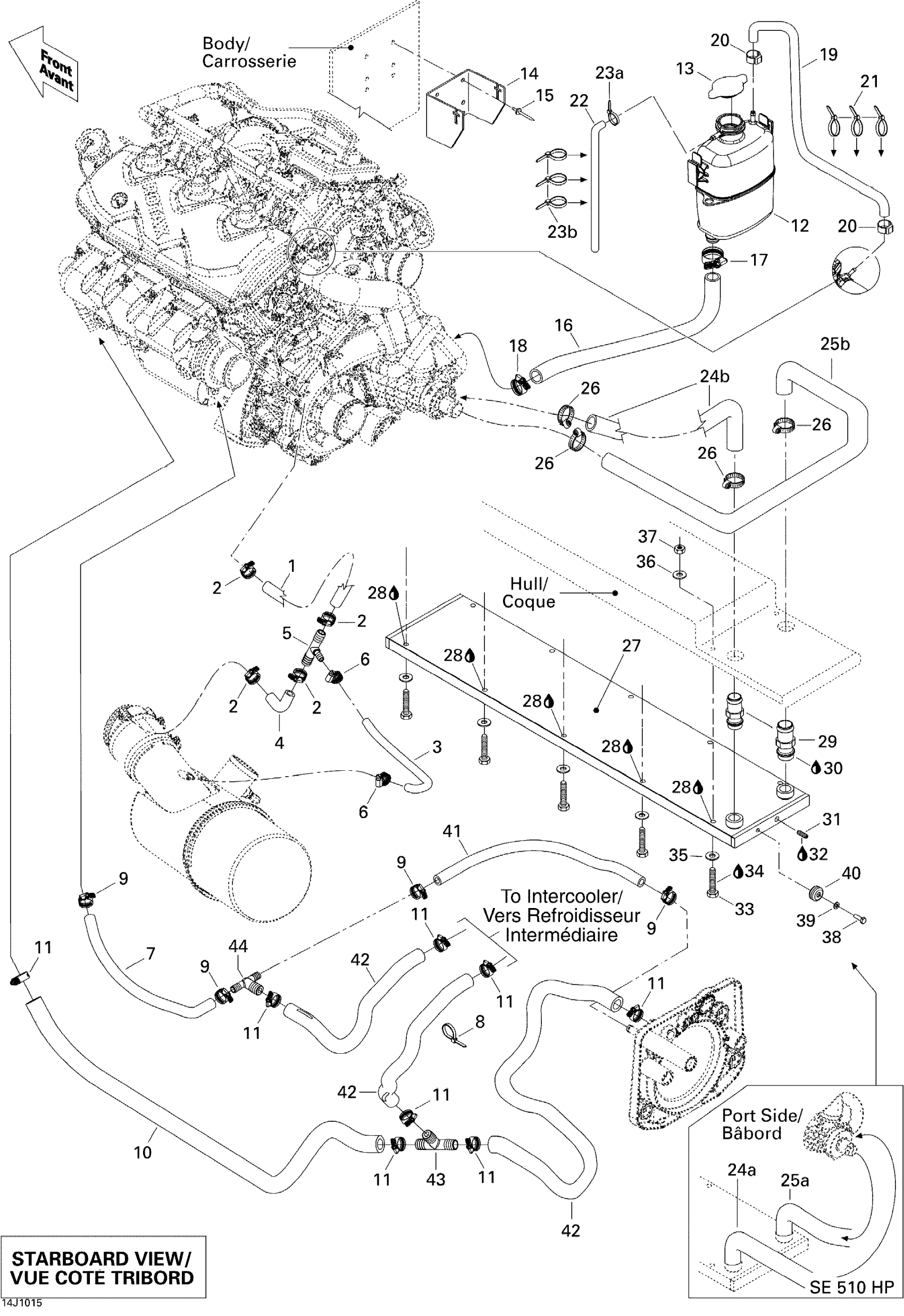

Sea-doo 230 Challenger SE 510, 2x255 1503HO, 2010 Cooling System Diagram

#

Description
Price

1

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

2

Tridon Gear Clamp

293650172

$2.68

3

Formed Hose | Without Catalyst

276000246

$14.92

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

5

T-Fitting

293710116

$14.27

6

Tridon Gear Clamp

293650171

$2.46

7

Was 276000001 Hose 12.5 mm

219704394

$42.87

8

Tie Wrap 368 mm

293750008

$0.85

9

Tridon Gear Clamp

293650172

$2.68

10

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

11

Tridon Gear Clamp

293650051

$3.61

12

Coolant Tank

276000086

$87.72

13

Pressure Cap | Includes 720 to 720a

276000100

$20.77

14

COOLANT TANK BRACKET - Call your local BRP dealership

204300213

Unavailable

15

Pop Rivet 3/16"

204000081

$1.31

16

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

17

Tridon Gear Clamp

293650051

$3.61

18

Tridon Gear Clamp

293650019

$4.81

19

Was 275500549 Hose 1/4"

219704357

$178.33

20

Oetiker Gear Clamp

293650025

$2.46

21

Tie Wrap 142 mm

293750002

$0.88

22

Polyurethane Hose 10000Mm Long

219704410

$46.12

23a

Tie Wrap 94 mm | 4X4

293750001

$0.83

23b

Tie Wrap 142 mm

293750002

$0.88

24a

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

24b

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

25a

Ride Plate Hose This part replaces 204300172.

423465058

Unavailable

25b

Starboard Formed Hose - Call your local BRP dealership

204300174

Unavailable

26

Tridon Gear Clamp

293650045

$4.51

27

HEAT EXCHANGER - Call your local BRP dealership

204300235

Unavailable

28

Instant Gasket

219701421

$50.02

29

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

30

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

31

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

32

Was 293800013 Loctite 56765

219704454

$63.40

33

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

34

Loctite 243, 10 ml

293800060

$20.77

35

Flat Washer 10 mm, Stainless

234000600

$1.07

36

Flat Washer 10 mm, Stainless

234002600

$1.85

37

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

38

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

39

Stainless Flat Washer M6

234061600

$0.25

40

Anode Zinc

271001813

$13.62

41

Was 276000001 Hose 12.5 mm

219704394

$42.87

42

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

43

T-Fitting

293710131

$12.57

44

T-Fitting

293710132

$9.48
