- 230 Challenger SE 510, 2011
10- Engine Harness

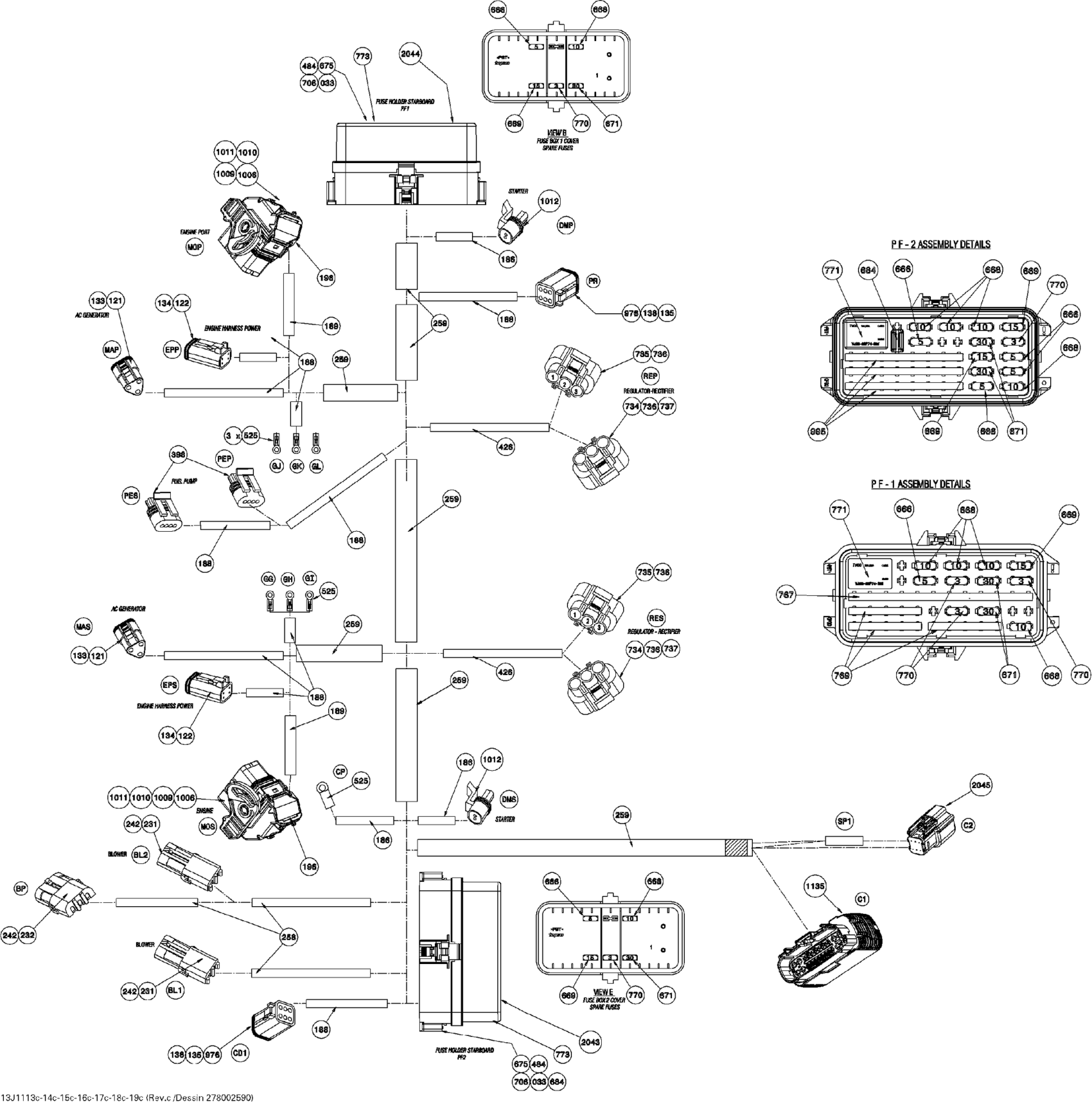

Sea-doo 230 Challenger SE 510, 2011 10- Engine Harness Diagram
#
1
ENGINE HARNESS - Call your local BRP dealership
278002590
Unavailable
33
Wire Seal
278000999
$3.19
99
Open Barrel
278000992
$2.21
101
Open Barrel Terminal
278001392
$4.79
112
Female Terminal
278000632
$2.09
113
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
121
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
$30.99
122
Male Connector, 4 Circuits | CE
278000739
$19.49
133
Female Lock
409207200
$4.39
134
Male Lock, 4 Circuits | CE
278000738
$3.09
135
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
138
Sealing Cap
293000052
$3.19
196
Tie Wrap 142 mm
293750002
$1.25
202
Female Terminal
278001114
$3.19
227
Male Terminal
409004300
$5.61
231
Female Housing, 2 Circuits
278000217
$9.59
232
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
242
Wire Seal
278000218
$4.39
398
MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership
278001308
Unavailable
420
Tie-Rap 180 mm
414115200
$0.11
484
Seal
415128501
$1.89
525
SHRINK TUBING - Call your local BRP dealership
710000482
Unavailable
666
Little Fuse, 5 Amperes
710000742
$8.79
668
Little Fuse, 10 Amperes
710000744
$8.79
669
Little Fuse, 15 Ampere
710000745
$8.49
671
Little Fuse, 30 Amperes
710000747
$8.49
675
Fuse Box Base Ass´y
415129856
$50.99
702
Female Terminal
710000836
$5.61
703
Female Terminal
710000837
$5.39
706
Cap
710000840
$5.89
732
Female Terminal
710000877
$9.12
734
Female Housing, 3 Circuits
710000879
$25.99
735
Housing, 3 Circuits
710000880
$21.99
736
Seal
710000881
$17.99
737
Cap
710000882
$11.49
757
Female Terminal
278001665
$4.55
766
FEMALE TERMINAL - Call your local BRP dealership
278002164
Unavailable
767
Bus Bar
278002165
$8.79
769
Bus Bar
278002165
$8.79
770
Little Fuse, 3 AMP
710001008
$3.79
771
Relay, 30 AMP | Obsolete. ATV order 515176774
278002168
Unavailable
773
Fuse Cover
710001026
$21.99
976
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
$21.99
995
Bus Bar
278002165
$8.79
1006
Female Terminal Housing, 48 Circuits
710001588
$48.49
1007
Female Terminal
710001589
$2.21
1008
Female Terminal
710001590
$2.09
1009
Cover, 48 positions
710001591
$12.18
1010
Plug
710001592
$2.21
1011
Plug
710001593
$2.21
1012
FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership
278002374
Unavailable
1135
HOUSING - Call your local BRP dealership
278002451
Unavailable
1139
Female Terminal
278002455
$3.79
2043
DECAL FUSE RELAY - Call your local BRP dealership
278002609
Unavailable
2044
DECAL FUSE RELAY - Call your local BRP dealership
278002608
Unavailable
