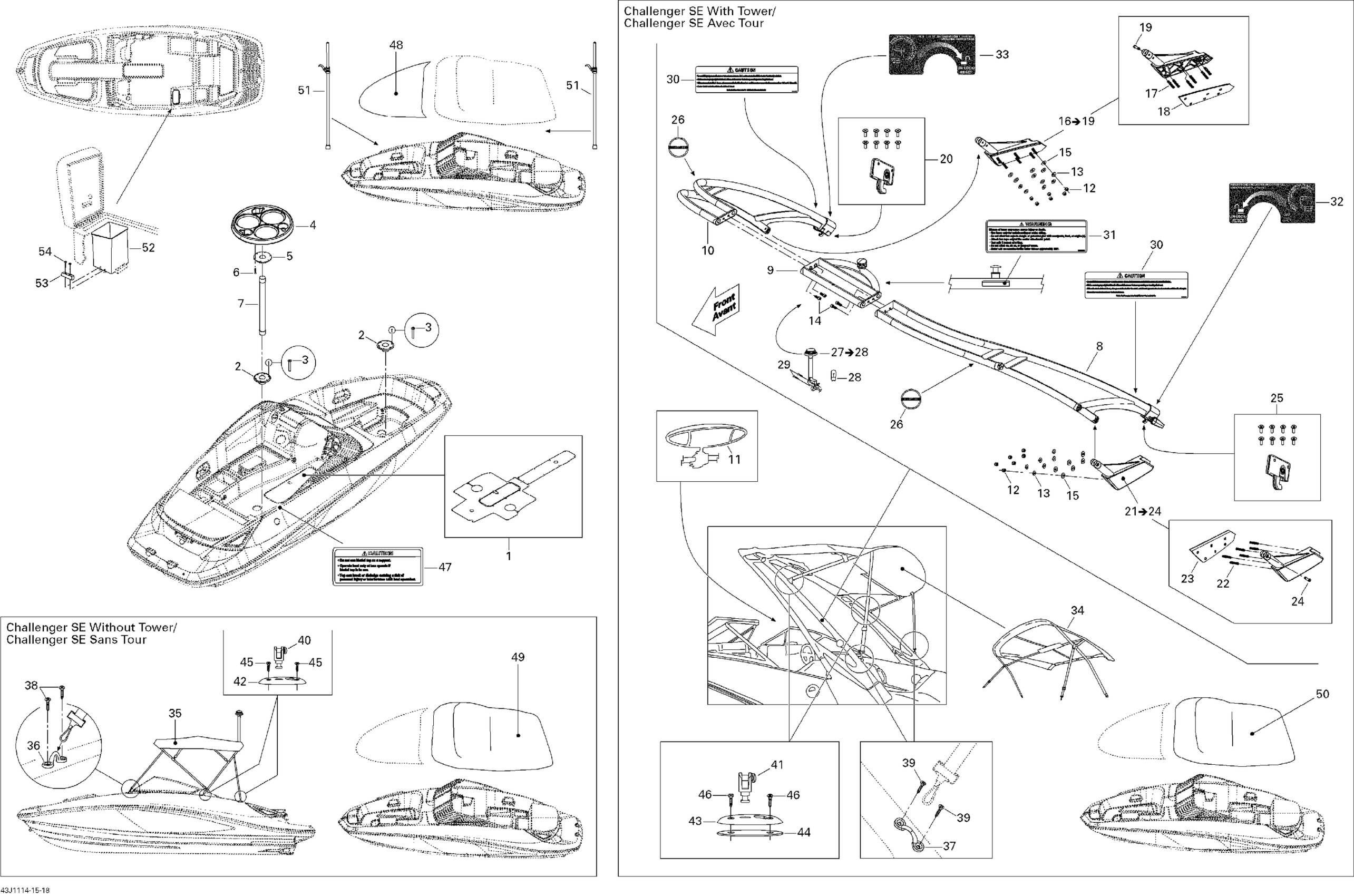

Sea-doo 230 Challenger SE 510, 2011 09- Tower And Bimini Top Diagram

#

Description
Price

1

ANTI SLIP MAT - Call your local BRP dealership

204950197

Unavailable

2

TABLE BASE - Call your local BRP dealership

204071209

Unavailable

3

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

4

COCKPIT TABLE - Call your local BRP dealership | Challenger S

204073212

Unavailable

5

TABLE MOUNT - Call your local BRP dealership | Challenger S

204071315

Unavailable

6

TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S

209951960

Unavailable

7

TABLE POST, LARGE - Call your local BRP dealership | Challenger S

204070634

Unavailable

8

PORT SIDE TOWER - Call your local BRP dealership | Challenger SE

269800453

Unavailable

9

TOWER HEADER - Call your local BRP dealership | Challenger SE

269800266

Unavailable

10

STARBOARD SIDE TOWER - Call your local BRP dealership | Challenger SE

269800454

Unavailable

11

MIRROR, 3-WAY - Call your local BRP dealership

269800364

Unavailable

12

HEX. NUT 1/2 X 13 - Call your local BRP dealership

269800421

Unavailable

13

WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership

204100048

Unavailable

14

SCREW 1/2 X 13 X 1.25 - Call your local BRP dealership

269800197

Unavailable

15

TOWER MOUNT FENDER WASHER 1/2 - Call your local BRP dealership

269800344

Unavailable

16

RH TOWER SUPPORT - Call your local BRP dealership | With Tower

269800255

Unavailable

17

STUD 1/2 - Call your local BRP dealership | Starboard

269800349

Unavailable

18

TOWER MOUNT GASKET - 230 - PORT - Call your local BRP dealership

269800440

Unavailable

19

TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.5 - Call your local BRP dealership

269800350

Unavailable

20

CAM LATCH KIT - Call your local BRP dealership | Starboard

204950247

Unavailable

21

LH TOWER SUPPORT - Call your local BRP dealership | With Tower

269800256

Unavailable

22

STUD 1/2 - Call your local BRP dealership | Starboard

269800349

Unavailable

23

TOWER MOUNT GASKET - 230 - PORT - Call your local BRP dealership

269800440

Unavailable

24

TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.5 - Call your local BRP dealership

269800350

Unavailable

25

CAM LATCH KIT - Call your local BRP dealership | Starboard

204950247

Unavailable

26

COVER - SPEAKER MOUNT - Call your local BRP dealership

269800234

Unavailable

27

Stern Light

204471183

Unavailable

28

Bulb

204470053

Unavailable

29

SCREW 8-18 X 1 - Call your local BRP dealership

269800422

Unavailable

30

CAUTION LABEL, TOWER - Call your local BRP dealership | With Tower

269800405

Unavailable

31

WARNING LABEL, TOWER - Call your local BRP dealership | With Tower

204902068

Unavailable

32

LABEL-TOWER/LEVER-PORT - Call your local BRP dealership | With Tower

219903499

Unavailable

33

LABEL-TOWER/LEVER-STBD. - Call your local BRP dealership | With Tower

219903500

Unavailable

34

Bimini Top, W/Tower | Challenger SE

269800208

$1.00

35

BIMINI TOP - Call your local BRP dealership | SE Whitout Tower

269800216

Unavailable

36

STRAP EYE - Call your local BRP dealership

204071845

Unavailable

37

STRAP EYE, STAINLESS - Call your local BRP dealership

269800358

Unavailable

38

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

39

SCREW 8-18 X 1 - Call your local BRP dealership

269800422

Unavailable

40

BIMINI POST - Call your local BRP dealership

204950033

Unavailable

41

BIMINI POST - Call your local BRP dealership

204950033

Unavailable

42

BIMINI BASE - Call your local BRP dealership

204950034

Unavailable

43

BIMINI BASE - Call your local BRP dealership

204950034

Unavailable

44

BIMINI SPACER - Call your local BRP dealership

204950031

Unavailable

45

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

46

SCREW 8-18 X 1 - Call your local BRP dealership

269800422

Unavailable

47

CAUTION LABEL, BIMINI TOP - Call your local BRP dealership

204901331

Unavailable

48

Bow Cover | Challenger SE

269800379

Unavailable

49

Cockpit Cover | SE Whitout Tower

269800380

Unavailable

50

Cockpit Cover | With Tower

269800381

Unavailable

51

SUPPORT POLE COVER - Call your local BRP dealership

269800404

Unavailable

52

TRASH CAN - Call your local BRP dealership | Challenger SE

204950095

Unavailable

53

LATCH - Call your local BRP dealership

204611805

Unavailable

54

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable
