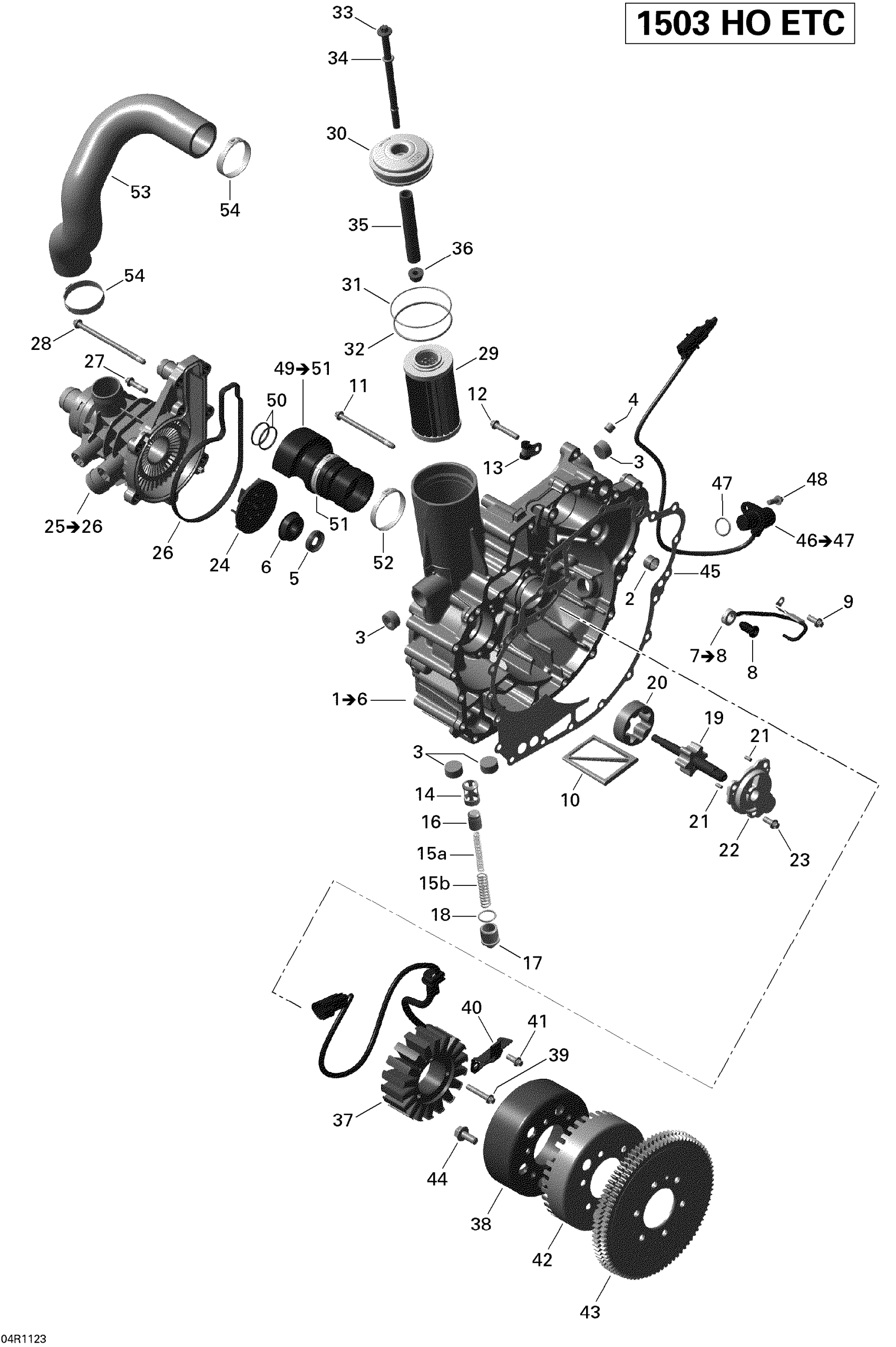

Sea-doo 230 Challenger SE 510, 2011 PTO Cover And Magneto Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes 1 to 6 This part replaces 420910521.

420481440

$577.82

2

Needle Bushing

420232482

$15.57

3

Plug Screw M20 X 1.5

420641317

$10.58

4

Plug Screw M10 X 1

420641323

$11.48

5

Oil Seal

420650315

$9.62

6

Rotary Seal

420650371

$35.72

7

OIl Spray Nozzle Ass'y | Includes 7 to 8

420856877

$47.42

8

Banjo Screw This part replaces 420840180.

420840181

$11.83

9

Torx Flange Screw M6 X 16

420641048

$2.46

10

Oil Sieve

420956950

$12.48

11

Torx Flange Screw M6 X 85

420641228

$6.11

12

Torx Flange Screw M6 X 35

420641258

$2.78

13

Clamp

420853414

$14.92

14

Valve Seat Sleeve

420256606

$24.02

15a

Compression Spring

420939401

$10.91

15b

Compression Spring

420939211

$7.16

16

Piston Valve

420256638

Unavailable

17

Plug Screw M20 X 1.5

420641052

$31.17

18

O-Ring

420230890

$4.41

19

Pump Shaft Ass'y

420837472

$45.47

20

Oil Pump Rotor 16 mm

420956675

$29.22

21

Needle Pin

420929070

$1.56

22

Oil Pump Cover

420811591

$29.87

23

Torx Flange Screw M6 X 16

420641048

$2.46

24

Impeller

420922801

$14.27

25

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$241.12

26

Water Pump Housing Gasket | Included in gasket kit

420950840

$11.39

27

Torx Flange Screw M6 X 25

420641238

$2.68

28

Torx Flange Screw M6 X 105

420641338

$6.11

29

Oil Filter

420956741

$11.14

30

Oil Filter Cover

420612081

$9.20

31

O-Ring

420850500

$2.63

32

O-Ring

420230923

$2.59

33

Hex Screw M8 X 140.5

420641104

$11.21

34

O-Ring

420950860

$3.20

35

Spacer

420857229

$16.87

36

Hex. Nut M8

420842610

$11.21

37

Stator Plate This part replaces 420889721.

420889726

$278.82

38

Magneto Flywheel

420296900

$459.52

39

Torx Flange Screw M6 X 35

420641258

$2.78

40

Retaining Plate

420926300

$12.97

41

Torx Flange Screw M6 X 16

420641048

$2.46

42

Trigger Wheel

420966851

$14.92

43

Starter Double Gear 87/86T

420834871

$250.22

44

Hex Screw

295501162

$11.47

45

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$19.47

46

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

47

O-Ring

420431580

$12.29

48

Torx Flange Screw M6 X 16

420641048

$2.46

49

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$114.37

50

O-Ring

420631612

$3.52

51

Gear Clamp 46.8-50.0MM

420853023

$6.11

52

Gear Clamp

420851653

$6.11

53

Formed Hose This part replaces 420922825.

420922828

$36.37

54

Oetiker Clamp

420851687

$9.43
