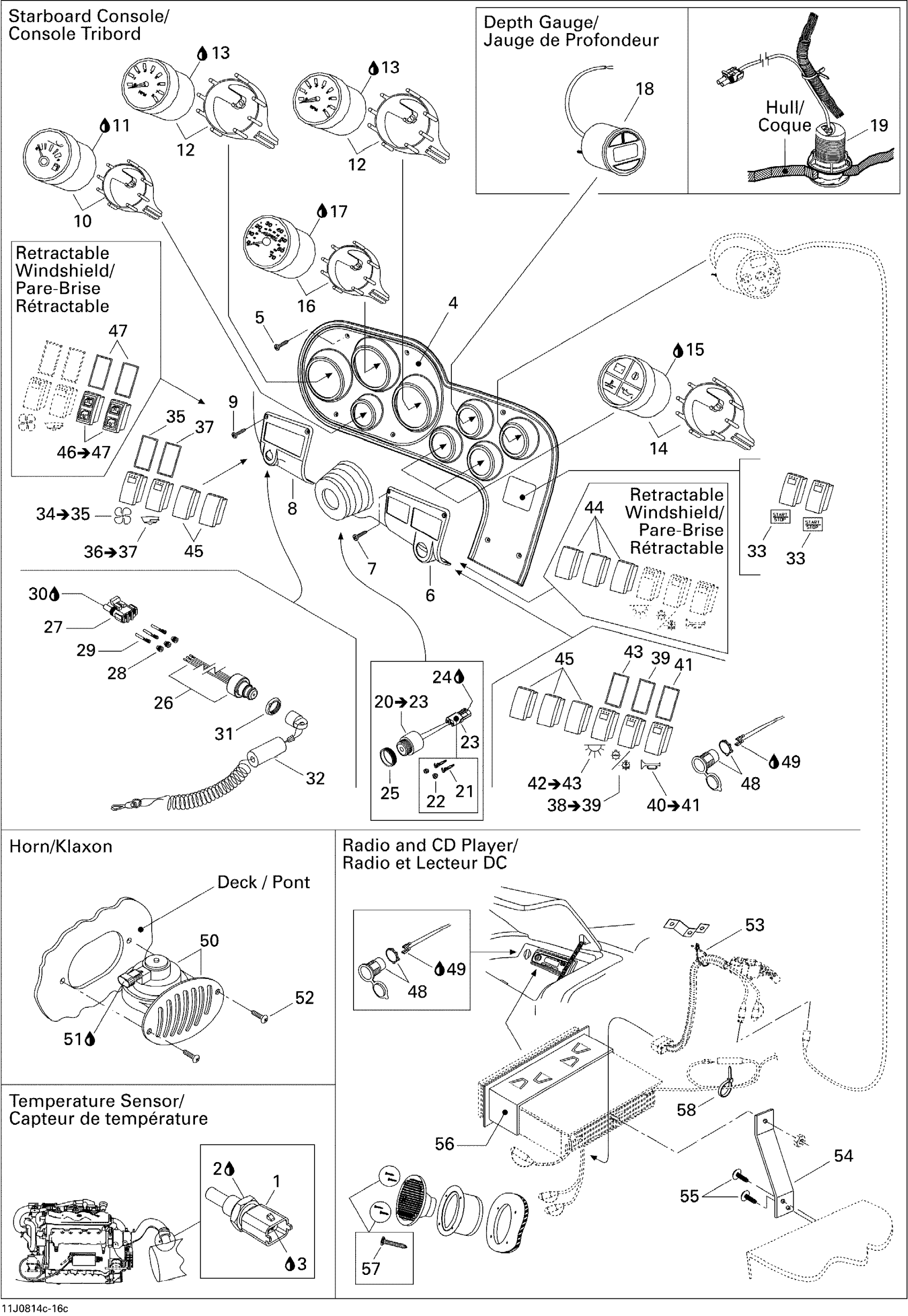

Sea-doo 230 Challenger SE 430, 2008 Electrical Accessories 3 Diagram

#

Description
Price

1

Temperature Sensor

278002895

$39.99

2

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4

Fascia

204471278

Unavailable

5

Socket Head Screw M4 X 25

205342569

Unavailable

6

RH Panel Switch

204471173

Unavailable

7

Phillips Tapping Screw 3.5 X 19

250000092

Unavailable

8

LH PANEL SWITCH - Call your local BRP dealership

204471174

Unavailable

9

Phillips Tapping Screw 3.5 X 19

250000092

Unavailable

10

Fuel Gauge

204471152

Unavailable

11

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

12

TACHOMETER GAUGE - Call your local BRP dealership

204471155

Unavailable

13

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

14

Engine Warning Gauge

204471156

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

SPEEDOMETER GAUGE - Call your local BRP dealership

204471153

Unavailable

17

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

18

Depth Gauge

204471157

Unavailable

19

Depth Sensor

204471292

$194.99

20

Buzzer Ass'y

204470913

$92.99

21

Male Terminal | XT Models

278000222

$3.19

22

Wire Seal

278000218

$4.39

23

Female Housing, 2 Circuits

278000217

$9.59

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

25

Buzzer Nut

278000707

Unavailable

26

Safety Switch This part replaces 278002325.

278002773

$114.99

27

Male Housing, 3 Circuits

278000273

$9.59

28

Wire Seal

278000218

$4.39

29

Female Terminal

278000223

$3.19

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

31

Safety Nut (DESS Switch)

278002963

$3.28

32

Safety Lanyard

204471206

$56.99

33

START/STOP SWITCH - Call your local BRP dealership

204471178

Unavailable

34

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

35

Gasket

204470132

Unavailable

36

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

37

Gasket

204470132

Unavailable

38

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

39

Gasket

204470132

Unavailable

40

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

41

Gasket

204470132

Unavailable

42

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

43

Gasket

204470132

Unavailable

44

SWITCH PLUG - Call your local BRP dealership

204470596

Unavailable

45

SWITCH PLUG - Call your local BRP dealership

204470596

Unavailable

46

WINDSHIELD SWITCH - Call your local BRP dealership | Retractable Windshield

204471167

Unavailable

47

Gasket

204470132

Unavailable

48

DC Outlet

710001248

$37.99

49

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

50

HORN - Call your local BRP dealership

204470801

Unavailable

51

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

52

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

53

Tie Wrap 142 mm

293750002

$1.25

54

RADIO SUPPORT - Call your local BRP dealership

204471194

Unavailable

55

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

56

STEREO TRIM RING - Call your local BRP dealership

204471010

Unavailable

57

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

58

Tie Wrap 94 mm | 4X4

293750001

$1.03
