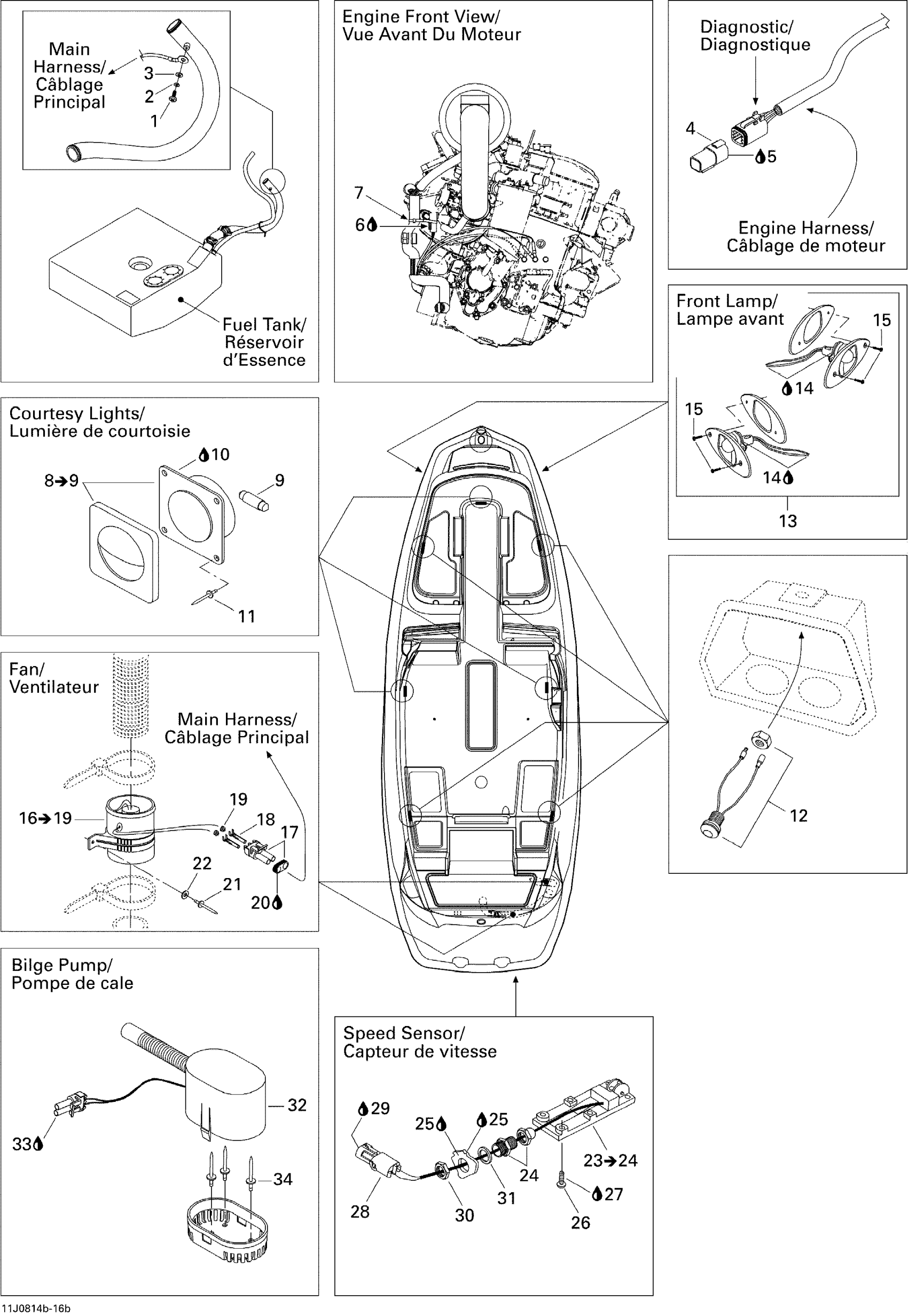

Sea-doo 230 Challenger SE 430, 2008 Electrical Accessories 2 Diagram

#

Description
Price

1

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

2

Lock Washer 4 mm

234141601

$1.15

3

Flat Washer 4 mm, Stainless

234041600

$1.15

4

Diagnostic Connector

278002704

$19.49

5

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

Tie-Rap 180 mm

414115200

$0.11

8

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

9

BULB - Call your local BRP dealership

204470081

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

12

LED Light Ass'y

204471169

Unavailable

13

LATERAL LIGHT KIT - Call your local BRP dealership

204470908

Unavailable

14

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

15

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

16

Fan Ass'y | Includes 44 to 47

204470108

$144.99

17

Male Connector, 2 Circuits

278000220

$15.49

18

Female Terminal

278000223

$3.19

19

Wire Seal

278000218

$4.39

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

Pop Rivet 3/16"

293150008

$0.50

22

Flat Washer 5 mm, Stainless

234052600

$0.77

23

Speed Sensor Ass'y | Includes 19 to 20

204471199

Unavailable

24

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

25

Silicone Sealant 51388, 300 ml

296000309

$36.99

26

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

27

Loctite 243, 10 ml

293800060

$21.49

28

Female Housing, 2 Circuits

278000217

$9.59

29

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

30

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

31

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

32

Bilge Pump

204471431

Unavailable

33

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

34

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable
