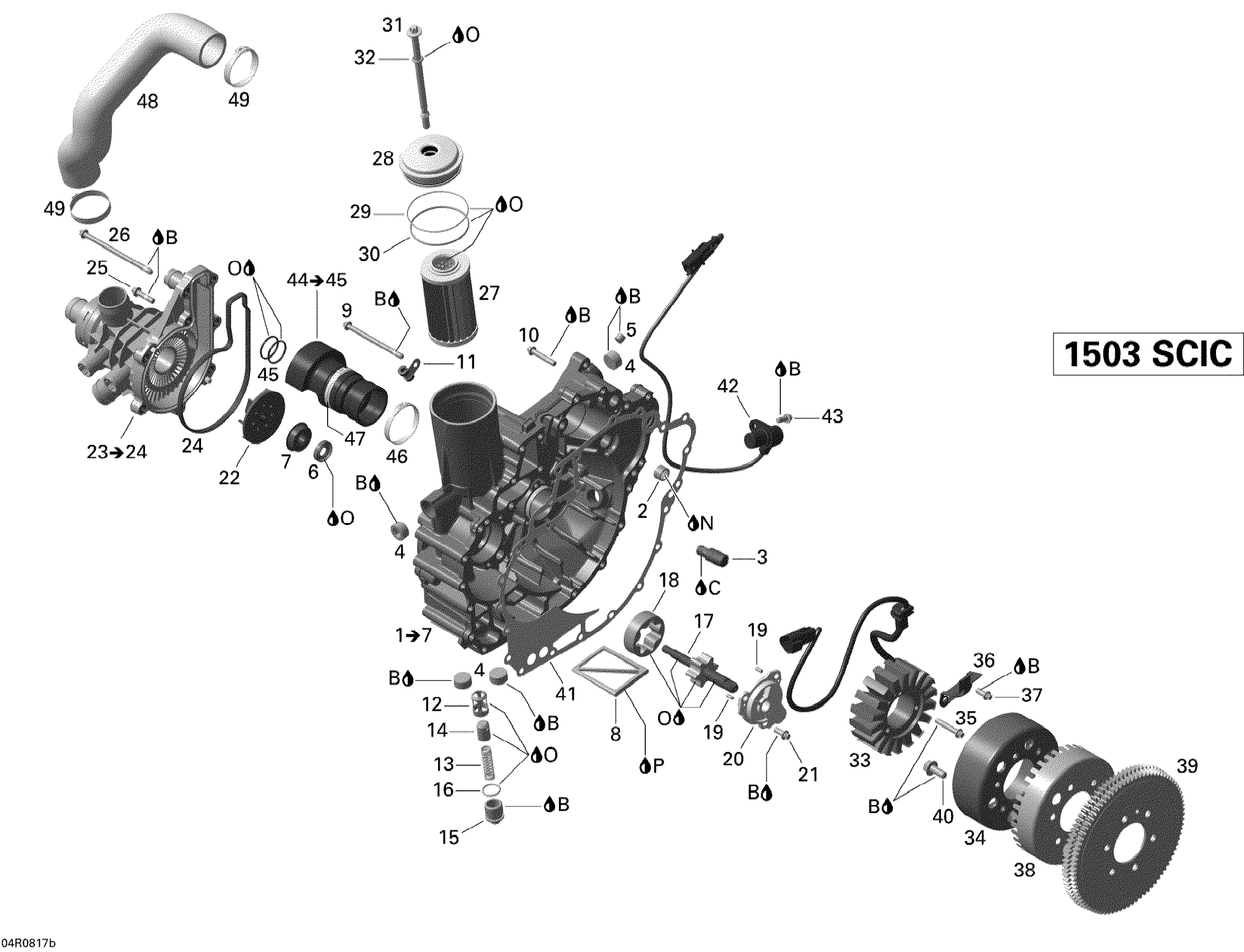

Sea-doo 230 Challenger SE 430, 2008 PTO Cover And Magneto V2 Sport Boats Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes 1 to 6 This part replaces 420910521.

420481440

$720.49

2

Needle Bushing

420232482

$20.99

3

SPRAY NOZZLE - Call your local BRP dealership

420856012

Unavailable

4

Plug Screw M20 X 1.5

420641317

$14.22

5

Plug Screw M10 X 1

420641323

$14.28

6

Oil Seal

420650315

$11.65

7

Rotary Seal

420650371

$43.49

8

Oil Sieve

420956950

$16.86

9

Torx Flange Screw M6 X 85

420641228

$7.41

10

Torx Flange Screw M6 X 35

420641258

$3.38

11

Clamp

420853414

$18.49

12

Valve Seat Sleeve

420256606

$29.49

13

Compression Spring

420939410

Unavailable

14

Piston Valve

420256638

$22.99

15

Plug Screw M20 X 1.5

420641052

$37.99

16

O-Ring

420230890

$5.39

17

Pump Shaft Ass'y

420837472

$56.99

18

Oil Pump Rotor 16 mm

420956675

$36.99

19

Needle Pin

420929070

$1.90

20

Oil Pump Cover

420811591

$37.99

21

Torx Flange Screw M6 X 16

420641048

$2.96

22

Impeller

420922801

$17.53

23

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$309.99

24

Water Pump Housing Gasket | Included in gasket kit

420950840

$15.27

25

Torx Flange Screw M6 X 25

420641238

$3.27

26

Torx Flange Screw M6 X 105

420641338

$7.41

27

Oil Filter

420956741

$13.77

28

Oil Filter Cover

420610329

$33.99

29

O-Ring

420850500

$3.17

30

O-Ring

420230923

$3.17

31

Oil Filter Screw Kit

295501207

$39.99

32

O-Ring

420950860

$3.91

33

Stator Plate This part replaces 420889721.

420889726

$319.49

34

Magneto Flywheel

420296900

$461.99

35

Torx Flange Screw M6 X 35

420641258

$3.38

36

Retaining Plate

420926300

$16.37

37

Torx Flange Screw M6 X 16

420641048

$2.96

38

Trigger Wheel

420966851

$18.49

39

Starter Double Gear 87/86T

420834871

$319.99

40

Hex Screw

295501162

$15.28

41

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$23.49

42

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

43

Torx Flange Screw M6 X 16

420641048

$2.96

44

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$142.99

45

O-Ring

420631612

$4.33

46

Gear Clamp

420851653

$7.41

47

Gear Clamp 46.8-50.0MM

420853023

$7.41

48

Formed Hose

420922822

$66.49

49

Oetiker Clamp

420851687

$11.65

B

Loctite 243, 10 ml

293800060

$21.49

C

Sealant Loctite 648

219703000

$45.99

N

Dow Corning 111, 150 g

413707000

$59.99

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99
