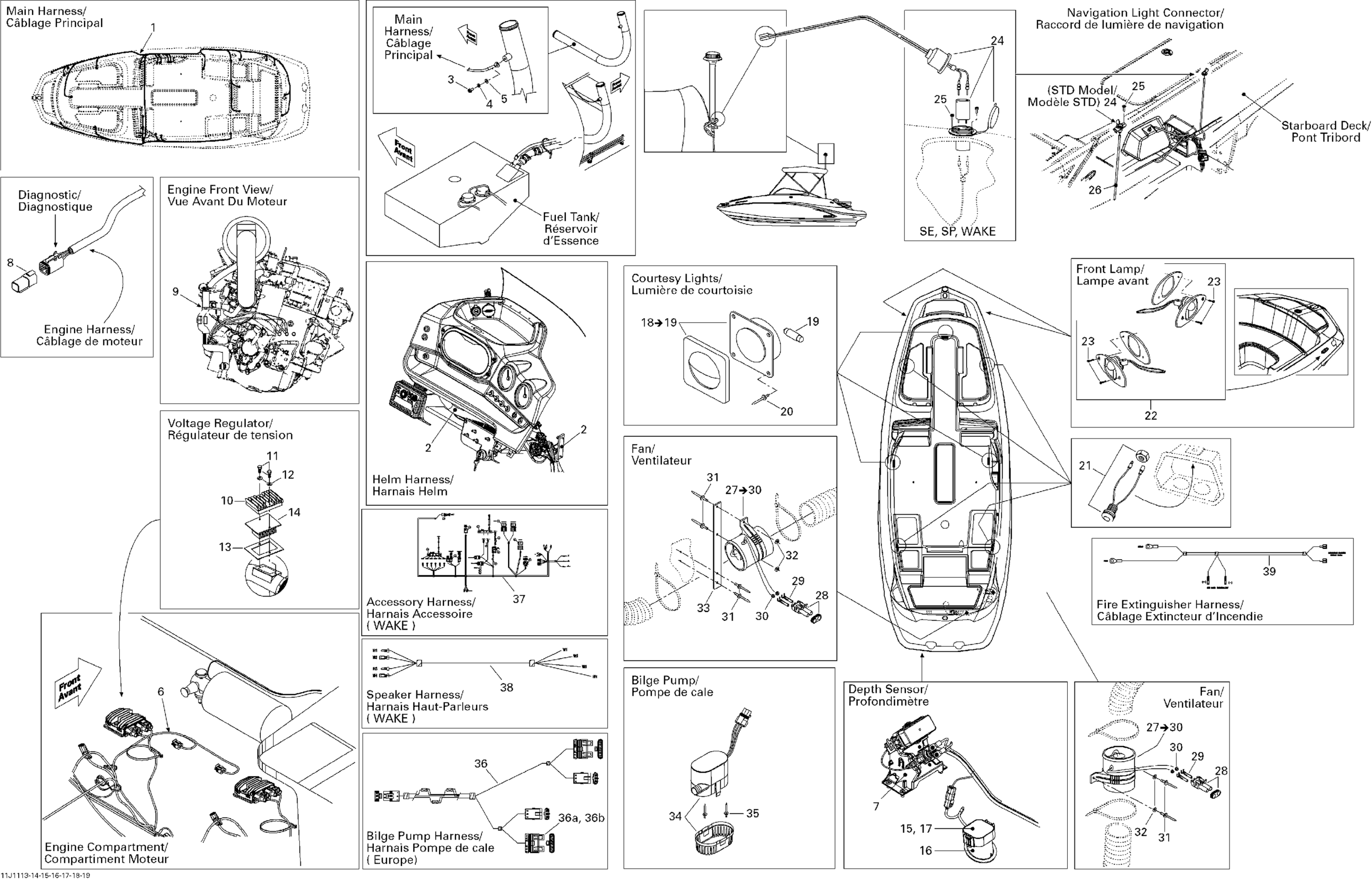

Sea-doo 230 Challenger SE 310, 2011 Electrical Accessories Diagram

#

Description
Price

1

HARNESS ACCESSORY ASS'Y - Call your local BRP dealership

278002536

Unavailable

2

HELM HARNESS - Call your local BRP dealership

278002537

Unavailable

3

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

4

Lock Washer 4 mm

234141601

$1.15

5

Flat Washer 4 mm, Stainless

234041600

$1.15

6

ENGINE HARNESS - Call your local BRP dealership

278002590

Unavailable

7

MODULE SUPPORT - Call your local BRP dealership

278002699

Unavailable

8

Diagnostic Connector

278002704

$19.49

9

Tie-Rap 180 mm

414115200

$0.11

10

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

11

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

204100226

Unavailable

12

Lock Washer 1/4”

211200025

$1.29

13

SEAL - Call your local BRP dealership

204471293

Unavailable

14

RECTIFIER HEAT SINK - Call your local BRP dealership

204471296

Unavailable

15

Depth Sensor

278002954

$373.99

16

Depth Sensor Base

278001994

$27.99

17

Gel Pad

293550042

$21.99

18

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

19

BULB - Call your local BRP dealership

204470081

Unavailable

20

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

21

LED Light Ass'y

204471169

Unavailable

22

LATERAL LIGHT KIT - Call your local BRP dealership

204470908

Unavailable

23

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

24

CONNECTOR - Call your local BRP dealership | 210 Challenger S

204130221

Unavailable

25

TAPP SCREW PHILLIP HEAD M2.9 X 13 - Call your local BRP dealership | 210 Challenger S

250200108

Unavailable

26

HARNESS-EXT. STERN LIGHT - Call your local BRP dealership

278002670

Unavailable

27

Fan Ass'y | Includes 44 to 47

204470108

$144.99

28

Male Connector, 2 Circuits

278000220

$15.49

29

Female Terminal

278000223

$3.19

30

Wire Seal

278000218

$4.39

31

Pop Rivet 3/16"

293150008

$0.50

32

Flat Washer 5 mm, Stainless

234052600

$0.77

33

BRACKET - Call your local BRP dealership

204471389

Unavailable

34

Bilge Pump

204471432

Unavailable

35

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

36

Not Available As Spare Parts

XXX

Unavailable

36a

Not Available As Spare Parts

XXX

Unavailable

36b

Not Available As Spare Parts

XXX

Unavailable

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable
