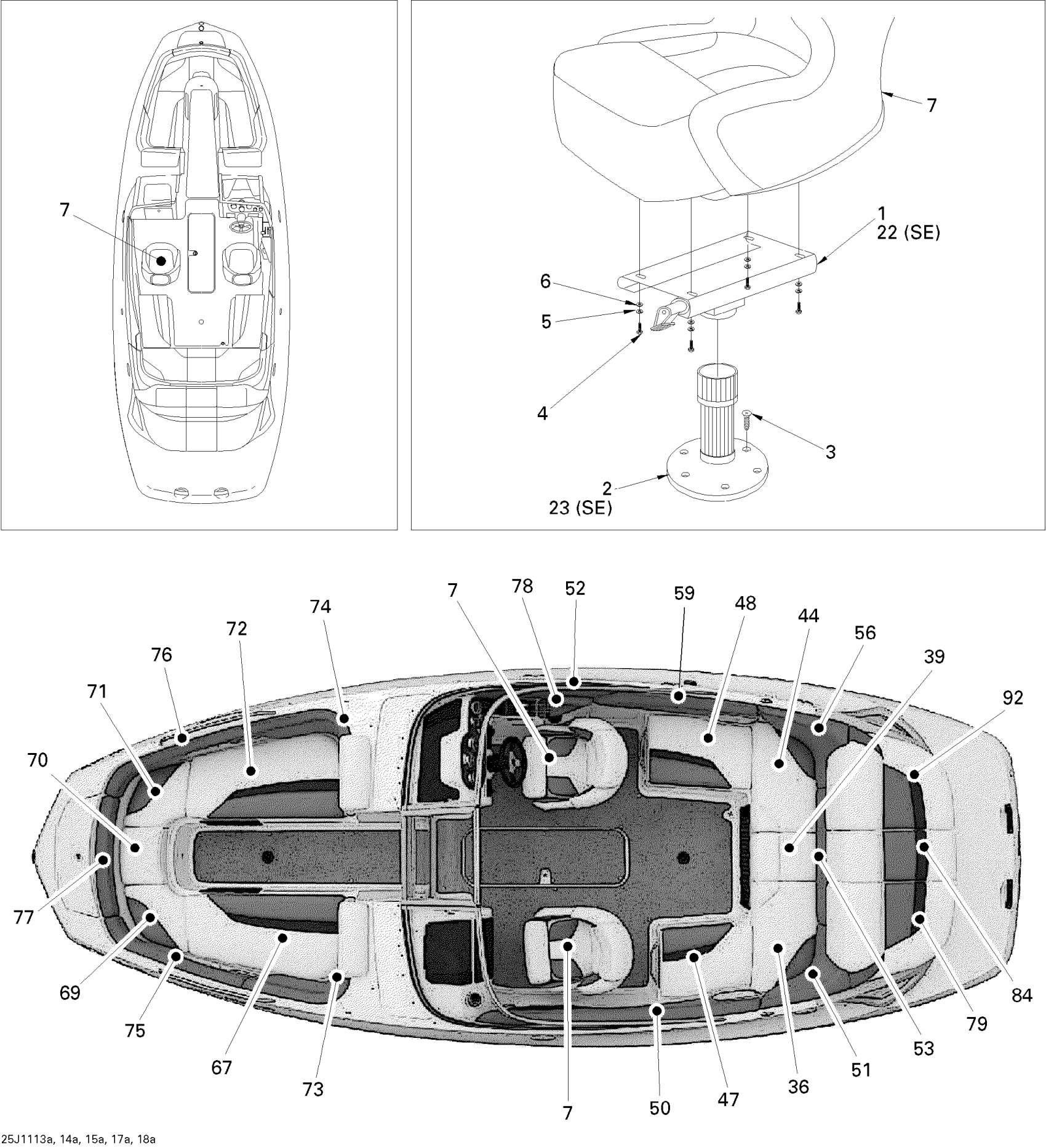

Sea-doo 230 Challenger SE 310, 2011 09- Seat 1 Diagram
#
Description
Price
1
SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership
204613742
Unavailable
2
SEAT PEDESTAL - Call your local BRP dealership
269001903
Unavailable
3
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership
204100201
Unavailable
4
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
5
Lock Washer 1/4”
211200025
$1.29
6
Flat Washer 8 mm, Stainless
234082600
$2.43
7
SEAT-BUCKET ASSY - Call your local BRP dealership | STD, SE This part replaces 269002326.
269002737
Unavailable
22
SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership | SE
204614445
Unavailable
23
SEAT PEDESTAL - Call your local BRP dealership | SE
204614446
Unavailable
36
CUSHION ASSY/REAR-PORT - Call your local BRP dealership | STD, SE This part replaces 269002584.
269002676
Unavailable
39
REAR CENTER CUSHION - Call your local BRP dealership
269002276
Unavailable
44
CUSHION ASSY/REAR-STBD - Call your local BRP dealership | STD, SE This part replaces 269002585.
269002677
Unavailable
47
WRAP ARROUND CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | STD, SE
269002587
Unavailable
48
WRAP ARROUND CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | STD, SE
269002588
Unavailable
50
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership | STD, SE
269001944
Unavailable
51
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership | STD, SE
269001945
Unavailable
52
SIDE FLAT BACKREST, STARBOARD - Call your local BRP dealership | Except WAKE
269002160
Unavailable
53
REAR CENTER BACKREST - Call your local BRP dealership | STD, SE
269001947
Unavailable
56
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership | STD, SE
269001948
Unavailable
59
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership | STD, SE
269001949
Unavailable
67
CUSHION ASS'Y, BOW PORT SIDE - Call your local BRP dealership | STD, SE
269002589
Unavailable
69
CUSHION ASS'Y, BOW-FRONT, PORT SIDE - Call your local BRP dealership | STD, SE
269002591
Unavailable
70
CUSHION ASS'Y, BOW-CENTER - Call your local BRP dealership | STD, SE
269002593
Unavailable
71
CUSHION ASS'Y, BOW STARBOARD SIDE - Call your local BRP dealership | STD, SE
269002592
Unavailable
72
CUSHION ASS'Y, BOW STARBOARD SIDE - Call your local BRP dealership | STD, SE
269002590
Unavailable
73
BOW SIDE BACKREST, PORT SIDE - Call your local BRP dealership
269002285
Unavailable
74
BOW SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership
269002286
Unavailable
75
BOW FRONT BACKREST, PORT SIDE - Call your local BRP dealership | STD, SE
269001957
Unavailable
76
BOW FRONT BACKREST, STARBOARD SIDE - Call your local BRP dealership | STD, SE
269001958
Unavailable
77
BOW CENTER BACKREST - Call your local BRP dealership
269001959
Unavailable
78
ELBOWREST ASSY/STBD - Call your local BRP dealership
269002161
Unavailable
79
SUNDECK CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | STD, SE
269002594
Unavailable
84
SUNDECK CUSHION ASS'Y, CENTER - Call your local BRP dealership | STD, SE
269002595
Unavailable
92
SUNDECK CUSHION ASS'Y, STARBORD SIDE - Call your local BRP dealership | STD, SE
269002596
Unavailable
