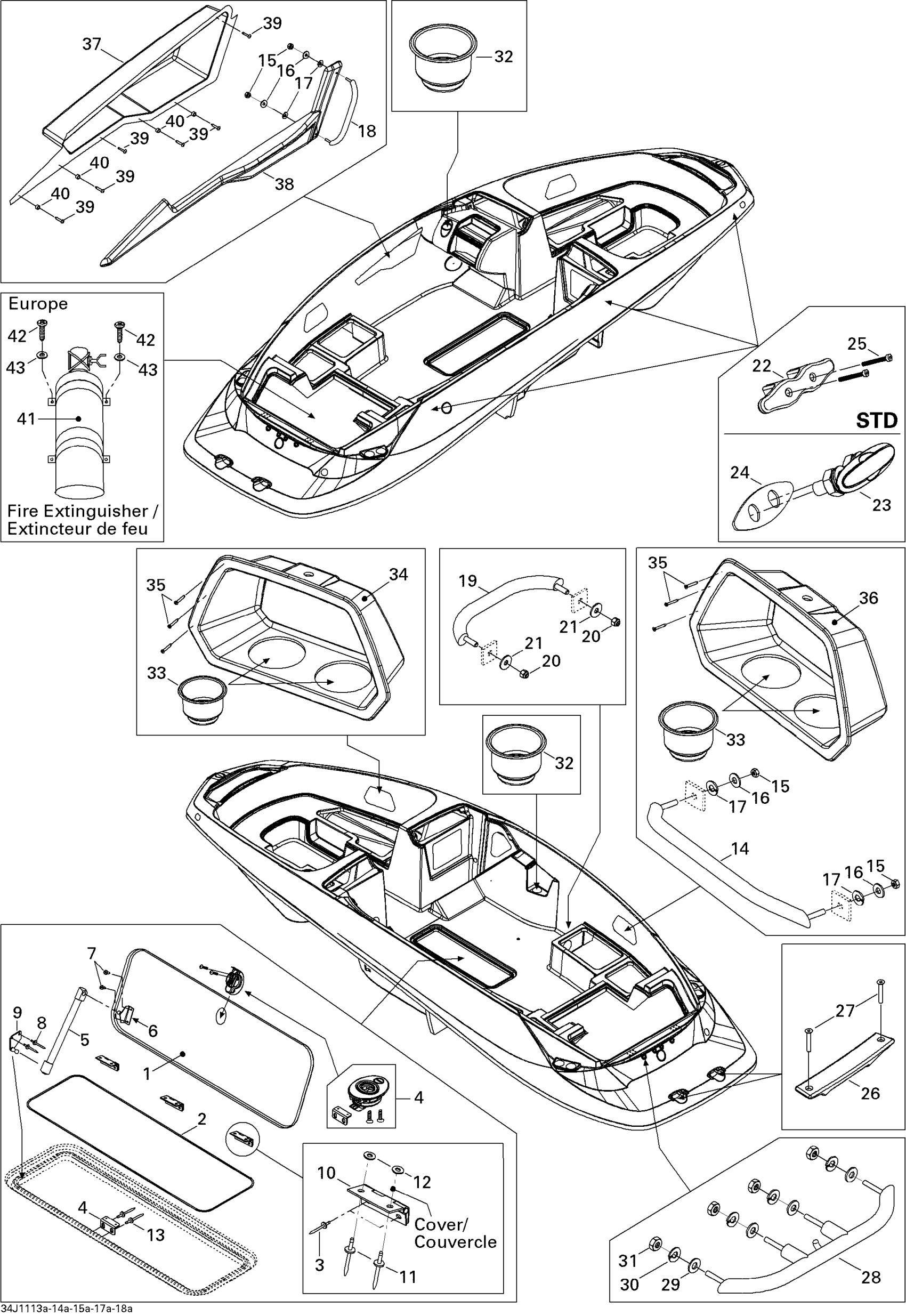

Sea-doo 230 Challenger SE 310, 2011 Body And Accessories 1 Diagram

#

Description
Price

1

SKI LOCKER LID - Call your local BRP dealership

291003153

Unavailable

2

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

3

Avdel Rivet 3/16"

293150037

$0.56

4

Latch, Stainless Steel

204073230

$139.99

5

GAS SHOCK - Call your local BRP dealership

204072218

Unavailable

6

Shock Bracket

204073074

$27.99

7

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

8

Pop Rivet 3/16"

293150043

$2.09

9

RH SHOCK BRACKET - Call your local BRP dealership

204072219

Unavailable

10

HINGE - Call your local BRP dealership

204072601

Unavailable

11

Pop Rivet 3/16"

293150088

$0.99

12

Flat Washer M5, Stainless

234051600

$0.77

13

Pop Rivet 3/16"

293150039

$1.49

14

GRAB HANDLE ASS. - Call your local BRP dealership

291003405

Unavailable

15

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

16

Flat Washer 8 mm, Stainless

234082600

$2.43

17

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

18

GRAB HANDLE 12'' - Call your local BRP dealership

262000103

Unavailable

19

GRAB HANDLE ASS'Y - Call your local BRP dealership

204073791

Unavailable

20

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

21

Flat Washer 10 mm, Stainless

234002600

$2.22

22

Not Available As Spare Parts

XXX

Unavailable

23

PULL-UP CLEAT - Call your local BRP dealership

204073198

Unavailable

24

CLEAT BACKING PLATE - Call your local BRP dealership

204073199

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

27

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

28

SKI-TOW HANDLE - Call your local BRP dealership

204073442

Unavailable

29

Flat Washer 10 mm, Stainless

234002600

$2.22

30

Lock Washer 8 mm, Stainless

234181601

$0.55

31

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

32

CUP HOLDER - Call your local BRP dealership | SE & SP

204073519

Unavailable

33

CUP HOLDER - Call your local BRP dealership | SE & SP

204073519

Unavailable

34

BOX-COAMING ASSY - Call your local BRP dealership | STD

291003264

Unavailable

35

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable

36

Coaming Box, Port Side

291003281

Unavailable

36

BOX-COAMING ASSY/STBD. - Call your local BRP dealership

291003283

Unavailable

37

BOX-COAMING/PORT - Call your local BRP dealership

204073302

Unavailable

38

FASCIA-COAMING/PORT - Call your local BRP dealership

204073305

Unavailable

39

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

40

Nylon Bushing

204130223

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable
