05- Propulsion

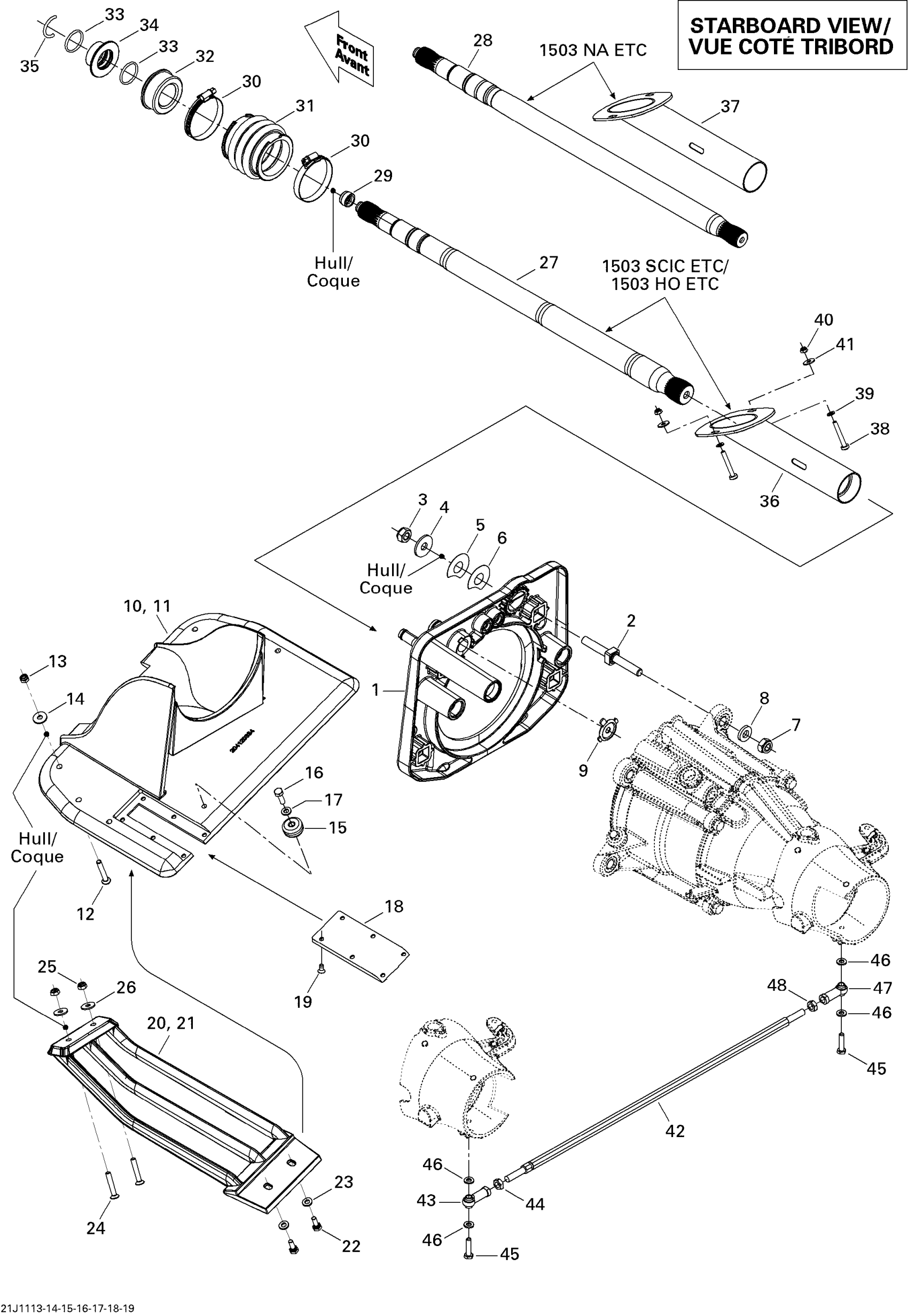

Sea-doo 230 Challenger SE 310, 2011 05- Propulsion Diagram
#
1
PUMP SUPPORT - Call your local BRP dealership
204120333
Unavailable
2
Square Stud
250300022
$20.99
3
Elastic Stop Nut M10, Brass
232501200
$2.64
4
Flat Washer 10 mm, Stainless
234002600
$2.22
5
Shim 0.3 mm
272000053
$11.49
6
NEEDS DESCRIPTION This part replaces 204120067.
0460011
$10.49
7
Elastic Stop Nut M10, Brass
232501200
$2.64
8
Flat Washer
211200051
$1.68
9
Reducer This part replaces 291001887.
291004649
$17.49
10
PLATE_RIDE - Call your local BRP dealership
204120335
Unavailable
11
PLATE_RIDE - Call your local BRP dealership
204120334
Unavailable
12
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
13
Hex. Elastic Stop Nut M6
232561600
$1.15
14
Flat Washer M6, Stainless
234062600
$0.77
15
Anode Zinc
271001813
$18.99
16
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
17
Stainless Flat Washer M6
234061600
$0.33
18
PLATE FILLER SENSOR - Call your local BRP dealership
204120341
Unavailable
19
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
20
FIXED GRATE - Call your local BRP dealership
204120336
Unavailable
21
GRATE-STBD,PAINTED This part replaces 204120337.
0462118
$209.99
22
Hex. Screw M6 X 16
207161660
$1.59
23
Stainless Flat Washer M6
234061600
$0.33
24
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
25
Hex. Elastic Stop Nut M6
232561600
$1.15
26
Flat Washer M6, Stainless
234062600
$0.77
27
Not Available As Spare Parts
XXX
Unavailable
28
Drive Shaft This part replaces 271001534.
271001724
$328.49
29
Drive Shaft Plug
272000173
$8.68
30
Norma Clamp
293650077
$7.41
31
Bellows
272000183
$28.99
32
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
33
O-Ring
293300044
$1.05
34
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
35
C-Clip
271001575
$6.11
36
Not Available As Spare Parts
XXX
Unavailable
37
SHAFT GUARD ASSY - Call your local BRP dealership This part replaces 271001717.
271001833
Unavailable
38
Phillips Screw M5 X 35
208653560
$2.22
39
Flat Washer M5, Stainless
234051600
$0.77
40
Hex. Elastic Nut M5 | X
232551600
$1.15
41
Flat Washer 5 mm, Stainless
234052600
$0.77
42
LINK ROD - Call your local BRP dealership
204120255
Unavailable
43
BALL JOINT - Call your local BRP dealership
204120075
Unavailable
44
HEX. NUT 5/16-24 - Call your local BRP dealership
211100034
Unavailable
45
Hex. Screw M6 X 30
207163060
$1.48
46
Stainless Flat Washer M6
234061600
$0.33
47
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
48
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
