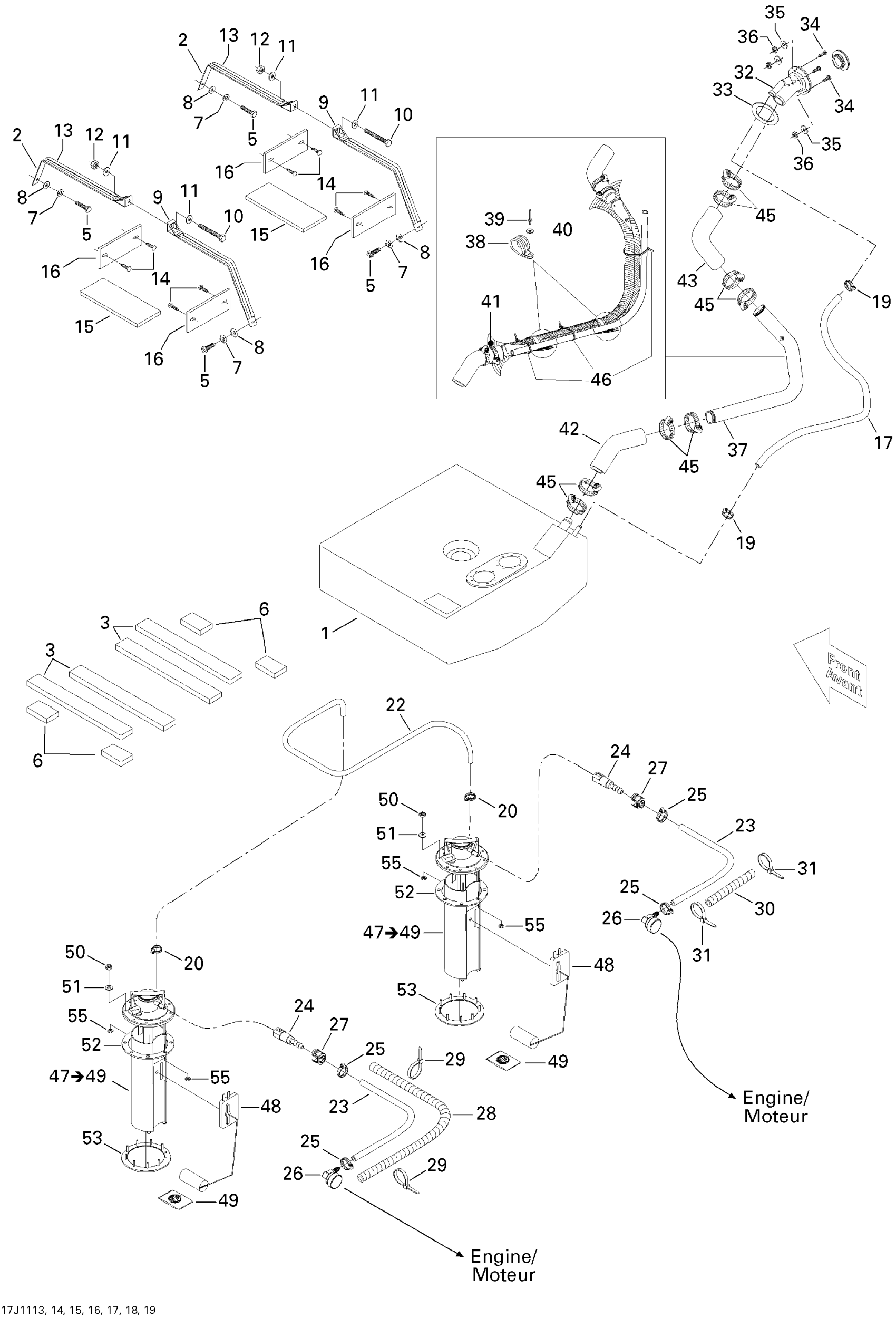

Sea-doo 230 Challenger SE 310, 2011 Fuel System Diagram

#

Description
Price

1

FUEL TANK 51 GAL - C/U - Call your local BRP dealership | Includes 10 to 10d This part replaces 275500860.

204560467

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560235

Unavailable

3

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

5

Hex. Screw M8 X 30

207183060

$1.58

6

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

7

Lock Washer 8 mm, Stainless

234181601

$0.55

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

10

HEX. SCREW M8 X 80 - Call your local BRP dealership

207188060

Unavailable

11

Flat Washer 8 mm, Stainless

234082600

$2.43

12

Hex. Elastic Nut M8

232581600

$1.48

13

PROTECTOR PAD - Call your local BRP dealership

293830044

Unavailable

14

Black, Dart

293730006

$0.99

15

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

16

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

17

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

19

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

20

Tridon Gear Clamp

293650170

$1.99

22

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

23

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

24

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

25

Norma Clamp

293650084

$4.12

26

Elbow Fitting 90°

293710105

$14.22

27

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

28

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

29

Tie Wrap 142 mm

293750002

$1.25

30

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

31

Tie Wrap 142 mm

293750002

$1.25

32

FILLER NECK - Call your local BRP dealership

275500800

Unavailable

33

SPACER - Call your local BRP dealership This part replaces 275500801.

204560188

Unavailable

34

Phillips Screw M4 X 35

208643560

Unavailable

35

Flat Washer 4 mm

234040600

$0.55

36

Elastic Stop Nut M4

232541600

$1.15

37

FILLER NECK HOSE - Call your local BRP dealership

204560435

Unavailable

38

CLAMP - Call your local BRP dealership

204560375

Unavailable

39

Pop Rivet 3/16"

293150043

$2.09

40

Flat Washer 5 mm, Stainless

234052600

$0.77

41

SPLIT CONDUIT - Call your local BRP dealership

204130408

Unavailable

42

FILLER NECK HOSE - Call your local BRP dealership

204560401

Unavailable

43

FILLER NECK HOSE - Call your local BRP dealership

204560401

Unavailable

45

NORMA CLAMP - Call your local BRP dealership

275500823

Unavailable

46

Tie Wrap 368 mm

293750008

$1.04

47

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 47 to 49

270600056

Unavailable

48

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

49

Fuel Filter, Bosch

219700368

$39.99

50

Elastic Stop Nut 5 mm

232551200

$1.47

51

Flat Washer 5 mm, Stainless

234052400

$2.85

52

Gasket

293250088

$14.99

53

C-Ring, 9 Studs

275500679

$77.49

55

Circlip 5 mm

293370002

$5.50
