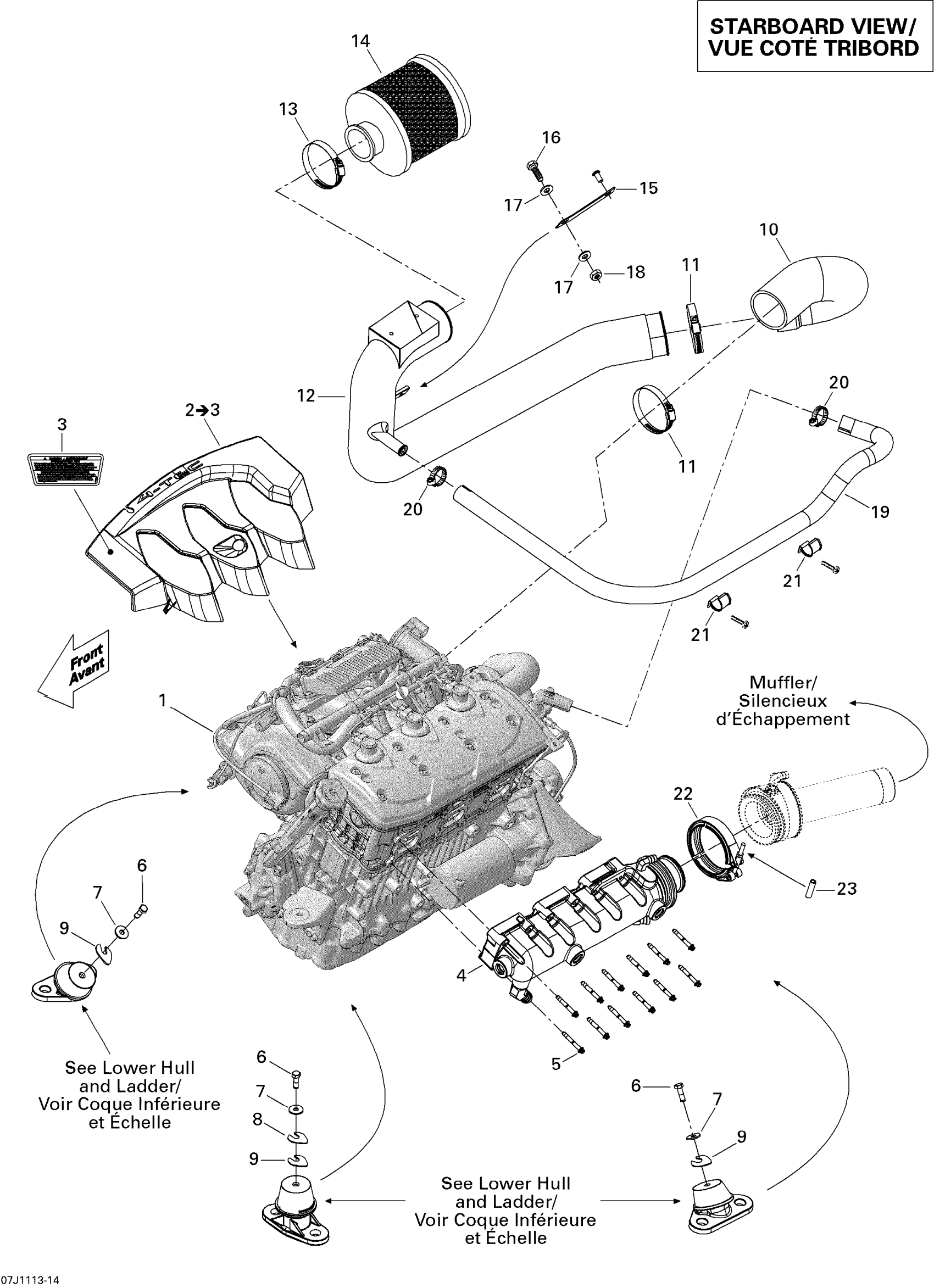

Sea-doo 230 Challenger SE 310, 2011 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150318.

420150392

$3,799.99

1

Engine Long Block This part replaces 420150318.

420150392

$3,799.99

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$651.92

5

Torx Flange Screw M6 X 45

420641198

$3.38

6

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

$1.98

8

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

9

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

10

REAR INTAKE HOSE - Call your local BRP dealership

273000302

Unavailable

11

Tridon Clamp

293650179

$8.81

12

AIR INTAKE TUBE - Call your local BRP dealership | Without Catalyst

204250437

Unavailable

13

Tridon Clamp

293650179

$8.81

14

Air Filter This part replaces 204250436.

204250466

$111.77

15

BRACKET - Call your local BRP dealership | Without Catalyst

204250404

Unavailable

16

Hex. Screw M6 X 30

207163060

$1.25

17

Flat Washer, Stainless/Neoprene

211200055

$0.66

18

Hex. Elastic Stop Nut M6

232561600

$0.92

19

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

20

Tridon Gear Clamp

293650051

$3.61

21

Retainer

275500664

$10.91

22

Exhaust Clamp

274001417

$45.47

23

Polyurethane Hose 10000Mm Long

219704410

$46.12
