09- Windshield , Retractable

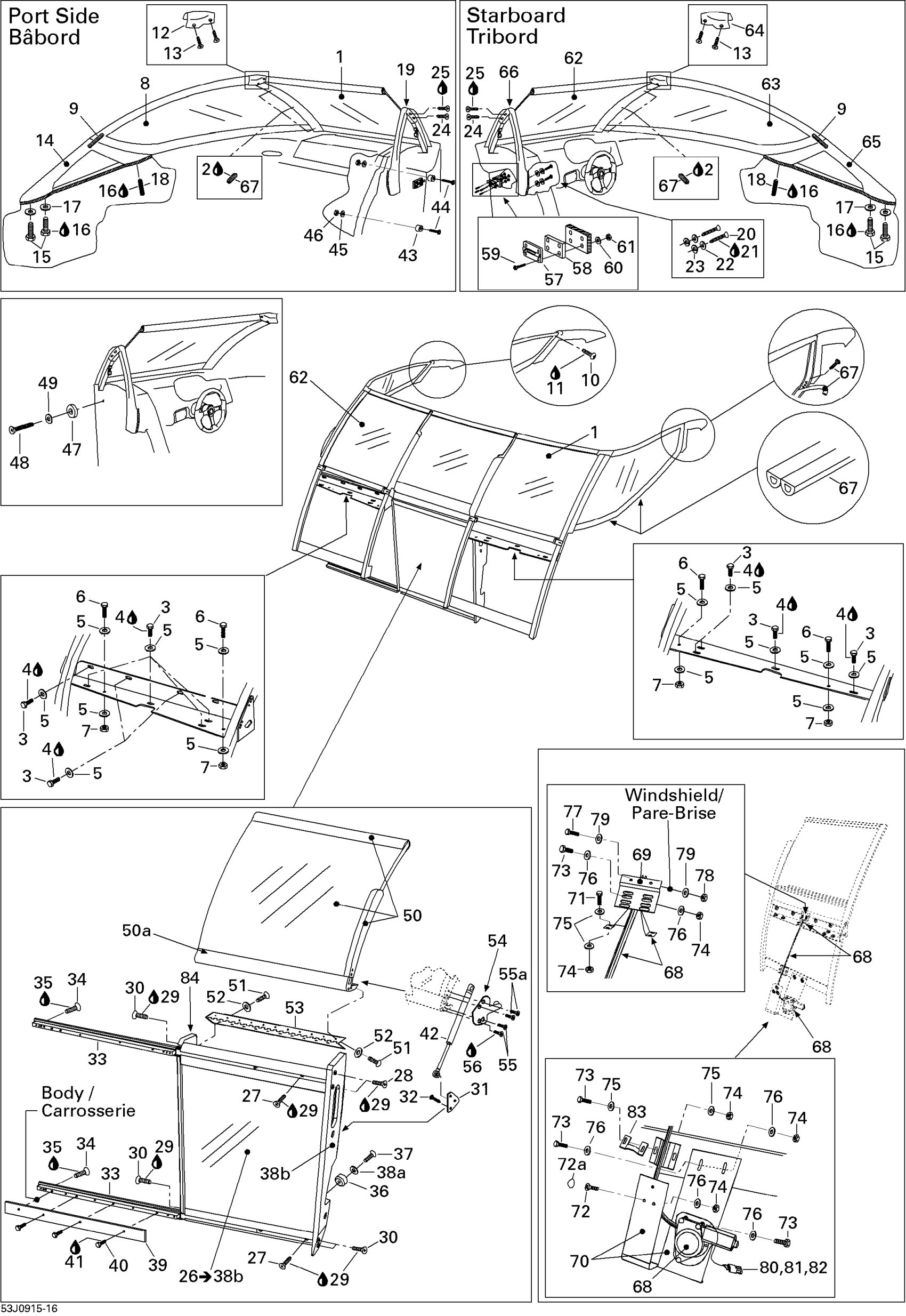

Sea-doo 230 Challenger SE, 2 x 215 SCIC, 2009 09- Windshield , Retractable Diagram
#
1
WINDSHIELD GATE ASS'Y, PORT SIDE - Call your local BRP dealership
204072991
Unavailable
2
Loctite 243, 10 ml
293800060
$21.49
3
Hex. Screw M6 X 16
207161660
$1.59
4
Loctite 243, 10 ml
293800060
$21.49
5
Flat Washer M6, Stainless
234062600
$0.77
6
Hex. Screw M6 X 25
207162560
$1.47
7
Hex. Elastic Stop Nut M6
232561600
$1.15
8
WINDSHIELD WING ASS'Y, PORT SIDE - Call your local BRP dealership
204072506
Unavailable
9
STAINLESS STEEL DOWEL PIN 1/4 - Call your local BRP dealership
204130183
Unavailable
10
SCREW M5 X 10 - Call your local BRP dealership
208651060
Unavailable
11
Loctite 243, 10 ml
293800060
$21.49
12
Corner Cap, Port Side
204072925
Unavailable
13
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
14
WINDSHIELD SUPPORT - Call your local BRP dealership
204440049
Unavailable
15
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
16
Loctite 243, 10 ml
293800060
$21.49
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
Not Available As Spare Part - Friction Washer
Unavailable
19
STANCHION, PORT SIDE - Call your local BRP dealership
204440048
Unavailable
20
Hex. Screw M8 X 18
207181860
$1.48
21
Loctite 243, 10 ml
293800060
$21.49
22
Flat Washer 8 mm, Stainless
234082600
$2.43
23
Lock Washer 8 mm, Stainless
234181601
$0.55
24
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
208451260
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
Sliding Door Ass'y | Includes 26 to 38b
204440042
Unavailable
27
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
28
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
29
Loctite 243, 10 ml
293800060
$21.49
30
Phillips Screw M6 X 25
208562560
$2.32
31
SHOCK BRACKET - Call your local BRP dealership
204073065
Unavailable
32
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
33
DRAWER SLIDE - Call your local BRP dealership
204073342
Unavailable
34
Phillips Screw M4 X 12
208641260
$1.03
35
Loctite 243, 10 ml
293800060
$21.49
36
BUMPER PAD - Call your local BRP dealership
204073815
Unavailable
37
PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership
204100147
Unavailable
38a
Flat Washer M3, Stainless
234032600
$0.55
38b
Sliding Door End Cap
204440441
Unavailable
39
Walk-Thru Door Support
204072896
Unavailable
40
Hex. Screw M6 X 30
207163060
$1.48
41
Loctite 243, 10 ml
293800060
$21.49
42
GAS SHOCK - Call your local BRP dealership
204072899
Unavailable
43
LOCATOR STUD - Call your local BRP dealership
204130166
Unavailable
44
SOCKET SCREW M5 X 35 - Call your local BRP dealership
205053560
Unavailable
45
Flat Washer M5, Stainless
234051600
$0.77
46
Hex. Elastic Nut M5 | X
232551600
$1.15
47
BUMPER PAD - Call your local BRP dealership
204073815
Unavailable
48
PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership
204100147
Unavailable
49
Flat Washer M3, Stainless
234032600
$0.55
50
CENTER DOOR WINDOW - Call your local BRP dealership
204072727
Unavailable
50a
CENTRAL WINDOW EXTRUSION - Call your local BRP dealership
204073096
Unavailable
51
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
52
Flat Washer 4 mm, Stainless
234041600
$1.15
53
HINGE - Call your local BRP dealership
204073092
Unavailable
54
Shock Support, Port Side
204072900
Unavailable
54
Shock Support, Starboard
204072901
Unavailable
55
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
208451260
Unavailable
55a
Not Available As Spare Part - Friction Washer
Unavailable
56
Loctite 243, 10 ml
293800060
$21.49
57
Latch Bolt
204100233
Unavailable
58
LATCH SPACER - Call your local BRP dealership
204440038
Unavailable
58
LATCH SPACER - Call your local BRP dealership
204440052
Unavailable
59
Phillips Screw M4 X 30
208443060
$1.48
60
Flat Washer 4 mm, Stainless
234041600
$1.15
61
Elastic Stop Nut M4
232541600
$1.15
62
WINDSHIELD GATE ASS'Y, STARBOARD - Call your local BRP dealership
204072995
Unavailable
63
Windshield Wing Ass'y, Starboard
204072517
Unavailable
64
Corner Cap, Starboard
204072926
Unavailable
65
Windshield Wing Support, Starboard
204440051
Unavailable
66
STANCHION, STARBOARD - Call your local BRP dealership
204440050
Unavailable
67
WINDSHIELD INSTALLATION HARDWARE KIT - Call your local BRP dealership
204072544
Unavailable
68
WINDSHIELD ACTUATOR - Call your local BRP dealership
204072539
Unavailable
69
WINDSHIELD ACTUATOR BRACKET - Call your local BRP dealership
204073015
Unavailable
70
ACTUATOR MOTOR SUPPORT - Call your local BRP dealership
204073014
Unavailable
71
Hex. Screw M6 X 45
207164560
$1.89
72
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
72a
CAP SCREW - Call your local BRP dealership
204440047
Unavailable
73
Hex. Screw M6 X 16
207161660
$1.59
74
Hex. Elastic Stop Nut M6
232561600
$1.15
75
Stainless Flat Washer M6
234061600
$0.33
76
Flat Washer M6, Stainless
234062600
$0.77
77
Hex. Screw M5 X 20
207152060
$1.47
78
Hex. Elastic Nut M5 | X
232551600
$1.15
79
Flat Washer M5, Stainless
234051600
$0.77
80
Female Housing, 2 Circuits
278000217
$9.59
81
Male Terminal | XT Models
278000222
$3.19
82
Wire Seal
278000218
$4.39
83
WINDSHIELD STOPPER - Call your local BRP dealership
204440029
Unavailable
84
RH End Cap Kit
204440070
Unavailable
