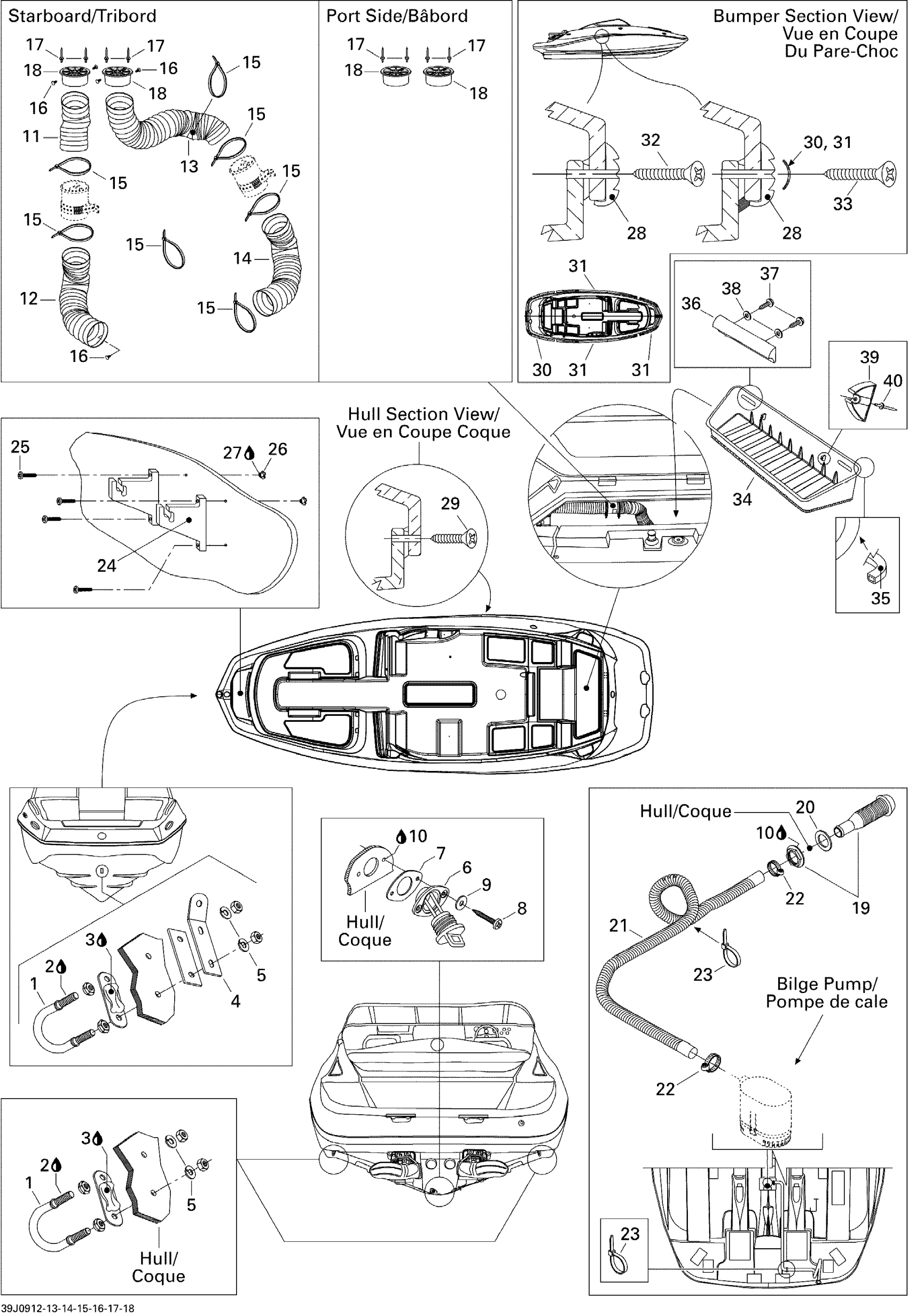

Sea-doo 230 Challenger SE, 2 x 215 SCIC, 2009 09- Hull Diagram
#
1
BOW EYE KIT 1/2? - Call your local BRP dealership
204050336
Unavailable
2
Loctite 271, 10 ml
293800005
$26.99
3
Silicone Sealant 51388, 300 ml
296000309
$36.99
4
BRACKET-TIE DOWN - Call your local BRP dealership
204050722
Unavailable
5
WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership
204100048
Unavailable
6
Drain Plug
292000187
$14.49
7
GASKET - Call your local BRP dealership
293250030
Unavailable
8
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
9
Flat Washer 4 mm, Stainless
234041600
$1.15
10
Silicone Sealant 51388, 300 ml
296000309
$36.99
11
Was 204050122 Vent Hose 4"
219704358
$25.99
12
Was 204050122 Vent Hose 4"
219704358
$25.99
13
Was 204050122 Vent Hose 4"
219704358
$25.99
14
Was 204050122 Vent Hose 4"
219704358
$25.99
15
Tie Rap, 533 mm
293750047
$2.09
16
Black, Dart
293730006
$0.99
17
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
18
Vent Grille 4 - Call your local BRP dealership
204050637
Unavailable
19
Fitting
293710162
$13.49
20
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
21
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
22
Tridon Clamp
293650016
$10.99
23
Tie-Rap 180 mm
414115200
$0.11
24
ANCHOR BRACKET - Call your local BRP dealership
204050723
Unavailable
25
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership
204100201
Unavailable
26
TEE-NUT 1/4?- 20 - Call your local BRP dealership
204100021
Unavailable
27
Loctite 243, 10 ml
293800060
$21.49
28
BUMPER TRIM, BLACK - Call your local BRP dealership | Challenger 310 SE
262000201
Unavailable
29
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
30
BUMPER TRIM, INOX. - Call your local BRP dealership | Challenger 310 SE
204050769
Unavailable
31
BUMPER TRIM, INOX. - Call your local BRP dealership | Chalenger SE
204050767
Unavailable
32
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
33
PHILLIPS TAPPING SCREW M4.2 X 38 - Call your local BRP dealership | Chalenger SE
250000395
Unavailable
34
ACCESS COVER - Call your local BRP dealership
204050708
Unavailable
35
Seal Tray 1000Mm Long
219704368
$13.99
36
HANDLE, WHITE - Call your local BRP dealership
291000608
Unavailable
37
Hex. Flange Screw K40 X 16
241141660
$1.48
38
Flat Washer 4 mm, Stainless
234042600
$1.15
39
POLE CLIP - Call your local BRP dealership | Challenger S
204070342
Unavailable
40
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
