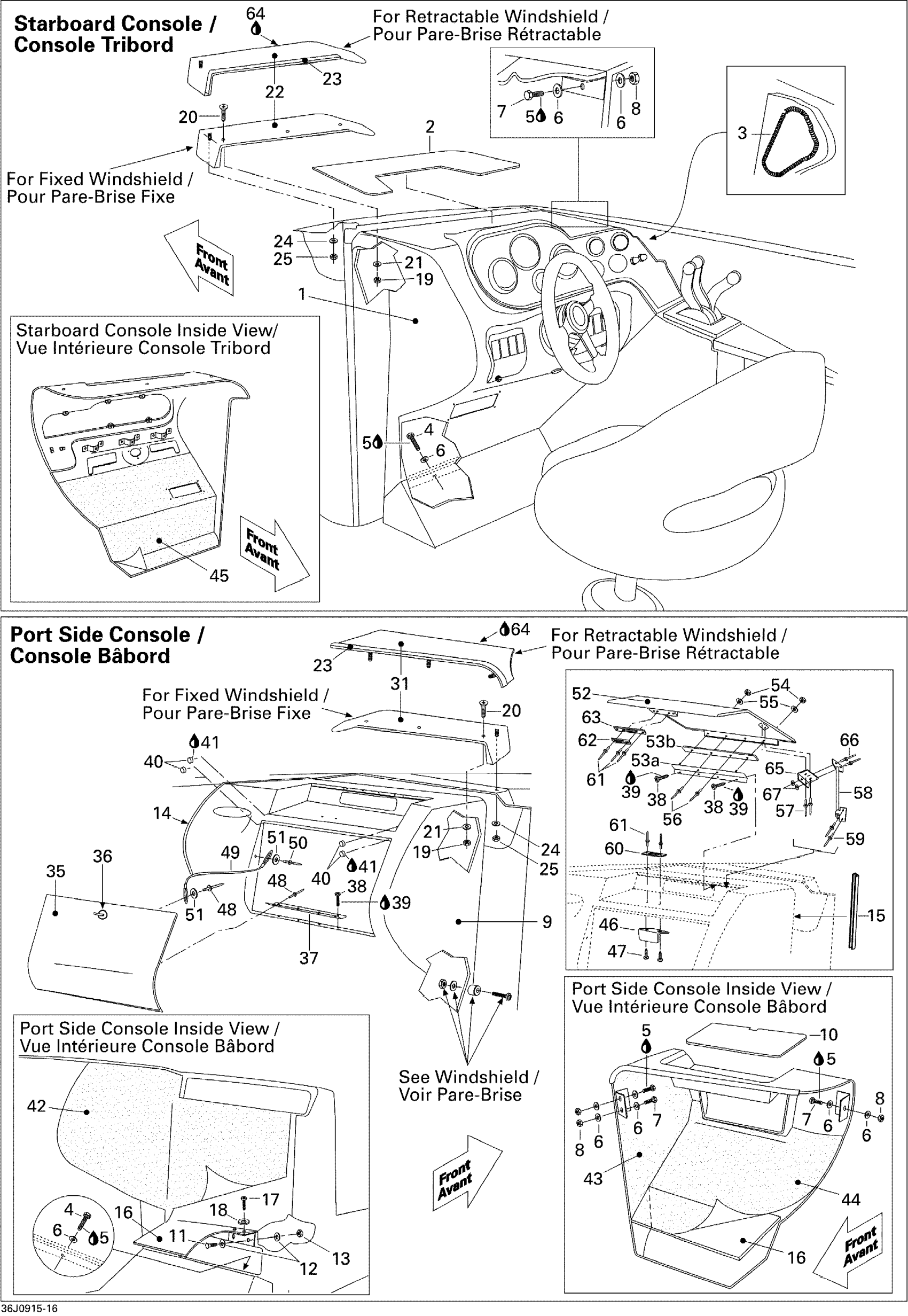

Sea-doo 230 Challenger SE, 2 x 215 SCIC, 2009 09- Front Console And Glove Box Diagram

#

Description
Price

1

Console Ass'y, Starboard

204073373

Unavailable

1

Console Ass'y, Starboard | Retractable Windshield

204073375

Unavailable

2

DASHBOARD MAT - Call your local BRP dealership

204073315

Unavailable

3

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

4

Hex. Screw M6 X 30

207163060

$1.48

5

Loctite 243, 10 ml

293800060

$21.49

6

Flat Washer M6, Stainless

234062600

$0.77

7

Hex. Screw M6 X 45

207164560

$1.89

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

CONSOLE ASS'Y, PORT SIDE - Call your local BRP dealership

204072494

Unavailable

10

MAT - Call your local BRP dealership

204073048

Unavailable

11

Hex. Screw M6 X 30

207163060

$1.48

12

Stainless Flat Washer M6

234061600

$0.33

13

Hex. Elastic Stop Nut M6

232561600

$1.15

14

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

15

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

16

GLOVEBOX TRAY - Call your local BRP dealership

204072499

Unavailable

17

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

18

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

21

Flat Washer M6, Stainless

234062600

$0.77

22

Console Cap Ass'y, Starboard

204073105

Unavailable

22

CONSOLE CAP ASS'Y, STARBOARD - Call your local BRP dealership | Retractable Windshield

204072689

Unavailable

23

TRIM, BLACK, 7/16?, METER - Call your local BRP dealership

204072752

Unavailable

24

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

24

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

25

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

25

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

31

Console Cap Ass'y, Port Side

204073102

Unavailable

31

CONSOLE CAP ASS'Y, PORT SIDE - Call your local BRP dealership | Retractable Windshield

204072688

Unavailable

35

GLOVEBOX DOOR ASS'Y - Call your local BRP dealership

204073267

Unavailable

36

LATCH - Call your local BRP dealership

204073210

Unavailable

37

HINGE, BLACK - Call your local BRP dealership

204072990

Unavailable

38

Socket Head Screw M4 X 16

205441660

$1.47

39

Loctite 243, 10 ml

293800060

$21.49

40

BUMPER - Call your local BRP dealership

204070940

Unavailable

41

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

42

DECK CARPET, PORT SIDE - Call your local BRP dealership

204072500

Unavailable

43

CONSOLE CARPET, PORT SIDE - Call your local BRP dealership

204072989

Unavailable

44

CONSOLE CARPET, PORT SIDE - Call your local BRP dealership

204072501

Unavailable

45

Console Carpet, Starboard

204072980

Unavailable

46

KEEPER - Call your local BRP dealership

204070060

Unavailable

47

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

48

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

49

RETAINER CABLE - Call your local BRP dealership

204071498

Unavailable

50

Pop Rivet 3/16"

293150008

$0.50

51

Flat Washer 5 mm, Stainless

234052600

$0.77

52

Glovebox Upper Cover

204073404

Unavailable

53a

HINGE, BLACK - Call your local BRP dealership

204073197

Unavailable

53b

SPACER - Call your local BRP dealership

204130226

Unavailable

54

Elastic Stop Nut M4

232541600

$1.15

55

Flat Washer 4 mm, Stainless

234041600

$1.15

56

Rivet 1/8”

293150057

Unavailable

57

Pop RIvet 1/8 X ,375

293150285

$0.33

58

GLOVEBOX STAY - Call your local BRP dealership

204073220

Unavailable

59

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

60

MAGNETIC CATCH - Call your local BRP dealership

204072907

Unavailable

61

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

62

LATCH BRACKET - Call your local BRP dealership

204072908

Unavailable

63

LATCH SPACER - Call your local BRP dealership

204073168

Unavailable

64

Silicone Sealant 51388, 300 ml

296000309

$36.99

65

GLOVEBOX STAY BRACKET - Call your local BRP dealership

204073309

Unavailable

66

Pop RIvet 1/8 X ,375

293150285

$0.33

67

Flat Washer M3, Stainless

234032600

$0.55
