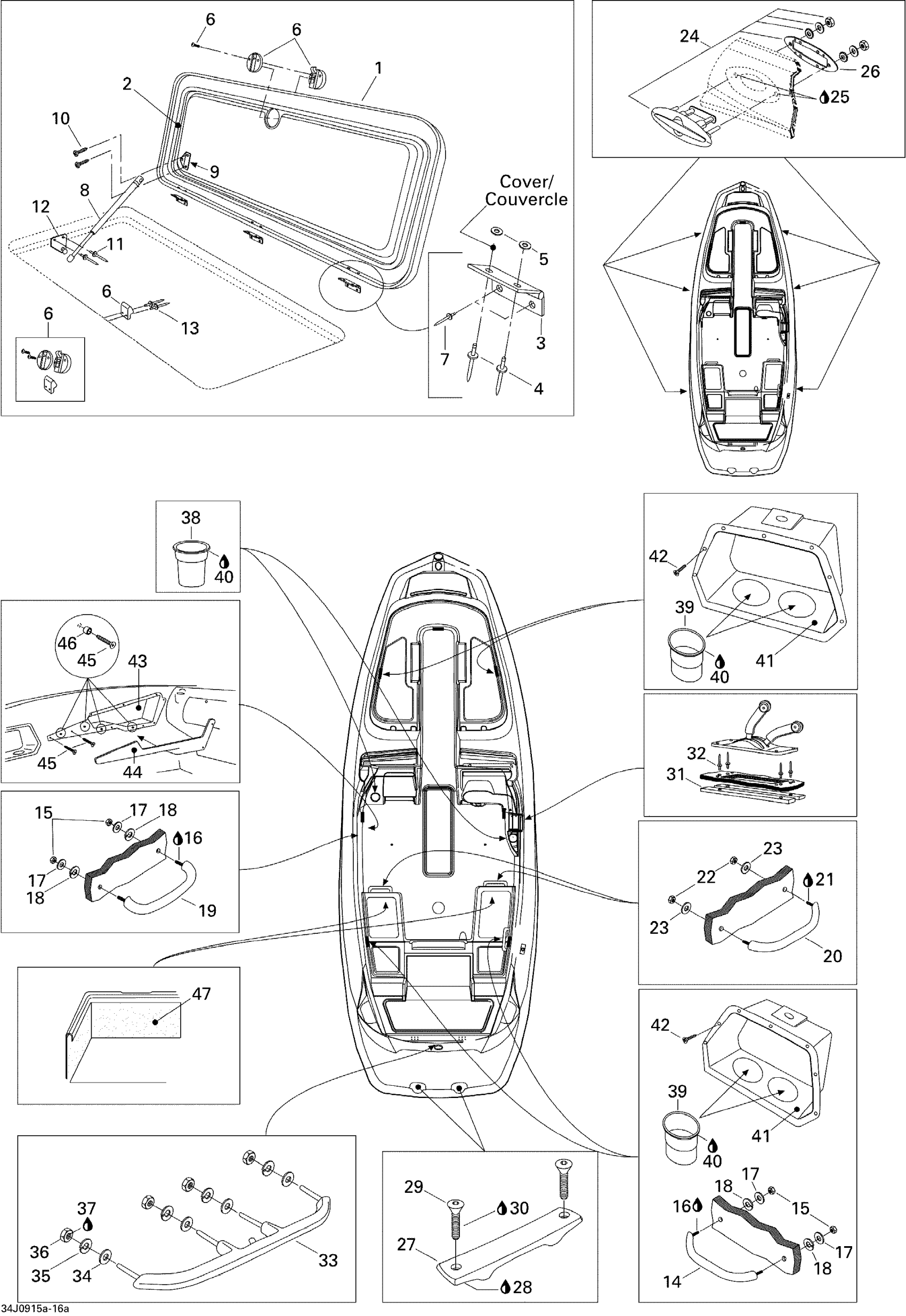

Sea-doo 230 Challenger SE, 2 x 215 SCIC, 2009 Body And Accessories 1 Diagram

#

Description
Price

1

CENTER COVER - Call your local BRP dealership

204072794

Unavailable

2

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

3

HINGE - Call your local BRP dealership

204072601

Unavailable

4

Pop Rivet 3/16"

293150088

$0.99

5

Flat Washer M5, Stainless

234051600

$0.77

6

Latch, Stainless Steel

204073230

$139.99

7

Avdel Rivet 3/16"

293150037

$0.56

8

GAS SHOCK - Call your local BRP dealership

204072218

Unavailable

9

Shock Bracket

204073074

$27.99

10

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

11

Pop Rivet 3/16"

293150043

$2.09

12

RH SHOCK BRACKET - Call your local BRP dealership

204072219

Unavailable

13

Pop Rivet 3/16"

293150039

$1.49

14

GRAB HANDLE ASS. - Call your local BRP dealership

291003405

Unavailable

15

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

19

GRAB HANDLE ASS'Y - Call your local BRP dealership

204073040

Unavailable

20

GRAB HANDLE ASS'Y - Call your local BRP dealership

204073791

Unavailable

21

Loctite 243, 10 ml

293800060

$21.49

22

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

23

Flat Washer 10 mm, Stainless

234002600

$2.22

24

PULL-UP CLEAT - Call your local BRP dealership

204073198

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

CLEAT BACKING PLATE - Call your local BRP dealership

204073199

Unavailable

27

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

28

Silicone Sealant 51388, 300 ml

296000309

$36.99

29

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

32

Pop Rivet 3/16"

293150013

$1.37

33

Ski-Tow Handle

204073394

Unavailable

34

Flat Washer 10 mm, Stainless

234002600

$2.22

35

Lock Washer 8 mm, Stainless

234181601

$0.55

36

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

37

Loctite 243, 10 ml

293800060

$21.49

38

Cup Holder

204073211

Unavailable

39

Cup Holder

204073211

Unavailable

40

Silicone Sealant 51388, 300 ml

296000309

$36.99

41

Coaming Box Ass'y

204073306

Unavailable

42

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable

43

BOX-COAMING/PORT - Call your local BRP dealership

204073302

Unavailable

44

FASCIA-COAMING/PORT - Call your local BRP dealership

204073305

Unavailable

45

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

46

Nylon Bushing

204130223

Unavailable

47

STERN STORAGE CARPET - Call your local BRP dealership

204072944

Unavailable
