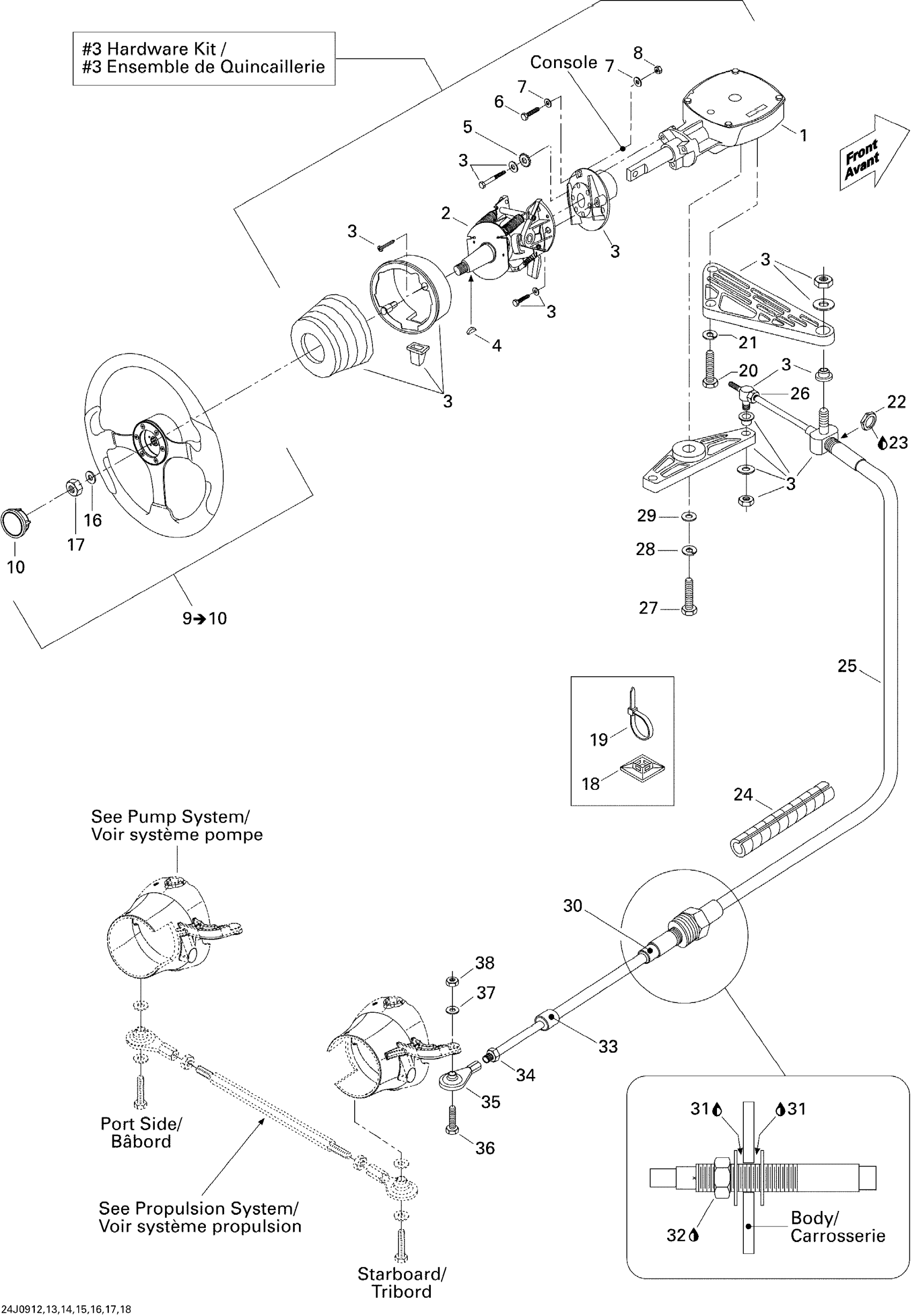

Sea-doo 230 Challenger SE, 2 x 215 SCIC, 2009 07- Steering Diagram
#
Description
Price
1
Helm
204390486
Unavailable
2
TILT MECANISM ASS'Y - Call your local BRP dealership
204390529
Unavailable
3
Hardware Kit
204390531
Unavailable
4
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
5
Serrated Lock Washer 8 mm
234481608
$1.15
6
Hex. Screw M6 X 40
207164060
$3.38
7
Stainless Flat Washer M6
234061600
$0.33
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
Steering Wheel Ass'y | 210 CHALL
204390543
Unavailable
10
CENTER CAP - Call your local BRP dealership | SE
204390549
Unavailable
16
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
17
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
18
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
19
Tie Wrap 94 mm | 4X4
293750001
$1.03
20
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
21
Lock Washer 1/4”
211200025
$1.29
22
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
23
Loctite 243, 10 ml
293800060
$21.49
24
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.
204130176
Unavailable
25
Steering Cable
204390475
Unavailable
26
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
27
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
28
Lock Washer 1/4”
211200025
$1.29
29
Flat Washer M6, Stainless
234062600
$0.77
30
SEAL SWIVEL - Call your local BRP dealership
277000440
Unavailable
31
Silicone Sealant 51388, 300 ml
296000309
$36.99
32
Loctite 243, 10 ml
293800060
$21.49
33
Terminal Wiper
277000441
$11.99
34
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
35
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
36
Hex. Screw M6 X 35
207063560
$2.22
37
Stainless Flat Washer M6
234061600
$0.33
38
Hex. Elastic Stop Nut M6
232561600
$1.15
