10- Electrical System Battery Compartment

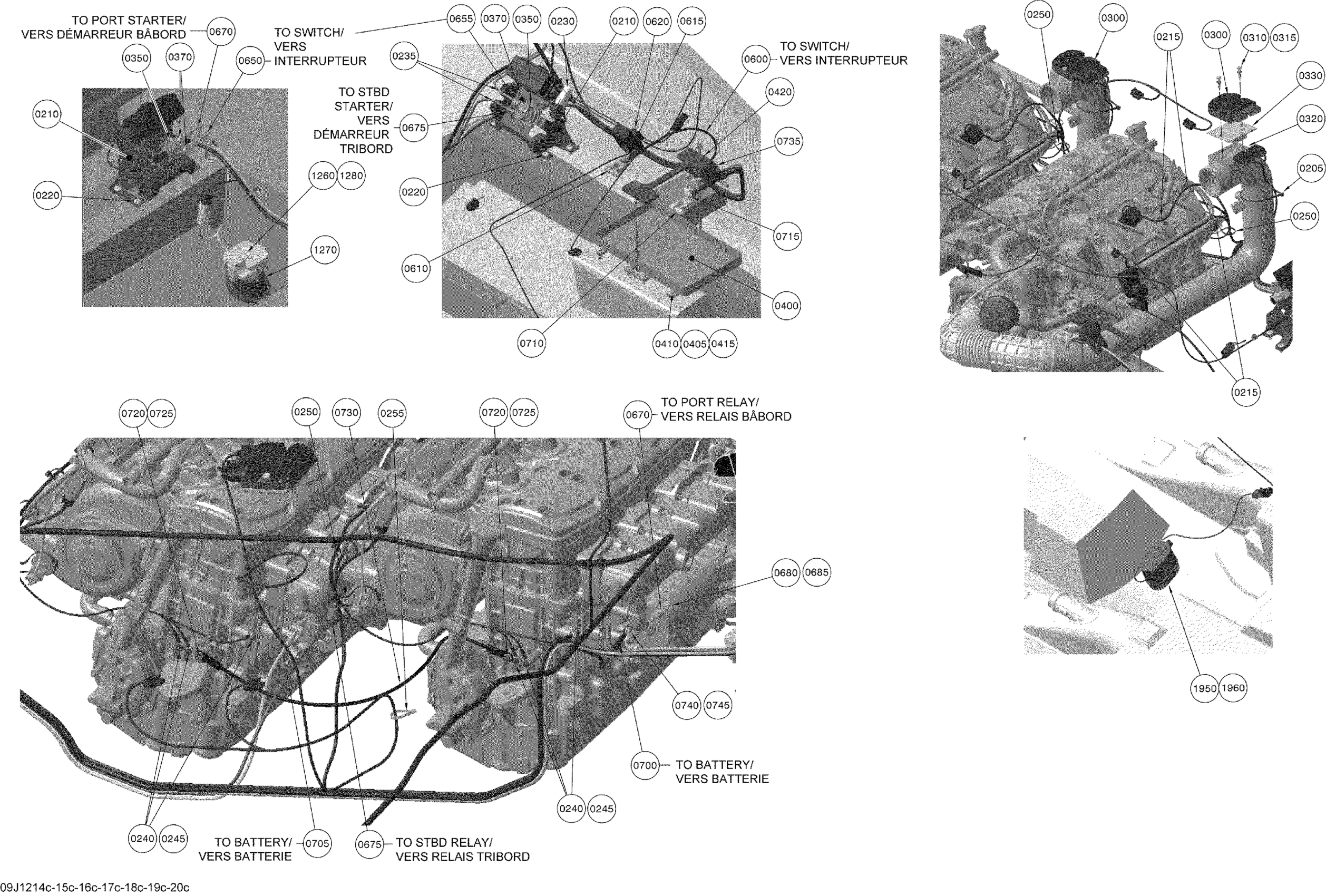

Sea-doo 230 Challenger & Challenger SE 310, 2012 10- Electrical System Battery Compartment Diagram
#
205
Tie Wrap 368 mm
293750008
$1.04
210
MODULE SUPPORT - Call your local BRP dealership
278002699
Unavailable
215
Tie-Rap 206 mm
293750027
$2.89
220
Pop Rivet 3/16"
293150123
$4.29
230
Diagnostic Connector
278002704
$19.49
235
Tie-Rap 180 mm
414115200
$0.11
240
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
245
Stainless Flat Washer M6
234061600
$0.33
250
Tie-Rap 180 mm
414115200
$0.11
255
Tie-Rap 180 mm
414115200
$0.11
300
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
310
HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst
204100226
Unavailable
315
Lock Washer 1/4”
211200025
$1.29
320
SEAL - Call your local BRP dealership
204471293
Unavailable
330
RECTIFIER HEAT SINK - Call your local BRP dealership
204471296
Unavailable
350
Starter Relay
278003012
$42.49
370
Hex. Elastic Stop Nut M6
232561600
$1.15
400
BATTERY SUPPORT - Call your local BRP dealership
204471008
Unavailable
405
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
410
Socket Head Screw M6 X 25
205062560
$1.69
415
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
420
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
600
POSITIF SWITCH CABLE - Call your local BRP dealership
204471193
Unavailable
610
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
615
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
620
RED BOOT - Call your local BRP dealership
204470269
Unavailable
650
RED CABLE, PORT SIDE - Call your local BRP dealership
204471190
Unavailable
655
RED CABLE - Call your local BRP dealership
204471423
Unavailable
670
Red Cable
204471188
Unavailable
675
RED CABLE, STARBOARD - Call your local BRP dealership
204471187
Unavailable
680
Hex. Elastic Stop Nut M6
232561600
$1.15
685
Stainless Flat Washer M6
234061600
$0.33
700
GROUND CABLE - Call your local BRP dealership
204471191
Unavailable
705
GROUND CABLE - Call your local BRP dealership
204471192
Unavailable
710
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
715
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
720
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
725
Flat Washer M6, Stainless
234062600
$0.77
730
GROUND CABLE - Call your local BRP dealership
204470839
Unavailable
735
BOOT-BLACK - Call your local BRP dealership
278002575
Unavailable
740
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
745
Stainless Flat Washer M6
234061600
$0.33
1260
Depth Sensor
278002954
$373.99
1270
Depth Sensor Base
278001994
$27.99
1280
Gel Pad
293550042
$21.99
1950
Bilge Pump
204471432
Unavailable
1960
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
