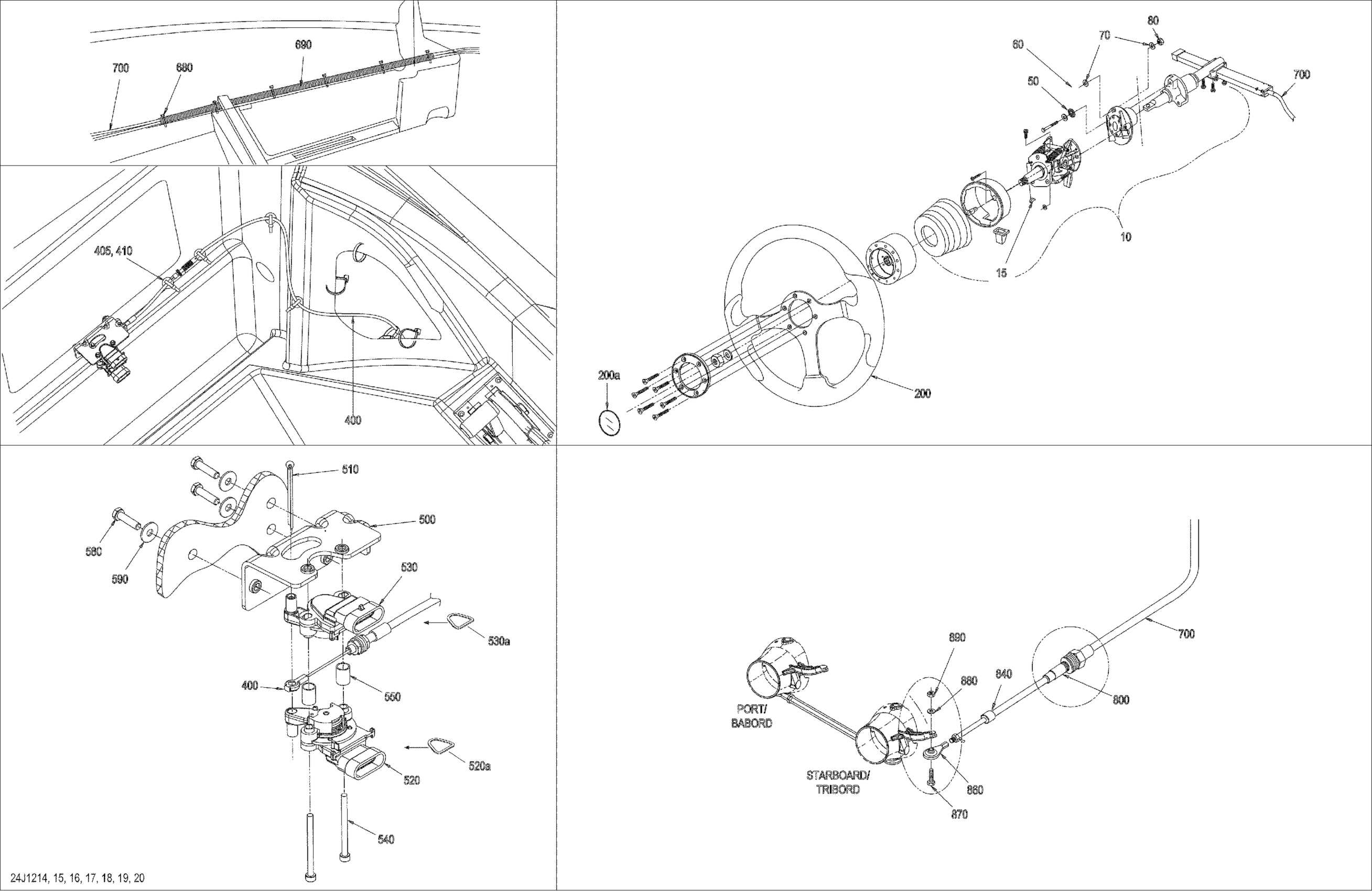

Sea-doo 230 Challenger & Challenger SE 310, 2012 Steering Diagram

#

Description
Price

10

HELM TILT ASS'Y - Call your local BRP dealership | Twin Engine Models

277001690

Unavailable

15

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

50

Serrated Lock Washer 8 mm

234481608

$1.15

60

Hex. Screw M6 X 40

207164060

$3.38

70

Stainless Flat Washer M6

234061600

$0.33

80

Hex. Elastic Stop Nut M6

232561600

$1.15

200

Steering Wheel Ass'y | 210 CHALL

204390543

Unavailable

200a

CENTER CAP - Call your local BRP dealership | SE

204390549

Unavailable

400

THROTTLE CABLE - Call your local BRP dealership

277001780

Unavailable

405

Mount Dart

293730040

$1.04

410

Tie Wrap 142 mm

293750002

$1.25

500

SENSOR BRACKET - Call your local BRP dealership

277001694

Unavailable

510

Not Available As Spare Part - Friction Washer

Unavailable

520

RH THROTTLE SENSOR - Call your local BRP dealership | Twin Engine Models

277001726

Unavailable

520a

O-Ring

270000544

$4.65

530

SENSOR_POSITION THROTTLE - Call your local BRP dealership

277001727

Unavailable

530a

O-Ring

270000544

$4.65

540

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

550

SPACER - Call your local BRP dealership

204390638

Unavailable

580

Hex. Screw M5 X 20

207152060

$1.47

590

Flat Washer 5 mm, Stainless

234052600

$0.77

680

Tie Wrap 142 mm

293750002

$1.25

690

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

700

STEERING CABLE - Call your local BRP dealership

277001866

$499.99

800

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

840

Terminal Wiper

277000441

$11.99

860

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

870

Hex. Screw M6 X 35

207063560

$2.22

880

Stainless Flat Washer M6

234061600

$0.33

890

Hex. Elastic Stop Nut M6

232561600

$1.15
