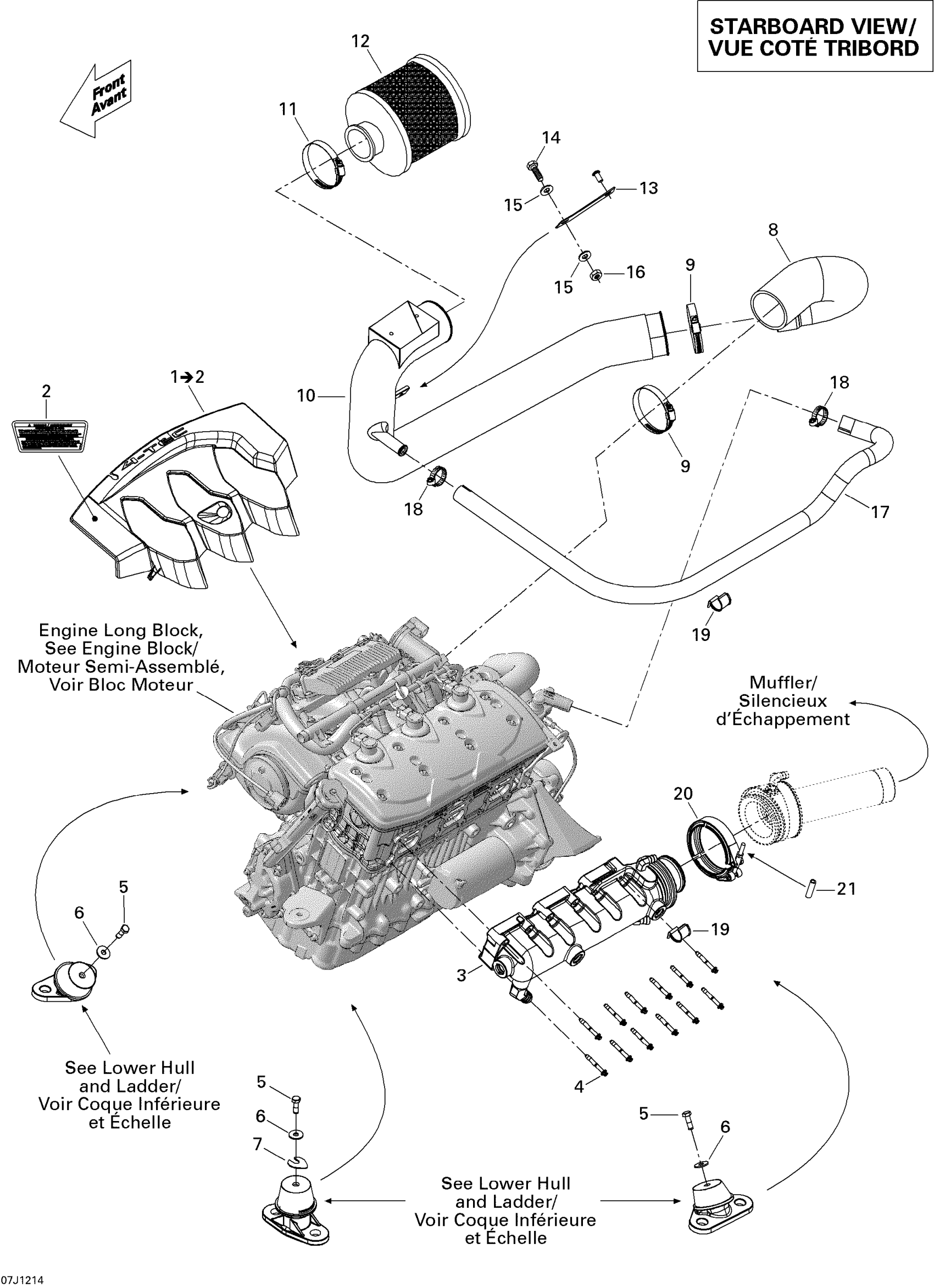

Sea-doo 230 Challenger & Challenger SE 310, 2012 Engine And Air Intake Silencer Diagram

#

Description
Price

1

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

2

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

3

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

4

Torx Flange Screw M6 X 45

420641198

$4.12

5

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

8

REAR INTAKE HOSE - Call your local BRP dealership

273000302

Unavailable

9

Tridon Clamp

293650179

$11.49

10

AIR INTAKE TUBE - Call your local BRP dealership | Without Catalyst

204250437

Unavailable

11

Tridon Clamp

293650179

$11.49

12

Air Filter This part replaces 204250436.

204250466

$137.99

13

BRACKET - Call your local BRP dealership | Without Catalyst

204250404

Unavailable

14

Hex. Screw M6 X 30

207163060

$1.48

15

Flat Washer, Stainless/Neoprene

211200055

$0.73

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

18

Tridon Gear Clamp

293650051

$4.19

19

Retainer

275500664

$14.75

20

Exhaust Clamp

274001417

$58.99

21

Polyurethane Hose 10000Mm Long

219704410

$56.99
