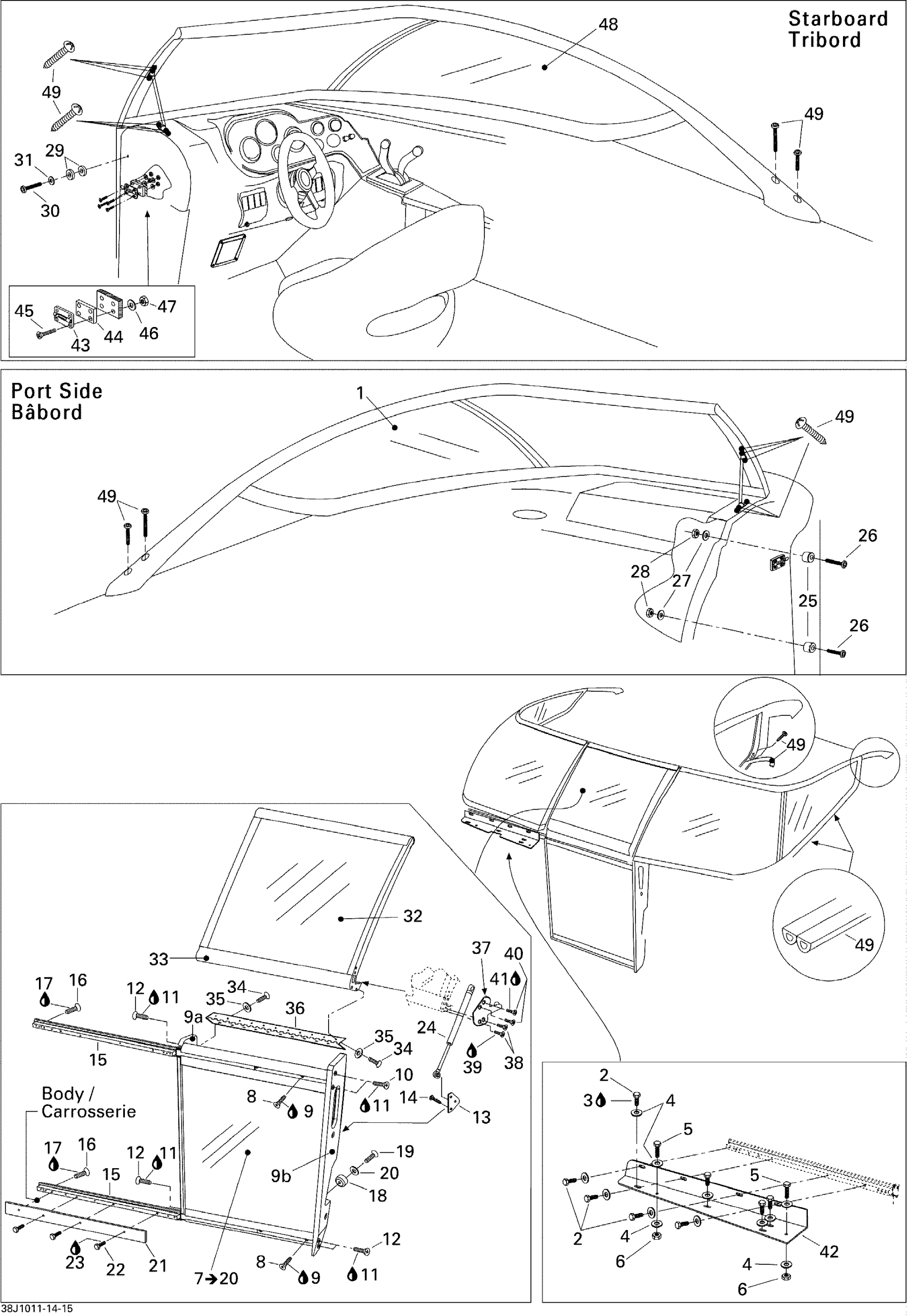

Sea-doo 230 Challenger 310, 2x155 1503NA, 2010 09- Windshield, Fixed Diagram

#

Description
Price

1

WINDSHIELD WING ASS'Y - Call your local BRP dealership | Port

204440006

Unavailable

2

Hex. Screw M6 X 16

207161660

$1.59

3

Loctite 243, 10 ml

293800060

$21.49

4

Flat Washer M6, Stainless

234062600

$0.77

5

Hex. Screw M6 X 25

207162560

$1.47

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

SLIDING DOOR ASS'Y - Call your local BRP dealership | Includes 7 to 20

204440068

Unavailable

8

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

9a

END CAP RH - Call your local BRP dealership

204440069

Unavailable

9b

SLIDING DOOR END CAP - Call your local BRP dealership

204440037

Unavailable

10

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

11

Loctite 243, 10 ml

293800060

$21.49

12

Phillips Screw M6 X 25

208562560

$2.32

13

SHOCK BRACKET - Call your local BRP dealership

204073065

Unavailable

14

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

15

DRAWER SLIDE - Call your local BRP dealership

204073342

Unavailable

16

Phillips Screw M4 X 12

208641260

$1.03

17

Loctite 243, 10 ml

293800060

$21.49

18

Rubber Stopper

293830043

Unavailable

19

PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership

204100147

Unavailable

20

Flat Washer M3, Stainless

234032600

$0.55

21

Walk-Thru Door Support

204072896

Unavailable

22

Hex. Screw M6 X 30

207163060

$1.48

23

Loctite 243, 10 ml

293800060

$21.49

24

GAS SHOCK - Call your local BRP dealership

204072899

Unavailable

25

LOCATOR STUD - Call your local BRP dealership

204130166

Unavailable

26

SOCKET SCREW M5 X 35 - Call your local BRP dealership

205053560

Unavailable

27

Flat Washer M5, Stainless

234051600

$0.77

28

Hex. Elastic Nut M5 | X

232551600

$1.15

29

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

30

PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership

204100147

Unavailable

31

Flat Washer M3, Stainless

234032600

$0.55

32

CENTER DOOR ASS'Y - Call your local BRP dealership

204440008

Unavailable

33

EXTRUSION - Call your local BRP dealership

204440003

Unavailable

34

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

35

Flat Washer 4 mm, Stainless

234041600

$1.15

36

HINGE - Call your local BRP dealership

204073092

Unavailable

37

SHOCK BRACKET - Call your local BRP dealership | Port

204440043

Unavailable

37

SHOCK BRACKET - Call your local BRP dealership | Starboard

204440044

Unavailable

38

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

39

Loctite 243, 10 ml

293800060

$21.49

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Loctite 243, 10 ml

293800060

$21.49

42

SLINDING DOOR SUPPORT - Call your local BRP dealership

204440017

Unavailable

43

Latch Bolt

204100233

Unavailable

44

LATCH SPACER - Call your local BRP dealership

204440038

Unavailable

44

LATCH SPACER - Call your local BRP dealership

204440052

Unavailable

45

Phillips Screw M4 X 30

208443060

$1.48

46

Flat Washer 4 mm, Stainless

234041600

$1.15

47

Elastic Stop Nut M4

232541600

$1.15

48

WINDSHIELD WING ASS'Y - Call your local BRP dealership | Starboard

204440007

Unavailable

49

HARDWARE KIT - Call your local BRP dealership

204440009

Unavailable
