09- Seat, Rear View

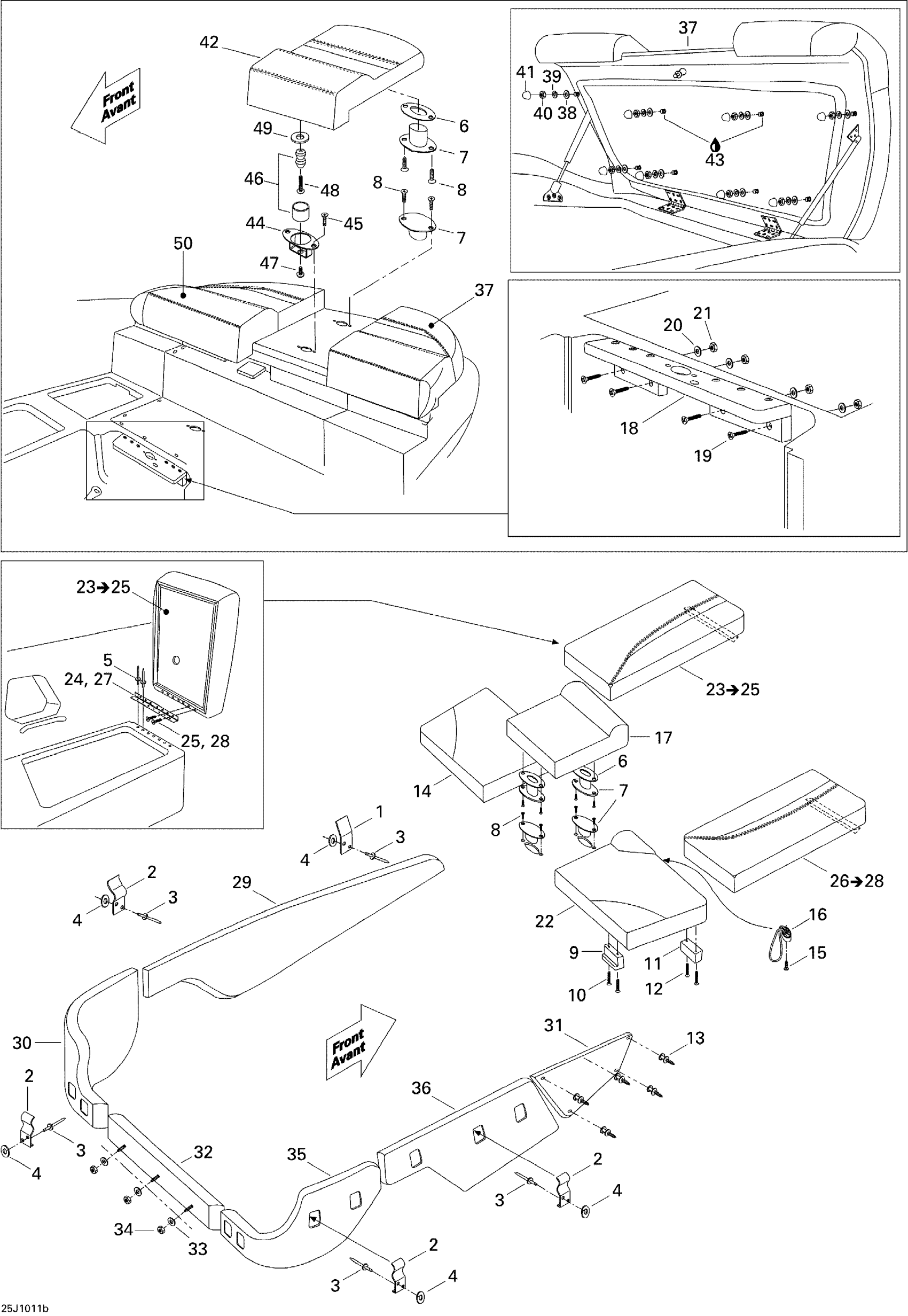

Sea-doo 230 Challenger 310, 2x155 1503NA, 2010 09- Seat, Rear View Diagram
#
1
RETAINING CLIP - Call your local BRP dealership
204611531
Unavailable
2
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
3
Pop Rivet 3/16"
293150043
$2.09
4
Stainless Flat Washer M6
234061600
$0.33
5
Pop Rivet 3/16"
293150008
$0.50
6
SPACER MAGNET 1/8'' - Call your local BRP dealership
204130219
Unavailable
7
MAGNETIC CATCH ASS'Y - Call your local BRP dealership
204614513
Unavailable
8
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
9
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
10
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
11
LATCH - Call your local BRP dealership
204611805
Unavailable
12
SCREW-PAN HD.#10-32 X 1-1/4 SS - Call your local BRP dealership | SE
204100219
Unavailable
13
Dart 1", White | STD
204130264
$14.82
14
Rear Cushion Ass'y, Port
204614896
Unavailable
15
PHILLIPS FORMING SCREW M8 X 3/4? - Call your local BRP dealership
204100126
Unavailable
16
Retention Cord With Clip
204615049
$19.99
17
CUSHION ASSY/REAR-CENTER - Call your local BRP dealership This part replaces 204614898.
269001940
Unavailable
18
SEAT SUPPORT ASS'Y - Call your local BRP dealership
204614709
Unavailable
19
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
20
Flat Washer M6, Stainless
234062600
$0.77
21
Hex. Elastic Stop Nut M6
232561600
$1.15
22
CUSHION ASSY/REAR-STBD - Call your local BRP dealership This part replaces 204614900.
269001941
Unavailable
23
WRAP ARROUND CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | STD, SE
269002587
Unavailable
24
Hinge
204613980
Unavailable
25
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
26
WRAP ARROUND CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership | STD, SE
269002588
Unavailable
27
Hinge
204613980
Unavailable
28
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
29
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership | STD, SE
269001944
Unavailable
30
REAR SIDE BACKREST, PORT SIDE - Call your local BRP dealership | STD, SE
269001945
Unavailable
31
FRONT FLAT BACKREST, STARBOARD - Call your local BRP dealership
204614910
Unavailable
32
REAR CENTER BACKREST - Call your local BRP dealership | STD, SE
269001947
Unavailable
33
Flat Washer 8 mm, Stainless
234082600
$2.43
34
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
35
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership | STD, SE
269001948
Unavailable
36
REAR SIDE BACKREST, STARBOARD SIDE - Call your local BRP dealership | STD, SE
269001949
Unavailable
37
Sundeck Cushion, Port
204615030
Unavailable
38
Flat Washer 8 mm, Stainless
234082600
$2.43
39
Lock Washer 1/4”
211200025
$1.29
40
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
41
Plastic Cap, White
204130008
Unavailable
42
SUNDECK CUSHION ASS'Y, CENTER - Call your local BRP dealership | STD, SE
269002595
Unavailable
43
Loctite 243, 10 ml
293800060
$21.49
44
HOLDER - Call your local BRP dealership
204614762
Unavailable
45
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
46
HOLDER DOOR ASS'Y - Call your local BRP dealership
269002153
Unavailable
47
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership
204100122
Unavailable
48
SCREW-HEX.HD.MACHINE #10 X 1 - Call your local BRP dealership
204100236
Unavailable
49
FLAT WASHER - Call your local BRP dealership
211200033
Unavailable
50
Sundeck Cushion, Starboard
204615032
Unavailable
