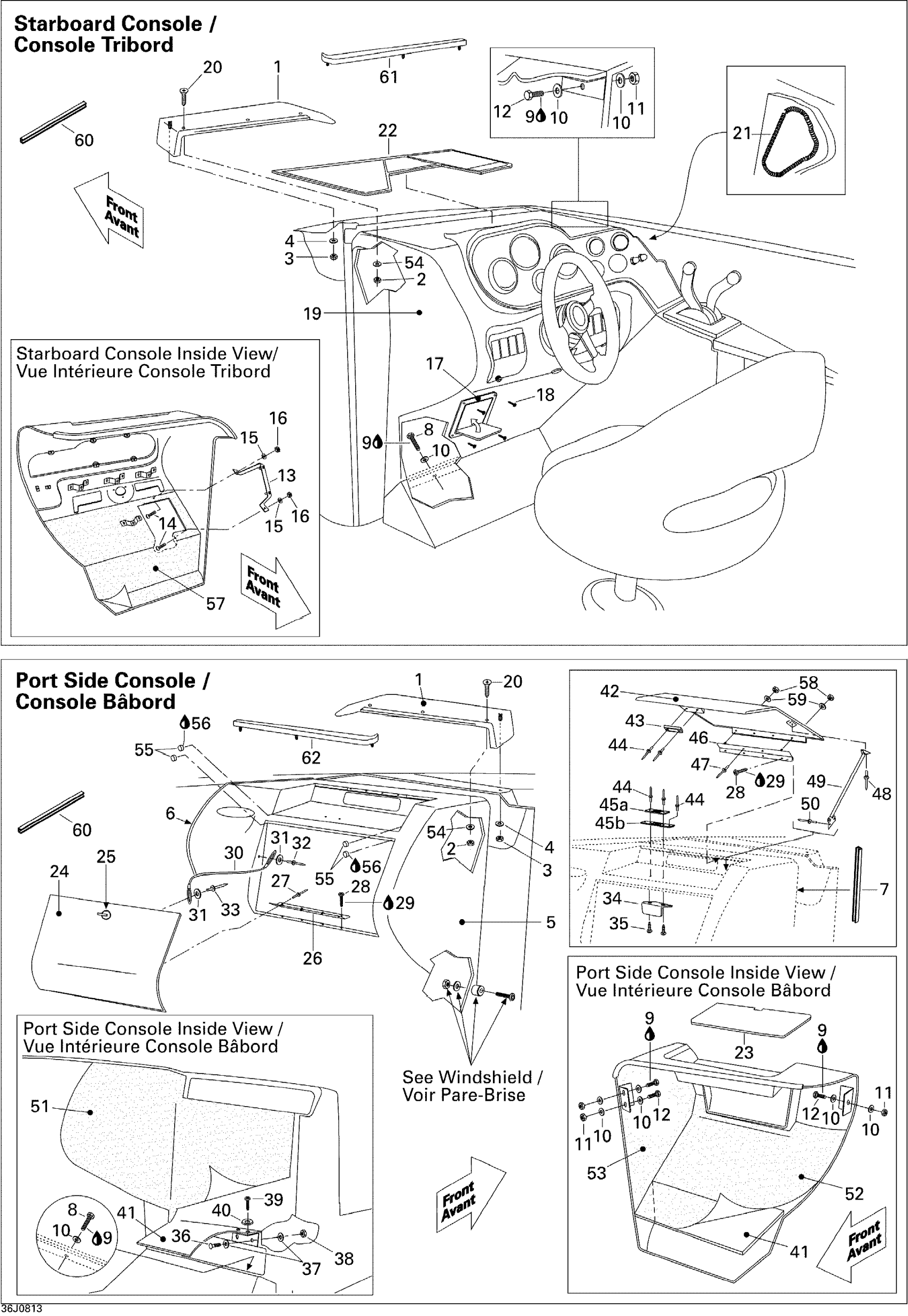

Sea-doo 230 Challenger 310, 2008 09- Front Console And Glove Box Diagram

#

Description
Price

1

Console Cap Ass'y, Port Side

204073102

Unavailable

1

Console Cap Ass'y, Starboard

204073105

Unavailable

2

Hex. Elastic Stop Nut M6

232561600

$1.15

3

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

4

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

5

CONSOLE ASS'Y, PORT SIDE - Call your local BRP dealership

204072494

Unavailable

6

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

7

TRIM, WHITE - Call your local BRP dealership

204071878

Unavailable

8

Hex. Screw M6 X 30

207163060

$1.48

9

Loctite 243, 10 ml

293800060

$21.49

10

Flat Washer M6, Stainless

234062600

$0.77

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

Hex. Screw M6 X 45

207164560

$1.89

13

Interface Bracket | Includes 14 to 15

204072325

Unavailable

14

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

15

Stainless Flat Washer M6

234061600

$0.33

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

ACCESS DOOR - Call your local BRP dealership

204072447

Unavailable

18

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

19

Console Ass'y, Starboard

204073106

Unavailable

20

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

21

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

22

DASHBOARD MAT - Call your local BRP dealership

204073047

Unavailable

23

MAT - Call your local BRP dealership

204073048

Unavailable

24

Glovebox Door Ass'y, Blue

204073154

Unavailable

24

Glovebox Door Ass'y, Sage Green

204073182

Unavailable

25

GLOVEBOX LATCH - Call your local BRP dealership

204072938

Unavailable

26

HINGE, BLACK - Call your local BRP dealership

204072990

Unavailable

27

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

28

Socket Head Screw M4 X 16

205441660

$1.47

29

Loctite 243, 10 ml

293800060

$21.49

30

RETAINER CABLE - Call your local BRP dealership

204071498

Unavailable

31

Flat Washer 5 mm, Stainless

234052600

$0.77

32

Pop Rivet 3/16"

293150008

$0.50

33

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

34

KEEPER - Call your local BRP dealership

204070060

Unavailable

35

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

36

Hex. Screw M6 X 30

207163060

$1.48

37

Stainless Flat Washer M6

234061600

$0.33

38

Hex. Elastic Stop Nut M6

232561600

$1.15

39

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

40

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

41

GLOVEBOX TRAY - Call your local BRP dealership

204072499

Unavailable

42

Glovebox Upper Cover, Blue

204073156

Unavailable

42

Glovebox Upper Cover, Sage Green

204073157

Unavailable

43

MAGNETIC CATCH - Call your local BRP dealership

204072907

Unavailable

44

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

45a

LATCH BRACKET - Call your local BRP dealership

204072908

Unavailable

45b

LATCH SPACER - Call your local BRP dealership

204073168

Unavailable

46

HINGE, BLACK - Call your local BRP dealership

204073197

Unavailable

47

Rivet 1/8”

293150057

Unavailable

48

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

49

HATCH SPRING - Call your local BRP dealership

204072937

Unavailable

50

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

51

DECK CARPET, PORT SIDE - Call your local BRP dealership

204072500

Unavailable

52

CONSOLE CARPET, PORT SIDE - Call your local BRP dealership

204072501

Unavailable

53

CONSOLE CARPET, PORT SIDE - Call your local BRP dealership

204072989

Unavailable

54

Flat Washer M6, Stainless

234062600

$0.77

55

BUMPER - Call your local BRP dealership

204070940

Unavailable

56

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

57

Console Carpet, Starboard

204072980

Unavailable

58

Elastic Stop Nut M4

232541600

$1.15

59

Flat Washer 4 mm, Stainless

234041600

$1.15

60

TRIM, BLACK, 7/16?, METER - Call your local BRP dealership

204072752

Unavailable

61

Console Filler Pad, Starboard

204073089

Unavailable

62

Console Filler Pad, Port Side

204073088

Unavailable
