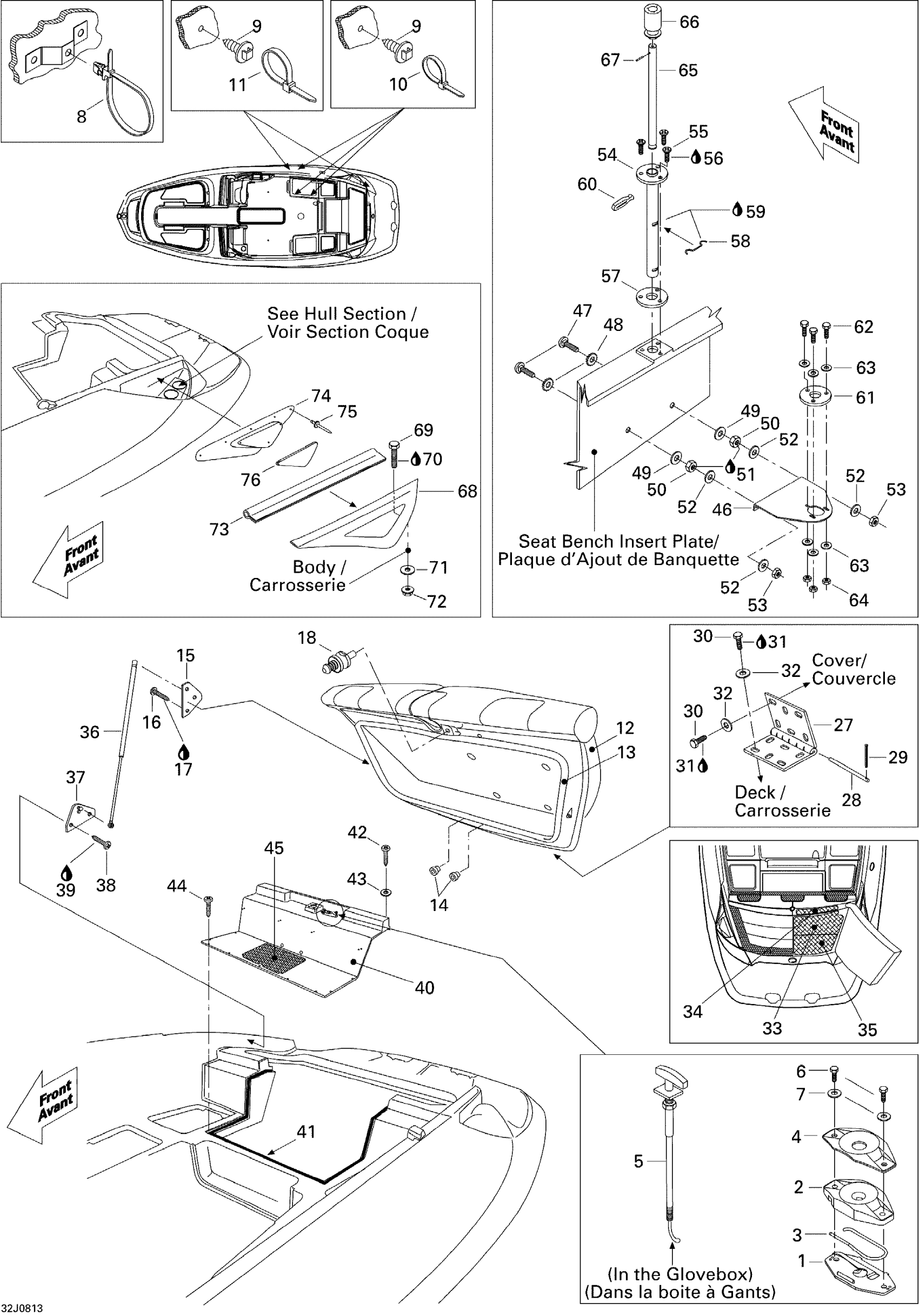

Sea-doo 230 Challenger 310, 2008 Engine Compartment And Accessories Diagram

#

Description
Price

1

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

2

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

3

SPRING - Call your local BRP dealership

204070038

Unavailable

4

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

5

LATCH CABLE - Call your local BRP dealership

204072793

Unavailable

6

Hex. Screw M6 X 35

207163560

$1.49

7

Stainless Flat Washer M6

234061600

$0.33

8

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

9

Mount Dart

293730040

$1.04

10

Tie-Rap 180 mm

414115200

$0.11

11

Tie Wrap 368 mm

293750008

$1.04

12

Engine Cover, Blue

204073109

Unavailable

12

Engine Cover, Sage Green

204073132

Unavailable

13

D-SEAL RUBBER - Call your local BRP dealership

204130083

Unavailable

14

GROMMET - Call your local BRP dealership

293720017

Unavailable

15

SHOCK BRACKET - Call your local BRP dealership

204073065

Unavailable

16

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49

18

Latch Stud

204130146

$154.99

27

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

28

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

29

Cotter Pin M2.5 X 12

204070205

Unavailable

30

Hex. Screw M6 X 25

207162560

$1.47

31

Loctite 243, 10 ml

293800060

$21.49

32

Stainless Flat Washer M6

234061600

$0.33

33

Non Skid Carpet

204073183

Unavailable

34

Non Skid Carpet

204073184

Unavailable

35

Non Skid Carpet

204073186

Unavailable

36

GAS SHOCK - Call your local BRP dealership

204072798

Unavailable

37

SHOCK BRACKET - Call your local BRP dealership

204073065

Unavailable

38

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

Unavailable

39

Loctite 243, 10 ml

293800060

$21.49

40

Seat Bench Insert Plate

204072685

Unavailable

41

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

42

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

43

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

44

Phillips Head Screw 1/4 - 20 X 1-1/2"

204100200

$4.00

45

Non Skid Carpet, White

204073174

Unavailable

46

FIXATION PLATE - Call your local BRP dealership

204072906

Unavailable

47

Elevator Bolt

204000130

Unavailable

48

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

49

Flat Washer M6, Stainless

234062600

$0.77

50

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

51

Loctite 271, 10 ml

293800005

$26.99

52

Flat Washer M6, Stainless

234062600

$0.77

53

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

54

FIX TUBE - Call your local BRP dealership

204072904

Unavailable

55

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

56

Loctite 243, 10 ml

293800060

$21.49

57

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

58

SPRING - Call your local BRP dealership

291001205

Unavailable

59

Synthetic Grease, 400 G

293550010

Unavailable

60

Windshield Latch

570023800

$4.49

61

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

62

Hex. Forming Screw M6 X 20

207162060

$1.29

63

Flat Washer M6, Stainless

234062600

$0.77

64

Hex. Elastic Stop Nut M6

232561600

$1.15

65

SKI SHAFT - Call your local BRP dealership

204950025

Unavailable

66

SKI SHAFT CAP - Call your local BRP dealership

204950024

Unavailable

67

ROLL PIN M8 X 40, STAINLESS - Call your local BRP dealership

204100221

Unavailable

68

Vent Cover, Port Side, Blue

204072491

Unavailable

68

VENT COVER, STARBOARD, BLUE - Call your local BRP dealership

204072493

Unavailable

68

Vent Cover, Port Side, Sage Green

204073136

Unavailable

68

Vent Cover, Starboard, Sage Green

204073137

Unavailable

69

Hex. Screw M6 X 35

207163560

$1.49

70

Loctite 243, 10 ml

293800060

$21.49

71

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

72

Hex. Elastic Stop Nut M6

232561600

$1.15

73

J-Trim, Blue

204073002

Unavailable

73

J-Trim, Green

204073138

Unavailable

74

VENT BASE, PORT SIDE - Call your local BRP dealership

204072801

Unavailable

74

VENT BASE, STARBOARD - Call your local BRP dealership

204072802

Unavailable

75

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

76

VENT INSERT, PORT SIDE - Call your local BRP dealership

204073029

Unavailable

76

VENT INSERT, STARBOARD - Call your local BRP dealership

204073035

Unavailable
