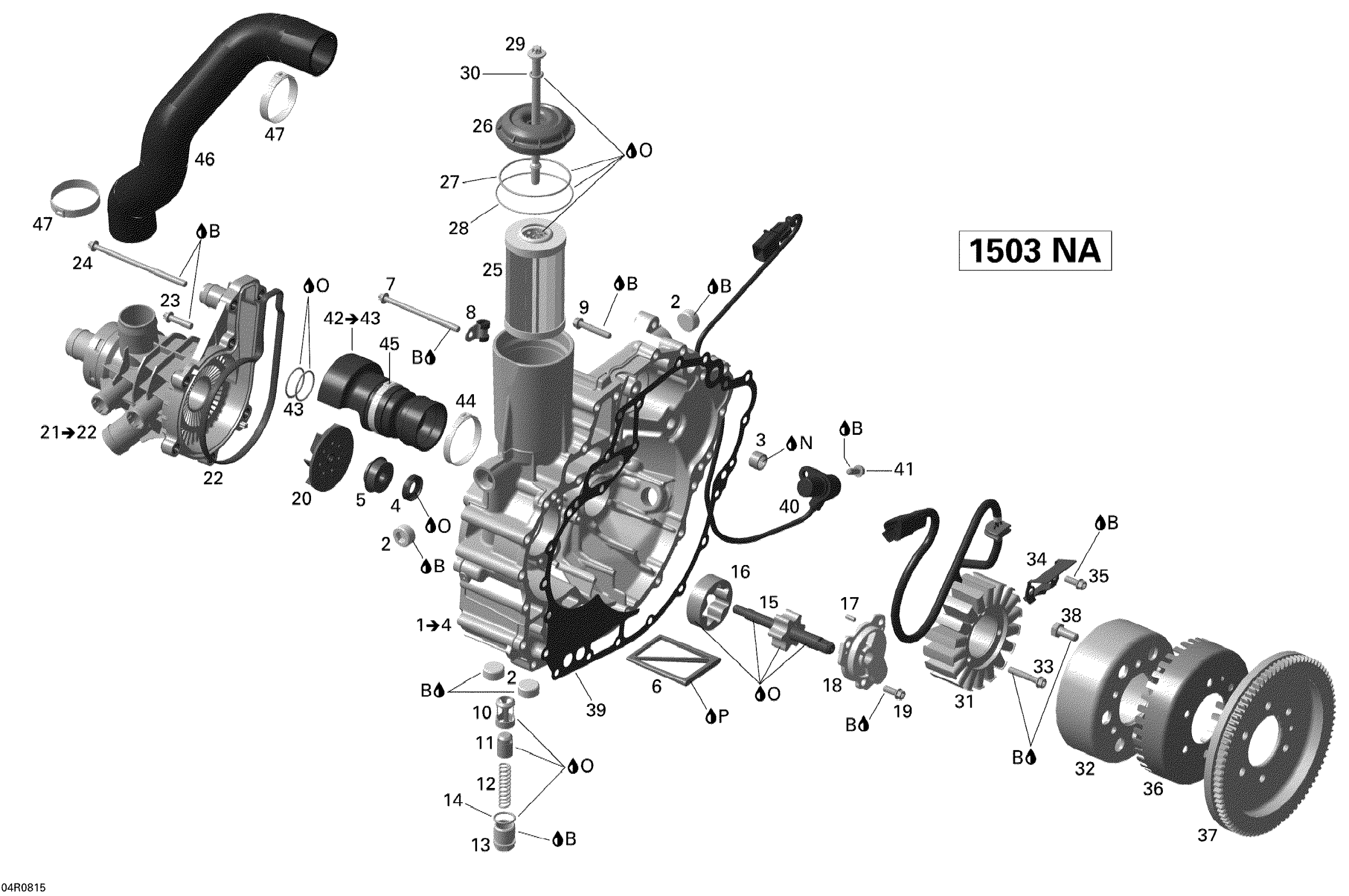

Sea-doo 230 Challenger 310, 2008 03- PTO Cover And Magneto Diagram

#

Description
Price

1

TIMING/DRIVE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 4 This part replaces 420812625.

420481447

Unavailable

2

Plug Screw M20 X 1.5

420641317

$14.22

3

Needle Bushing

420232482

$20.99

4

Oil Seal

420650315

$11.65

5

Rotary Seal

420650371

$43.49

6

Oil Sieve

420956950

$16.86

7

Torx Flange Screw M6 X 85

420641228

$7.41

8

Clamp

420853414

$18.49

9

Torx Flange Screw M6 X 35

420641258

$3.38

10

Valve Seat Sleeve

420256606

$29.49

11

Piston Valve

420256638

$22.99

12

Compression Spring

420939410

Unavailable

13

Plug Screw M20 X 1.5

420641052

$37.99

14

O-Ring

420230890

$5.39

15

Pump Shaft Ass'y

420837472

$56.99

16

Oil Pump Rotor 16 mm

420956675

$36.99

17

Needle Pin

420929070

$1.90

18

Oil Pump Cover

420811591

$37.99

19

Torx Flange Screw M6 X 16

420641048

$2.96

20

Impeller

420922801

$17.53

21

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$309.99

22

Water Pump Housing Gasket | Included in gasket kit

420950840

$15.27

23

Torx Flange Screw M6 X 25

420641238

$3.27

24

Torx Flange Screw M6 X 105

420641338

$7.41

25

Oil Filter

420956741

$13.77

26

Oil Filter Cover

420610329

$33.99

27

O-Ring

420230923

$3.17

28

O-Ring

420850500

$3.17

29

Oil Filter Screw Kit

295501207

$39.99

30

O-Ring

420950860

$3.91

31

Stator Plate This part replaces 420889721.

420889726

$319.49

32

Magneto Flywheel

420296900

$461.99

33

Torx Flange Screw M6 X 35

420641258

$3.38

34

Retaining Plate

420926300

$16.37

35

Torx Flange Screw M6 X 16

420641048

$2.96

36

Trigger Wheel

420966851

$18.49

37

Starter Gear, 86 Teeth

420835163

$309.99

38

Hex Screw

295501162

$15.28

39

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$23.49

40

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

41

Torx Flange Screw M6 X 16

420641048

$2.96

42

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$142.99

43

O-Ring

420631612

$4.33

44

Gear Clamp

420851653

$7.41

45

Gear Clamp 46.8-50.0MM

420853023

$7.41

46

Formed Hose

420922822

$66.49

47

Oetiker Clamp

420851687

$11.65

B

Loctite 243, 10 ml

293800060

$21.49

N

Dow Corning 111, 150 g

413707000

$59.99

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99
