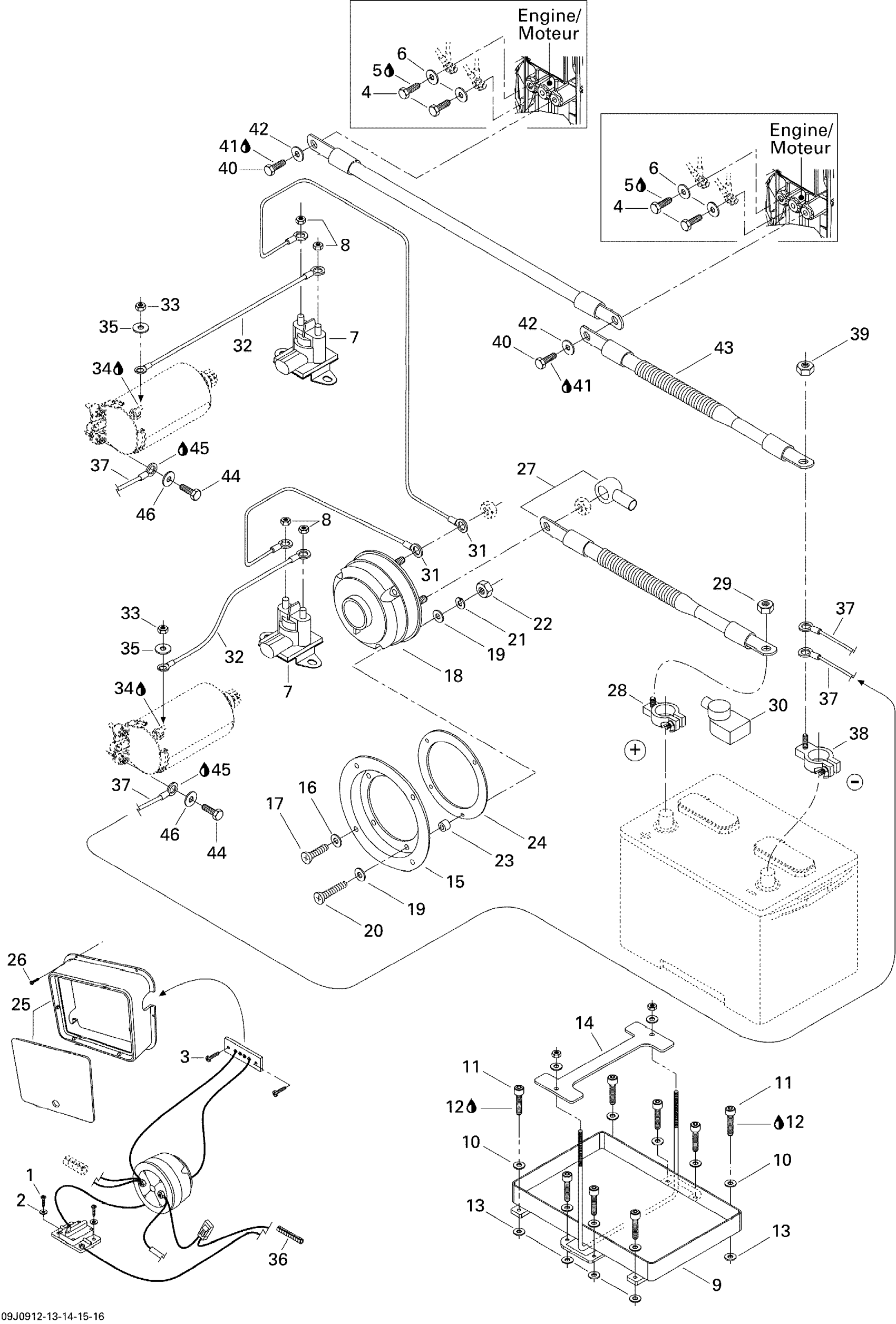

Sea-doo 230 Challenger, 2 x 155 NA, 2009 10- Electrical System Diagram
#
1
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
209641960
Unavailable
2
Flat Washer 4 mm, Stainless
234041600
$1.15
3
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
4
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Stainless Flat Washer M6
234061600
$0.33
7
Starter Relay
278003012
$42.49
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
BATTERY SUPPORT - Call your local BRP dealership
204471008
Unavailable
10
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
11
Socket Head Screw M6 X 25
205062560
$1.69
12
Loctite 243, 10 ml
293800060
$21.49
13
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
14
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
15
SWITCH SUPPORT - Call your local BRP dealership
204470259
Unavailable
16
Flat Washer 4 mm, Stainless
234041600
$1.15
17
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
18
BATTERY SWITCH - Call your local BRP dealership
204470814
Unavailable
19
Flat Washer M5, Stainless
234051600
$0.77
20
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership
205455060
Unavailable
21
Helical Lock Washer M5
234151601
$1.15
22
Hex. Nut M5
232051600
$1.15
23
NYLON SPACER - Call your local BRP dealership
204470330
Unavailable
24
SWITCH ADAPTOR - Call your local BRP dealership
204470813
Unavailable
25
BATTERY SWITCH COVER - Call your local BRP dealership
204471175
Unavailable
26
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
27
POSITIF SWITCH CABLE - Call your local BRP dealership
204471193
Unavailable
28
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
29
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
30
RED BOOT - Call your local BRP dealership
204470269
Unavailable
31
RED CABLE, PORT SIDE - Call your local BRP dealership
204471190
Unavailable
31
Red Cable | Starboard
204471189
Unavailable
32
Red Cable
204471188
Unavailable
32
RED CABLE, STARBOARD - Call your local BRP dealership
204471187
Unavailable
33
Hex. Elastic Stop Nut M6
232561600
$1.15
34
Not Available As Spare Part - Friction Washer
Unavailable
35
Stainless Flat Washer M6
234061600
$0.33
36
SLIT CONDUIT - Call your local BRP dealership
204471077
Unavailable
37
GROUND CABLE - Call your local BRP dealership
204471191
Unavailable
37
GROUND CABLE - Call your local BRP dealership
204471192
Unavailable
38
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
39
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
40
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
41
Not Available As Spare Part - Friction Washer
Unavailable
42
Flat Washer M6, Stainless
234062600
$0.77
43
GROUND CABLE - Call your local BRP dealership
204470839
Unavailable
44
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
45
Not Available As Spare Part - Friction Washer
Unavailable
46
Stainless Flat Washer M6
234061600
$0.33
