10- Electrical Accessories 4

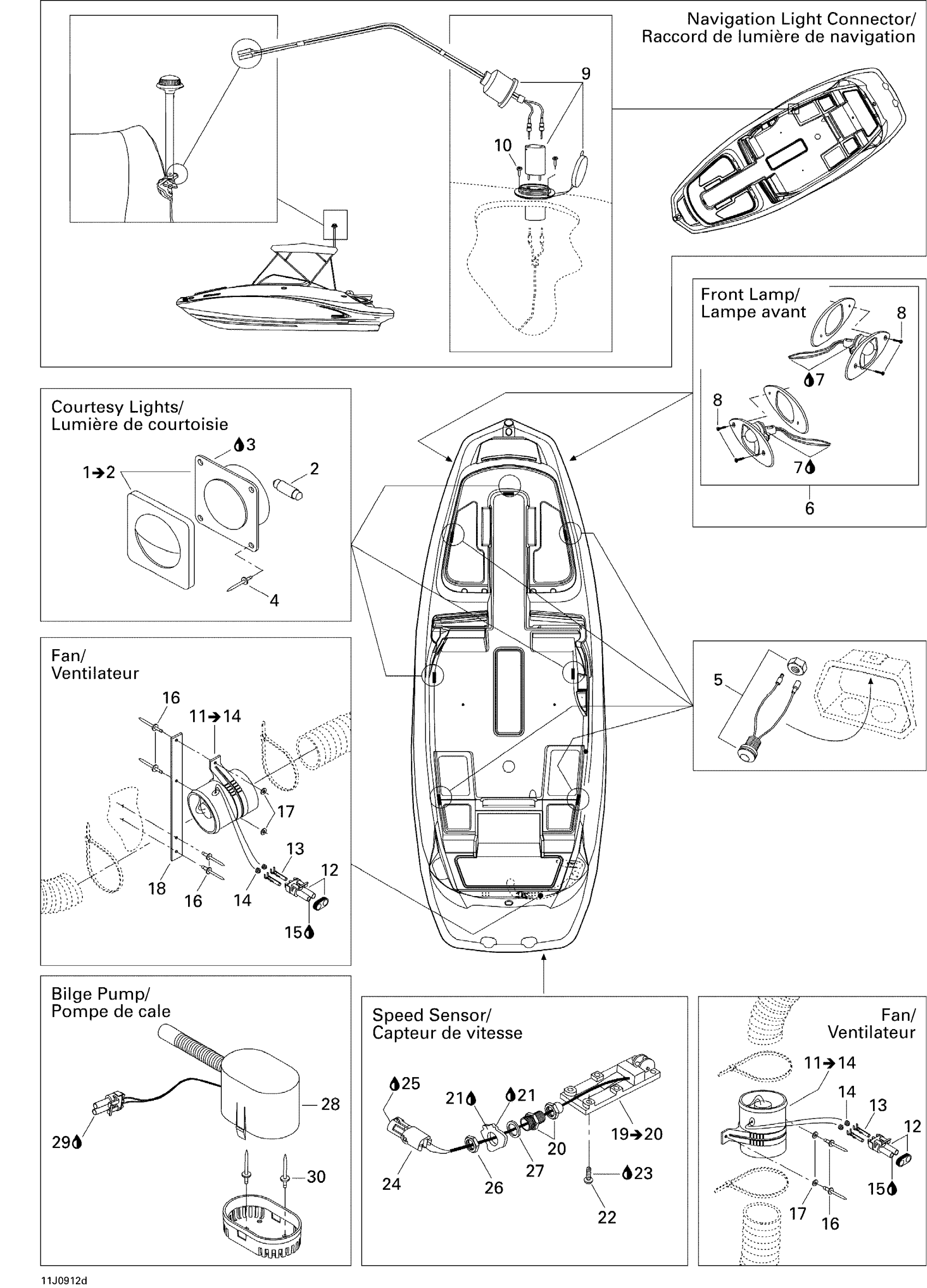

Sea-doo 230 Challenger, 2 x 155 NA, 2009 10- Electrical Accessories 4 Diagram
#
Description
Price
1
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
2
BULB - Call your local BRP dealership
204470081
Unavailable
3
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
4
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
5
LED Light Ass'y
204471169
Unavailable
6
LATERAL LIGHT KIT - Call your local BRP dealership
204470908
Unavailable
7
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
8
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
9
CONNECTOR - Call your local BRP dealership | 210 Challenger S
204130221
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Fan Ass'y | Includes 44 to 47
204470108
$144.99
12
Male Connector, 2 Circuits
278000220
$15.49
13
Female Terminal
278000223
$3.19
14
Wire Seal
278000218
$4.39
15
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
16
Pop Rivet 3/16"
293150008
$0.50
17
Flat Washer 5 mm, Stainless
234052600
$0.77
18
BRACKET - Call your local BRP dealership
204471389
Unavailable
19
Speed Sensor Ass'y | Includes 19 to 20
204471199
Unavailable
20
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
21
Silicone Sealant 51388, 300 ml
296000309
$36.99
22
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
23
Loctite 243, 10 ml
293800060
$21.49
24
Female Housing, 2 Circuits
278000217
$9.59
25
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
26
LOCKING NUT - Call your local BRP dealership
293710032
Unavailable
27
SEAL WASHER - Call your local BRP dealership
278000416
Unavailable
28
Bilge Pump
204471431
Unavailable
29
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
30
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
