- 230 Challenger, 2 x 155 NA, 2009
10- Electrical Accessories 3

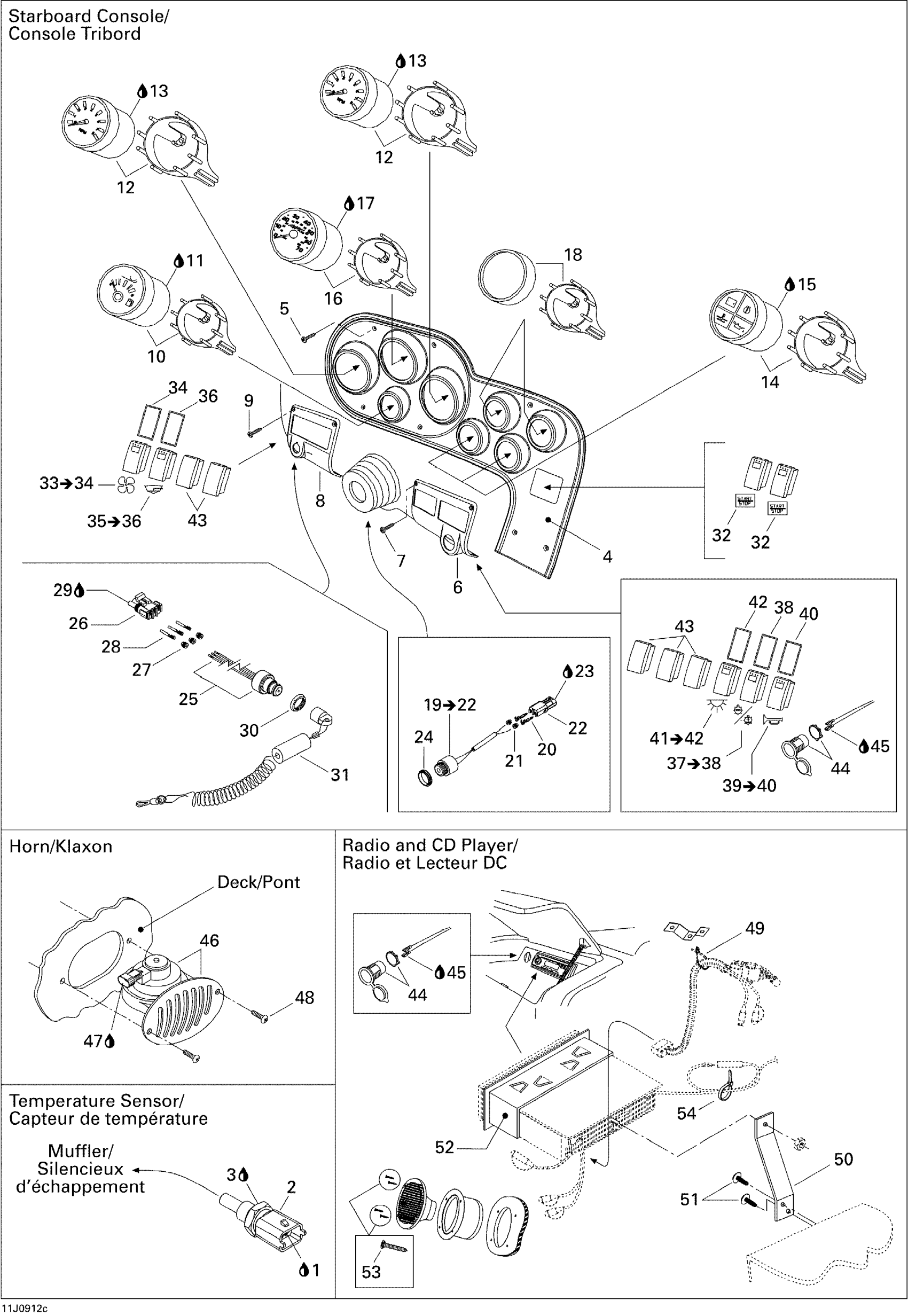

Sea-doo 230 Challenger, 2 x 155 NA, 2009 10- Electrical Accessories 3 Diagram
#
1
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
2
Temperature Sensor
278002895
$39.99
3
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
4
Fascia
204471345
Unavailable
5
Socket Head Screw M4 X 25
205342569
Unavailable
6
RH Panel Switch
204471173
Unavailable
7
Phillips Tapping Screw 3.5 X 19
250000092
Unavailable
8
LH PANEL SWITCH - Call your local BRP dealership
204471174
Unavailable
9
Phillips Tapping Screw 3.5 X 19
250000092
Unavailable
10
Fuel Gauge
204471152
Unavailable
11
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
12
TACHOMETER GAUGE - Call your local BRP dealership
204471155
Unavailable
13
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
14
Engine Warning Gauge
204471156
Unavailable
15
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
16
SPEEDOMETER GAUGE - Call your local BRP dealership
204471153
Unavailable
17
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
18
GAUGE CAP - Call your local BRP dealership | STD
204470987
Unavailable
19
Buzzer Ass'y
204470913
$92.99
20
Male Terminal | XT Models
278000222
$3.19
21
Wire Seal
278000218
$4.39
22
Female Housing, 2 Circuits
278000217
$9.59
23
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
24
Buzzer Nut
278000707
Unavailable
25
Safety Switch This part replaces 278002325.
278002773
$114.99
26
Male Housing, 3 Circuits
278000273
$9.59
27
Wire Seal
278000218
$4.39
28
Female Terminal
278000223
$3.19
29
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
30
Safety Nut (DESS Switch)
278002963
$3.28
31
Safety Lanyard
204471206
$56.99
32
START/STOP SWITCH - Call your local BRP dealership
204471178
Unavailable
33
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
34
Gasket
204470132
Unavailable
35
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
36
Gasket
204470132
Unavailable
37
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
38
Gasket
204470132
Unavailable
39
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
40
Gasket
204470132
Unavailable
41
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
42
Gasket
204470132
Unavailable
43
SWITCH PLUG - Call your local BRP dealership
204470596
Unavailable
44
DC Outlet
710001248
$37.99
45
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
46
HORN - Call your local BRP dealership
204470801
Unavailable
47
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
48
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
49
Tie Wrap 142 mm
293750002
$1.25
50
RADIO SUPPORT - Call your local BRP dealership
204471194
Unavailable
51
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership
204100203
Unavailable
52
STEREO TRIM RING - Call your local BRP dealership
204471010
Unavailable
53
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
54
Tie Wrap 94 mm | 4X4
293750001
$1.03
