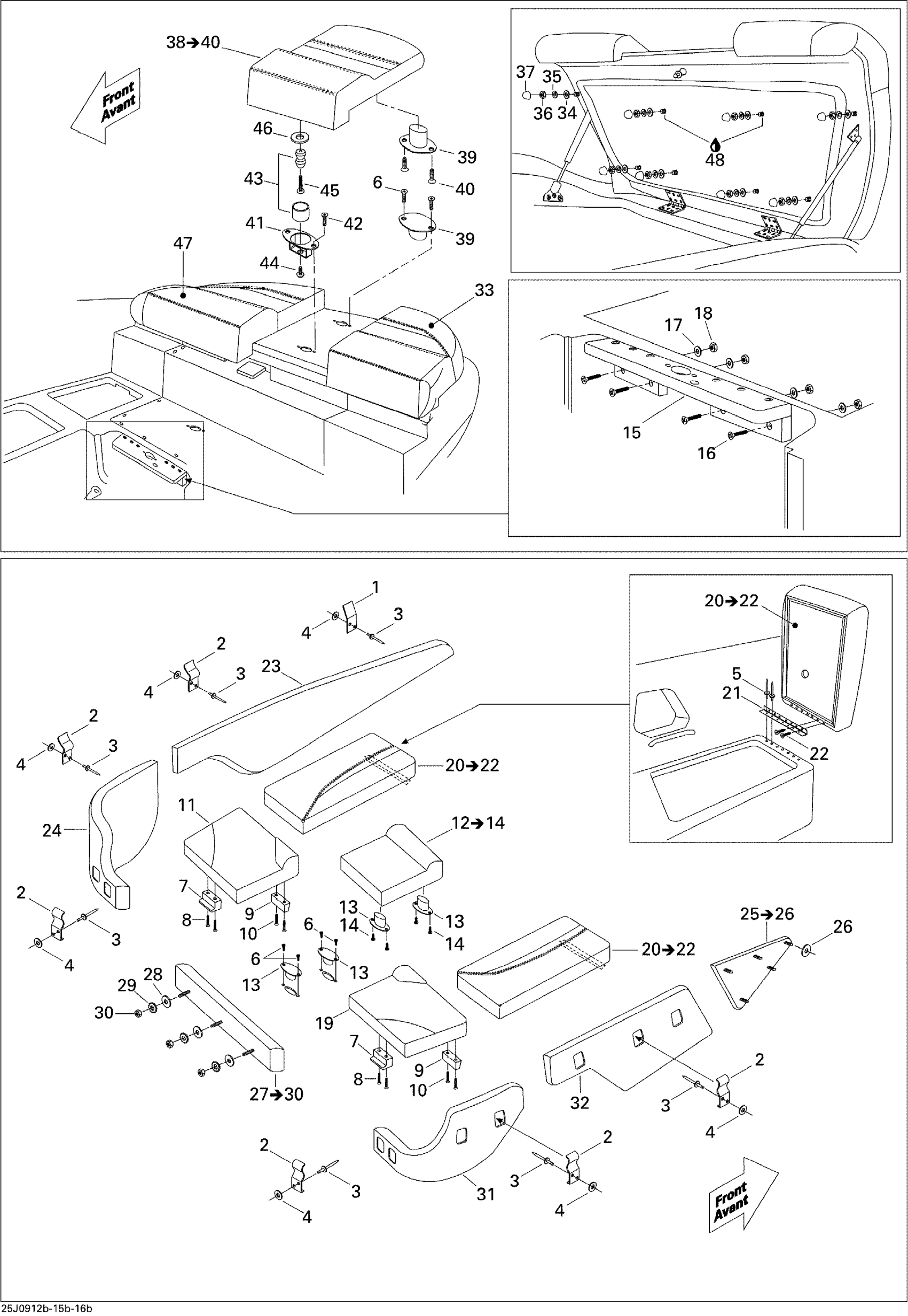

Sea-doo 230 Challenger, 2 x 155 NA, 2009 09- Seat, Rear View Diagram

#

Description
Price

1

RETAINING CLIP - Call your local BRP dealership

204611531

Unavailable

2

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

3

Pop Rivet 3/16"

293150043

$2.09

4

Stainless Flat Washer M6

234061600

$0.33

5

Pop Rivet 3/16"

293150008

$0.50

6

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

7

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

8

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

9

LATCH - Call your local BRP dealership

204611805

Unavailable

10

SCREW-PAN HD.#10-32 X 1-1/4 SS - Call your local BRP dealership | SE

204100219

Unavailable

11

Rear Cushion, Port Side

204614453

Unavailable

12

CUSHION ASSY/REAR-CENTER - Call your local BRP dealership This part replaces 204614898.

269001940

Unavailable

13

MAGNETIC CATCH ASS'Y - Call your local BRP dealership

204614513

Unavailable

14

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

15

SEAT SUPPORT ASS'Y - Call your local BRP dealership

204614709

Unavailable

16

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

17

Flat Washer M6, Stainless

234062600

$0.77

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

REAR CUSHION, STARBOARD - Call your local BRP dealership

204614455

Unavailable

20

REAR SIDE CUSHION, PORT SIDE - Call your local BRP dealership | Includes 20 to 22

204614459

Unavailable

20

Rear Side Cushion, Starboard | Includes 20 to 22

204614460

Unavailable

21

Hinge

204613980

Unavailable

22

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

23

Rear Side Backrest, Port Side

204614456

Unavailable

24

Rear Corner Backrest, Port Side

204614451

Unavailable

25

Rear Side Flat Backrest, Starboard | Includes 25 to 26

204614457

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.77

27

Rear Center Backrest | Includes 27 to 30

204614450

Unavailable

28

External Serrated Lock Washer 6 mm

234461608

$1.15

29

Hex. Jam Nut

204100060

Unavailable

30

Flat Washer M6, Stainless

234062600

$0.77

31

Rear Corner Backrest, Starboard

204614452

Unavailable

32

Rear Side Backrest, Port Side

204614458

Unavailable

33

Sundeck Cushion, Port Side

204614448

Unavailable

34

Flat Washer 8 mm, Stainless

234082600

$2.43

35

Lock Washer 1/4”

211200025

$1.29

36

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

37

Plastic Cap, White

204130008

Unavailable

38

SUNDECK CENTER CUSHION - Call your local BRP dealership | Includes 38 to 40

204614530

Unavailable

39

MAGNETIC CATCH ASS'Y - Call your local BRP dealership

204614513

Unavailable

40

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

41

HOLDER - Call your local BRP dealership

204614762

Unavailable

42

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

43

HOLDER DOOR ASS'Y - Call your local BRP dealership

269002153

Unavailable

44

SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership

204100122

Unavailable

45

SCREW-HEX.HD.MACHINE #10 X 1 - Call your local BRP dealership

204100236

Unavailable

46

FLAT WASHER - Call your local BRP dealership

211200033

Unavailable

47

Sundeck Cushion, Starboard

204614449

Unavailable

48

Loctite 243, 10 ml

293800060

$21.49
