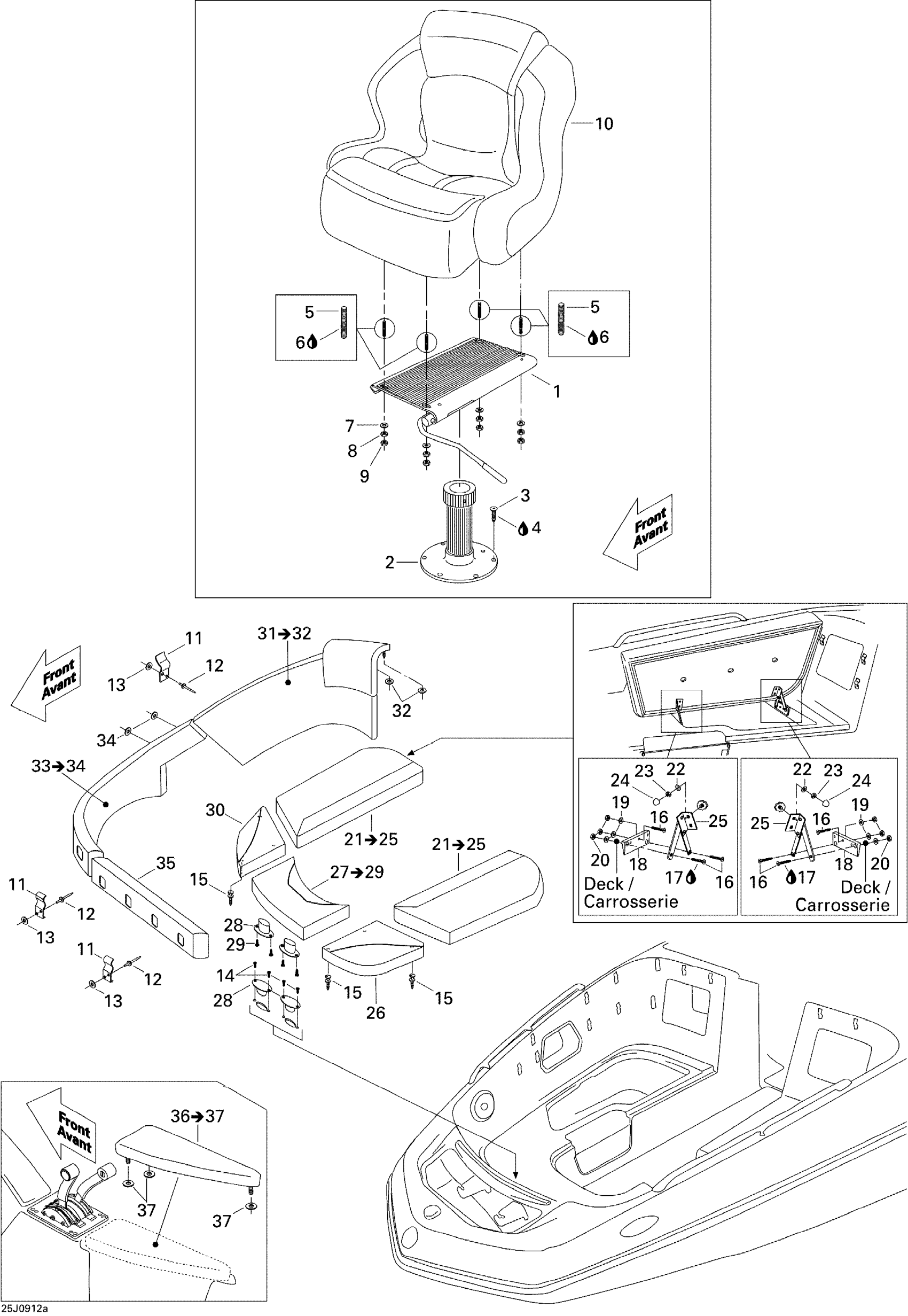

Sea-doo 230 Challenger, 2 x 155 NA, 2009 09- Seat, Front View Diagram

#

Description
Price

1

SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership

204613742

Unavailable

2

SEAT PEDESTAL - Call your local BRP dealership

269001903

Unavailable

3

PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership

204100201

Unavailable

4

Loctite 243, 10 ml

293800060

$21.49

5

SEAT STUD 1/4-20 X 2 1/2 - Call your local BRP dealership

204613795

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

Lock Washer 1/4”

211200025

$1.29

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

10

Bucket Seat Ass'y

204614447

Unavailable

11

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

12

Pop Rivet 3/16"

293150043

$2.09

13

Stainless Flat Washer M6

234061600

$0.33

14

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

15

Dart

293730021

$7.79

16

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

17

Loctite 243, 10 ml

293800060

$21.49

18

HINGE SHIM - Call your local BRP dealership

204614766

Unavailable

19

Flat Washer M6, Stainless

234062600

$0.77

20

Hex. Elastic Stop Nut M6

232561600

$1.15

21

Front Side Cushion, Port Side | Includes 21 to 25

204614466

Unavailable

21

Front Side Cushion, Starboard | Includes 21 to 25

204614467

Unavailable

22

Flat Washer M6, Stainless

234062600

$0.77

23

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

24

Plastic Cap, White

204130008

Unavailable

25

Hinge Set

204614745

Unavailable

26

Front Bow Cushion, Port Side

204614468

Unavailable

27

Front Center Cushion Ass'y | Includes 27 to 29

204614470

Unavailable

28

MAGNETIC CATCH ASS'Y - Call your local BRP dealership

204614513

Unavailable

29

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

30

Front Bow Cushion, Starboard

204614469

Unavailable

31

Bow Side Backrest, Port Side | Includes 31 to 32

204614461

Unavailable

31

Bow Side Backrest, Starboard | Includes 31 to 32

204614462

Unavailable

32

Flat Washer M6, Stainless

234062600

$0.77

33

Bow Front Backrest, Port Side | Includes 33 to 34

204614463

Unavailable

33

Bow Front Backrest, Starboard | Includes 33 to 34

204614464

Unavailable

34

Flat Washer M6, Stainless

234062600

$0.77

35

Bow Center Backrest

204614465

Unavailable

36

Elbow Rest Ass'y | Includes 36 to 37

204614471

Unavailable

37

Flat Washer M6, Stainless

234062600

$0.77
