- 230 Challenger, 2 x 155 NA, 2009
09- Engine Compartment And Accessories

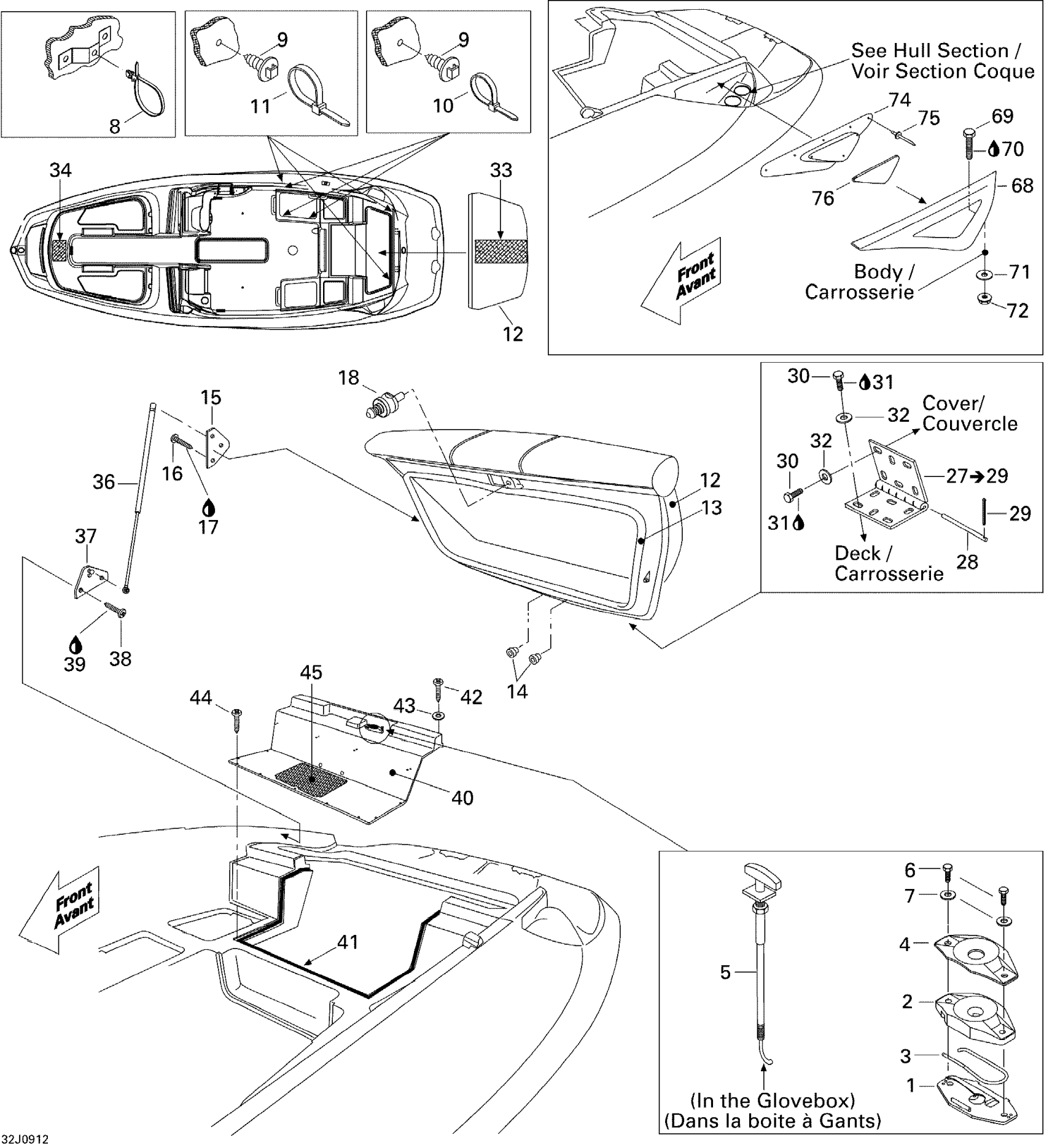

Sea-doo 230 Challenger, 2 x 155 NA, 2009 09- Engine Compartment And Accessories Diagram
#
1
LATCH COVER - Call your local BRP dealership
204070036
Unavailable
2
LATCH BASE - Call your local BRP dealership
204070037
Unavailable
3
SPRING - Call your local BRP dealership
204070038
Unavailable
4
LATCH PROTECTOR - Call your local BRP dealership
204070952
Unavailable
5
LATCH CABLE - Call your local BRP dealership
204072793
Unavailable
6
Hex. Screw M6 X 35
207163560
$1.49
7
Stainless Flat Washer M6
234061600
$0.33
8
TIE RAP WITH DART - Call your local BRP dealership
204130098
Unavailable
9
Mount Dart
293730040
$1.04
10
Tie-Rap 180 mm
414115200
$0.11
11
Tie Wrap 368 mm
293750008
$1.04
12
Engine Cover, White
204073274
Unavailable
13
D-SEAL RUBBER - Call your local BRP dealership
204130083
Unavailable
14
GROMMET - Call your local BRP dealership
293720017
Unavailable
15
SHOCK BRACKET - Call your local BRP dealership
204073065
Unavailable
16
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
17
Loctite 243, 10 ml
293800060
$21.49
18
Latch Stud
204130146
$154.99
27
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
28
HINGE ROD - Call your local BRP dealership
204070204
Unavailable
29
Cotter Pin M2.5 X 12
204070205
Unavailable
30
Hex. Screw M6 X 25
207162560
$1.47
31
Loctite 243, 10 ml
293800060
$21.49
32
Stainless Flat Washer M6
234061600
$0.33
33
NON-SKID CARPET, ENGINE COVER - Call your local BRP dealership
204073298
Unavailable
34
NON-SKID CARPET, BOW STEP - Call your local BRP dealership
204073299
Unavailable
36
Gas Shock
204073380
Unavailable
37
SHOCK BRACKET - Call your local BRP dealership
204073065
Unavailable
38
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152560
Unavailable
39
Loctite 243, 10 ml
293800060
$21.49
40
Bench Insert Plate
204073300
Unavailable
41
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
42
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
43
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
44
Phillips Head Screw 1/4 - 20 X 1-1/2"
204100200
$4.00
45
NON SKID CARPET - Call your local BRP dealership
204073368
Unavailable
68
Vent Cover, Port Side
204073307
Unavailable
68
Vent Cover, Starboard
204073308
Unavailable
69
Hex. Screw M6 X 35
207163560
$1.49
70
Loctite 243, 10 ml
293800060
$21.49
71
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
72
Hex. Elastic Stop Nut M6
232561600
$1.15
74
VENT BASE, PORT SIDE - Call your local BRP dealership
204072801
Unavailable
74
VENT BASE, STARBOARD - Call your local BRP dealership
204072802
Unavailable
75
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
76
VENT INSERT, PORT SIDE - Call your local BRP dealership
204073029
Unavailable
76
VENT INSERT, STARBOARD - Call your local BRP dealership
204073035
Unavailable
