- Partiron
- OEM Parts
- Sea-doo
- Boats
- 2009
- Challenger
- 230 Challenger, 2 x 155 NA, 2009
09- Body And Accessories 1

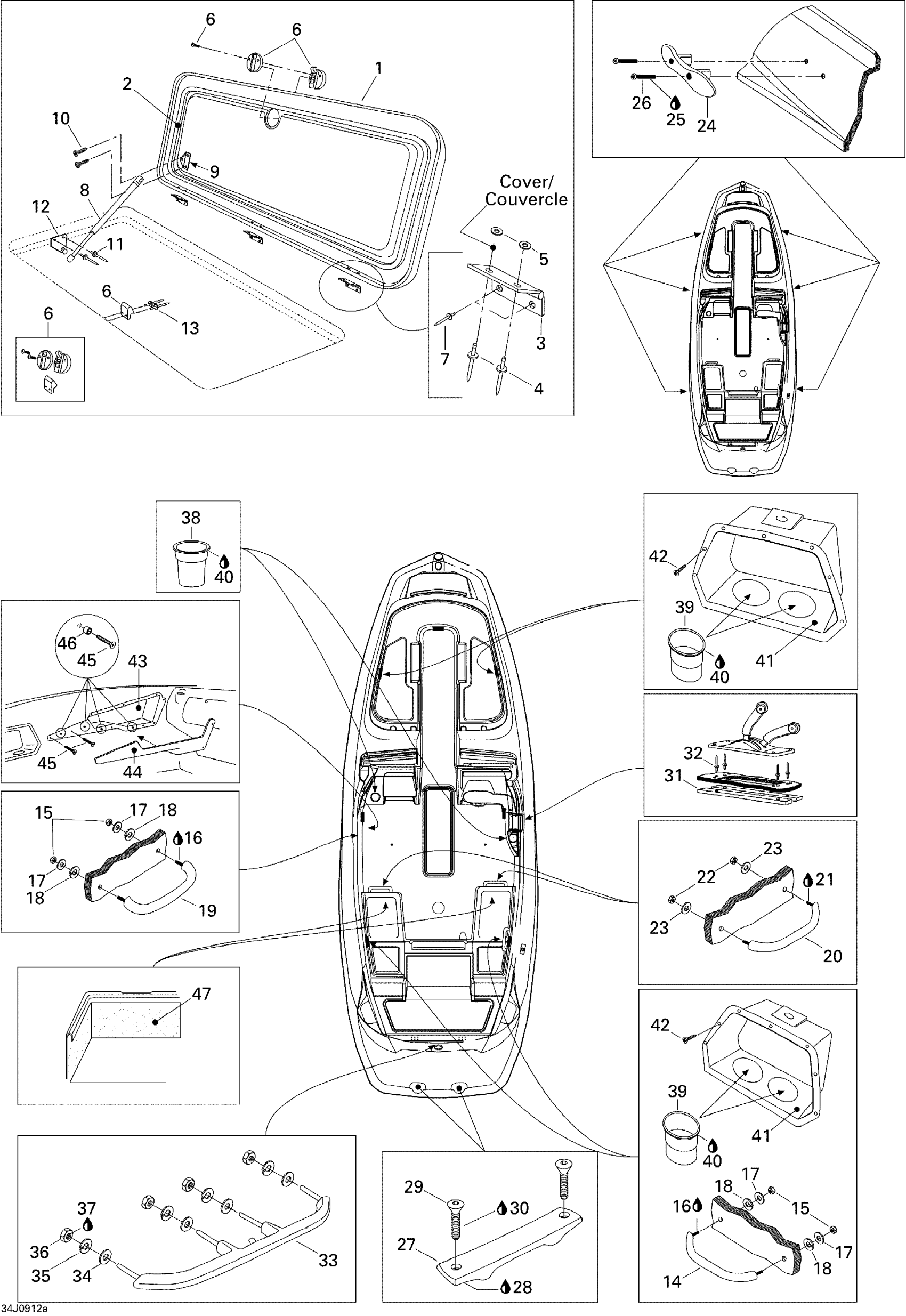

Sea-doo 230 Challenger, 2 x 155 NA, 2009 09- Body And Accessories 1 Diagram
#
1
CENTER COVER - Call your local BRP dealership
204072794
Unavailable
2
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
3
HINGE - Call your local BRP dealership
204072601
Unavailable
4
Pop Rivet 3/16"
293150088
$0.99
5
Flat Washer M5, Stainless
234051600
$0.77
6
Latch, Stainless Steel
204073230
$139.99
7
Avdel Rivet 3/16"
293150037
$0.56
8
GAS SHOCK - Call your local BRP dealership
204072218
Unavailable
9
Shock Bracket
204073074
$27.99
10
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
11
Pop Rivet 3/16"
293150043
$2.09
12
RH SHOCK BRACKET - Call your local BRP dealership
204072219
Unavailable
13
Pop Rivet 3/16"
293150039
$1.49
14
GRAB HANDLE ASS. - Call your local BRP dealership
291003405
Unavailable
15
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
16
Loctite 243, 10 ml
293800060
$21.49
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
19
GRAB HANDLE ASS'Y - Call your local BRP dealership
204073040
Unavailable
20
GRAB HANDLE ASS'Y - Call your local BRP dealership
204073791
Unavailable
21
Loctite 243, 10 ml
293800060
$21.49
22
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
23
Flat Washer 10 mm, Stainless
234002600
$2.22
24
CLEAT - Call your local BRP dealership | STD
204070592
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD
204100144
Unavailable
27
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
28
Silicone Sealant 51388, 300 ml
296000309
$36.99
29
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
30
Loctite 243, 10 ml
293800060
$21.49
31
SHIFTER INSERT - Call your local BRP dealership
293450061
Unavailable
32
Pop Rivet 3/16"
293150013
$1.37
33
Ski-Tow Handle
204073394
Unavailable
34
Flat Washer 10 mm, Stainless
234002600
$2.22
35
Lock Washer 8 mm, Stainless
234181601
$0.55
36
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
37
Loctite 243, 10 ml
293800060
$21.49
38
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
39
HOLDER CUP, BLACK - Call your local BRP dealership
204072216
Unavailable
40
Silicone Sealant 51388, 300 ml
296000309
$36.99
41
Coaming Box Ass'y
204073306
Unavailable
42
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership
250000090
Unavailable
43
BOX-COAMING/PORT - Call your local BRP dealership
204073302
Unavailable
44
FASCIA-COAMING/PORT - Call your local BRP dealership
204073305
Unavailable
45
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership
202000203
Unavailable
46
Nylon Bushing
204130223
Unavailable
47
STERN STORAGE CARPET - Call your local BRP dealership
204072944
Unavailable
