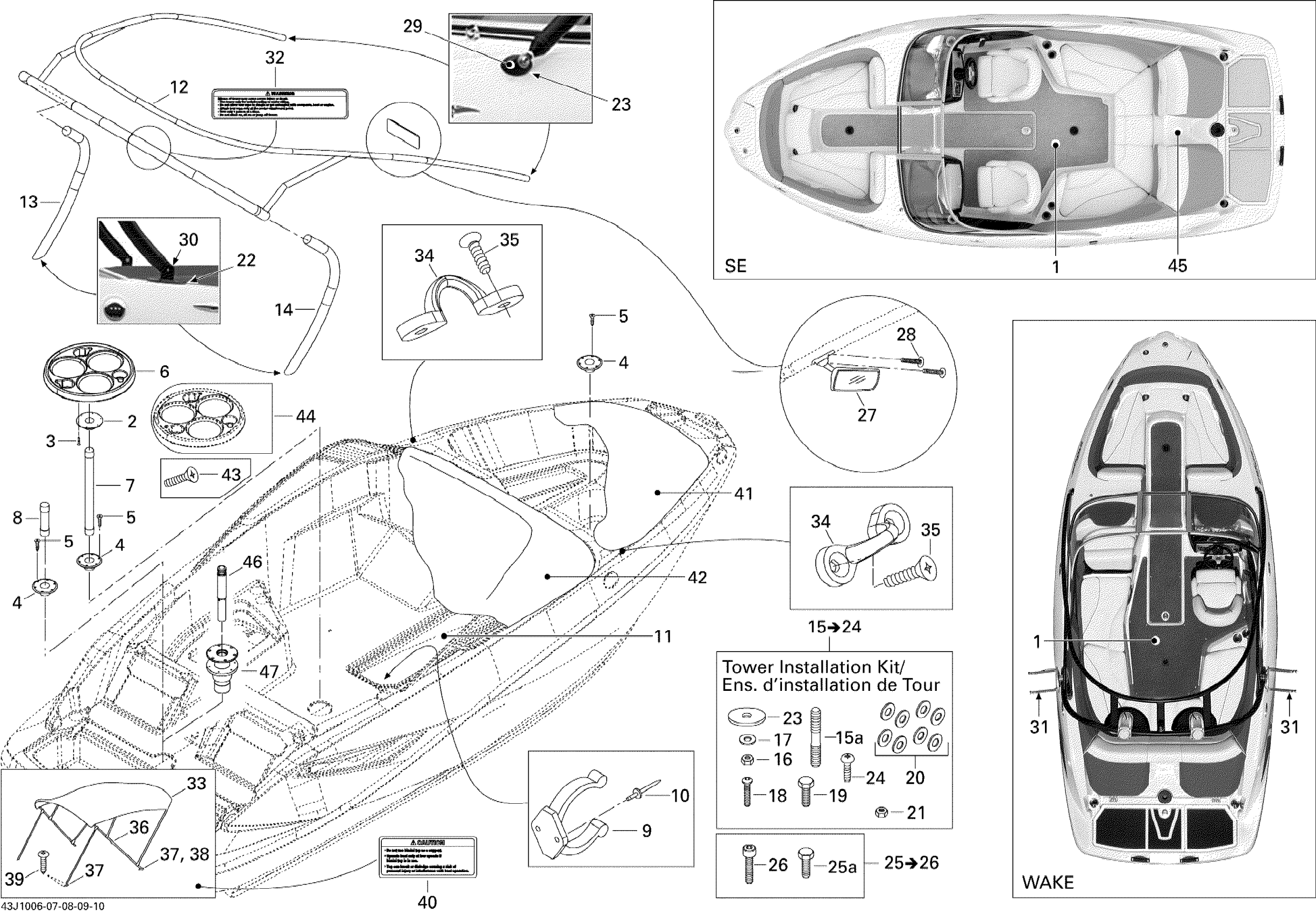

Sea-doo 210 Wake with Tower, 2x215 1503SCIC ETC, 2010 09- Tower And Bimini Top Diagram

#

Description
Price

1

Cockpit Carpet

269800060

Unavailable

2

TABLE MOUNT - Call your local BRP dealership | Challenger S

204071315

Unavailable

3

TAPPING SCREW M5 X 19 - Call your local BRP dealership | Challenger S

209951960

Unavailable

4

TABLE BASE - Call your local BRP dealership

204071209

Unavailable

5

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

6

COCKPIT TABLE - Call your local BRP dealership | Challenger S

204073212

Unavailable

7

TABLE POST, LARGE - Call your local BRP dealership | Challenger S

204070634

Unavailable

8

TABLE POST, SMALL - Call your local BRP dealership

269800027

Unavailable

9

POLE CLIP - Call your local BRP dealership | Challenger S

204070342

Unavailable

10

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

11

Ski Locker Carpet

264000058

Unavailable

12

Tower Upper, Wake

204950205

Unavailable

13

Tower Lower Ass'y, Port

269800063

Unavailable

14

TOWER LOWER ASS'Y, STARBOARD - Call your local BRP dealership

269800064

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

15a

Threaded Stud

204100152

Unavailable

16

LOCK NUT 1/2? - Call your local BRP dealership

204100131

Unavailable

17

FENDER WASHER - Call your local BRP dealership

204100132

Unavailable

18

SCREW-BUTTON HD.CAP 1/2-13 X 1.5 SS - Call your local BRP dealership

204100242

Unavailable

19

HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership

204100014

Unavailable

20

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

21

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

22

REAR GASKET - Call your local BRP dealership

204130273

Unavailable

23

Front Gasket

204130272

Unavailable

24

PHILLIP HEAD SCREW 8-18 X 1 - Call your local BRP dealership

204100240

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

25a

HEX. SCREW 3/8 X 1-1/2 - Call your local BRP dealership

204100135

Unavailable

26

HEX. SOCKET SCREW FLATE HEAD 3/8-16 - Call your local BRP dealership

204100252

Unavailable

27

SKI MIRROR - Call your local BRP dealership This part replaces 204071420.

295100386

Unavailable

28

PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership

204100129

Unavailable

29

Black, Front Tower Support

204950218

Unavailable

30

Rear Tower Support, Black

269800128

Unavailable

31

WAKEBOARD RACK - Call your local BRP dealership

204950147

Unavailable

32

WARNING LABEL, TOWER - Call your local BRP dealership | With Tower

204902068

Unavailable

33

BIMINI TOP ASS'Y, RED - Call your local BRP dealership

204950227

Unavailable

34

STRAP EYE - Call your local BRP dealership

204071845

Unavailable

35

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

36

BIMINI POST - Call your local BRP dealership

204950033

Unavailable

37

BIMINI BASE - Call your local BRP dealership

204950034

Unavailable

38

BIMINI SPACER - Call your local BRP dealership

204950031

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

CAUTION LABEL, BIMINI TOP - Call your local BRP dealership

204901331

Unavailable

41

Cover Bow | Black Model And Wake

280000482

Unavailable

42

Cockpit Cover | Black Model With Tower

280000483

Unavailable

43

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

44

BAG-TABLE/OVAL - Call your local BRP dealership

269800191

Unavailable

45

REAR COVER HELM - Call your local BRP dealership

269800126

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable
