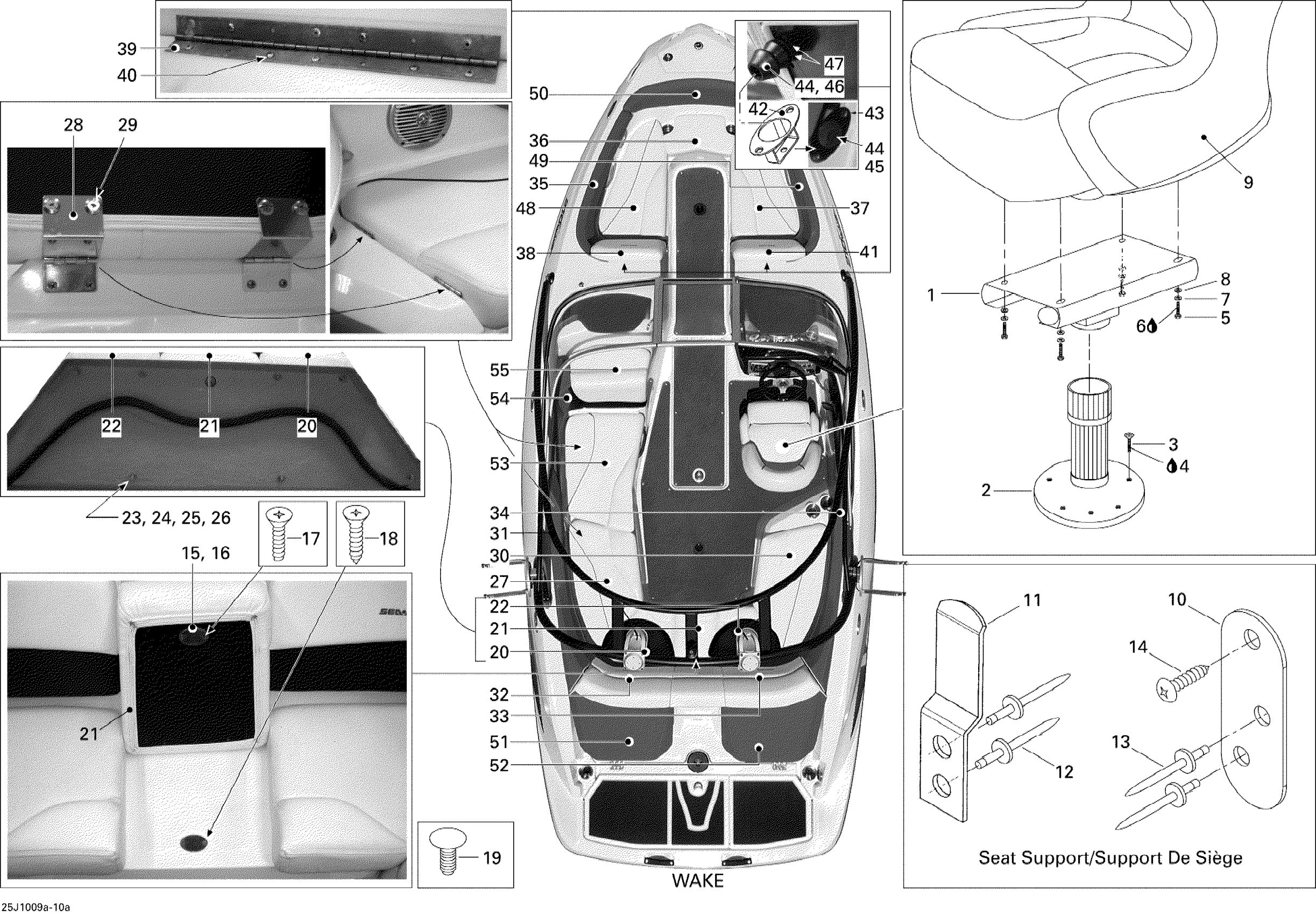

Sea-doo 210 Wake with Tower, 2x215 1503SCIC ETC, 2010 09- Seat 1 Diagram
#
1
SLIDE AND SWIVEL SEAT BASE - Call your local BRP dealership
204613742
Unavailable
2
SEAT PEDESTAL - Call your local BRP dealership
269001903
Unavailable
3
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership
204100201
Unavailable
4
Loctite 243, 10 ml
293800060
$21.49
5
TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership
204100134
Unavailable
6
Loctite 243, 10 ml
293800060
$21.49
7
Lock Washer 1/4”
211200025
$1.29
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
Bucket Seat
269001767
Unavailable
10
SEAT SUPPORT - Call your local BRP dealership
269001696
Unavailable
11
SEAT SUPPORT - Call your local BRP dealership
269001695
Unavailable
12
Pop Rivet 3/16"
293150043
$2.09
13
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
14
Phillips Screw #8 X 1/2”
204100030
Unavailable
15
SPACER MAGNET 1/8'' - Call your local BRP dealership
204130219
Unavailable
16
MAGNETIC CATCH ASS'Y - Call your local BRP dealership
204614513
Unavailable
17
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
18
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
19
Not Available As Spare Parts
XXX
Unavailable
20
REAR CUSHION ASS'Y, PORT SIDE - Call your local BRP dealership
269002142
Unavailable
21
Rear Center Cushion Ass'y
269001792
Unavailable
22
Rear Cushion Ass'y, Starboard
269001794
Unavailable
23
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
24
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
25
Flat Washer 8 mm, Stainless
234082600
$2.43
26
Plastic Cap, White
204130008
Unavailable
27
Lateral Cushion Ass'y, Port
269001772
Unavailable
28
HINGE, 90 - Call your local BRP dealership
269001590
Unavailable
29
SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership
204100095
Unavailable
30
WRAP AROUND CUSHION ASS'Y, STARBOARD - Call your local BRP dealership
269002146
Unavailable
31
REAR LATERAL BACKREST ASS'Y, ALAB PORT - Call your local BRP dealership
269002044
Unavailable
32
BACKREST ASSY/REAR-PORT - Call your local BRP dealership This part replaces 269002253.
269002722
Unavailable
33
BACKREST ASSY/REAR-STBD - Call your local BRP dealership This part replaces 269002254.
269002723
Unavailable
34
REAR LATERAL BACKREST ASS'Y, ALAB, STARB - Call your local BRP dealership
269002046
Unavailable
35
Front Lateral Backrest Ass'y, Port
269001807
Unavailable
36
FRONT CENTER CUSHION ASS'Y, BOW - Call your local BRP dealership | SE
269002565
Unavailable
37
Front Lateral Cushion Ass'y, Starboard
269001811
Unavailable
38
BACKREST ACCESS DOOR, PORT - Call your local BRP dealership
269002259
Unavailable
39
Hinge
204613980
Unavailable
40
Pop Rivet 3/16"
293150008
$0.50
41
BACKREST ACCESS DOOR, STARBOARD - Call your local BRP dealership
269002260
Unavailable
42
HOLDER - Call your local BRP dealership
204614762
Unavailable
43
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
44
HOLDER DOOR ASS'Y - Call your local BRP dealership
269002153
Unavailable
45
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership
204100122
Unavailable
46
SCREW-HEX.HD.MACHINE #10 X 1 - Call your local BRP dealership
204100236
Unavailable
47
FLAT WASHER - Call your local BRP dealership
211200033
Unavailable
48
FRONT LATERAL CUSHION, PORT SIDE - Call your local BRP dealership
269002062
Unavailable
49
FRONT LATERAL BACKREST ASS'Y, ALAB., STA - Call your local BRP dealership
269002064
Unavailable
50
FRONT CENTER BACKREST, ALABASTER - Call your local BRP dealership
269002066
Unavailable
51
SUNDECK CUSHION, PORT - Call your local BRP dealership
269002264
Unavailable
52
SUNDECK CUSHION, STARBOARD - Call your local BRP dealership
269002266
Unavailable
53
CUSHION ASS'Y, SPOTTER - Call your local BRP dealership
269002158
Unavailable
54
BACKREST SPOTTER, PORT - Call your local BRP dealership
269001785
Unavailable
55
STORAGE BACKREST SPOTTER, PORT - Call your local BRP dealership
269001780
Unavailable
