- 210 Wake with Tower, 2x215 1503SCIC ETC, 2010
09- Body And Accessories 2

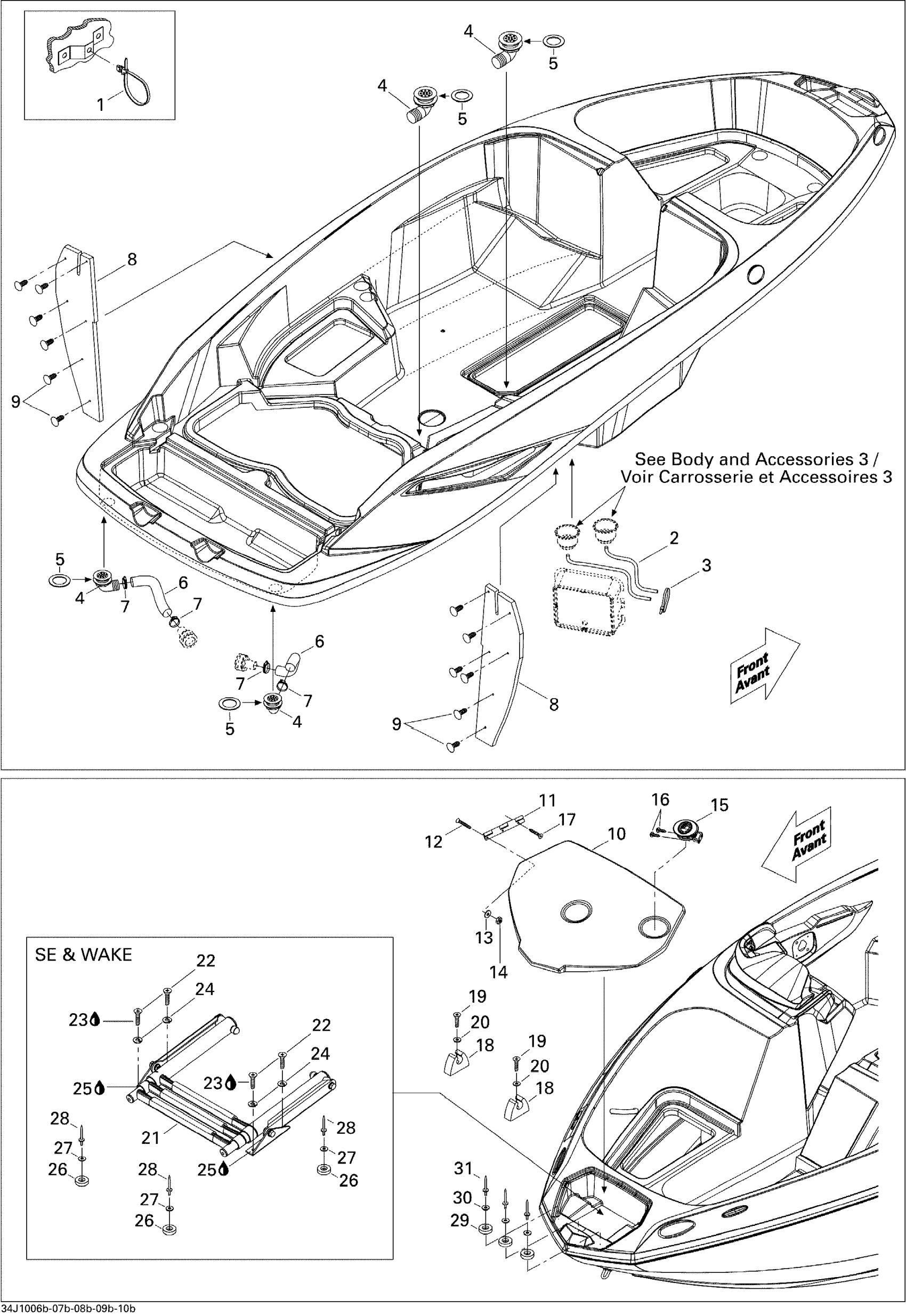

Sea-doo 210 Wake with Tower, 2x215 1503SCIC ETC, 2010 09- Body And Accessories 2 Diagram
#
Description
Price
1
TIE RAP WITH DART - Call your local BRP dealership
204130098
Unavailable
2
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
3
Tie Wrap 142 mm
293750002
$1.25
4
DRAIN FITTING - Call your local BRP dealership
204073301
Unavailable
5
GASKET - Call your local BRP dealership
292800106
Unavailable
6
HOSE 1-1/2, REINFORCED - Call your local BRP dealership
262000072
Unavailable
7
Norma Clamp
293650074
$17.05
8
FOAM/ S-WALL SEAL - Call your local BRP dealership
291003045
Unavailable
9
Black, Dart
293730006
$0.99
10
ANCHOR COVER - Call your local BRP dealership This part replaces 291003716.
291003176
Unavailable
11
HINGE - Call your local BRP dealership
291002974
Unavailable
12
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
13
Flat Washer 4 mm
234040600
$0.55
14
Elastic Stop Nut M4
232541600
$1.15
15
Stainless Latch
204072838
$144.99
16
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
17
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
18
Pole Support
291000642
Unavailable
19
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
20
Flat Washer 4 mm, Stainless
234041600
$1.15
21
LADDER, 3 STEPS - Call your local BRP dealership
204071530
Unavailable
22
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
208663060
Unavailable
23
Loctite 243, 10 ml
293800060
$21.49
24
Lock Washer Helical M6
234161601
$1.15
25
Silicone Sealant 51388, 300 ml
296000309
$36.99
26
BUMPER PAD - Call your local BRP dealership
204073815
Unavailable
27
Flat Washer 4 mm, Stainless
234041600
$1.15
28
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
29
BUMPER PAD - Call your local BRP dealership
204073815
Unavailable
30
Flat Washer 4 mm, Stainless
234041600
$1.15
31
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
